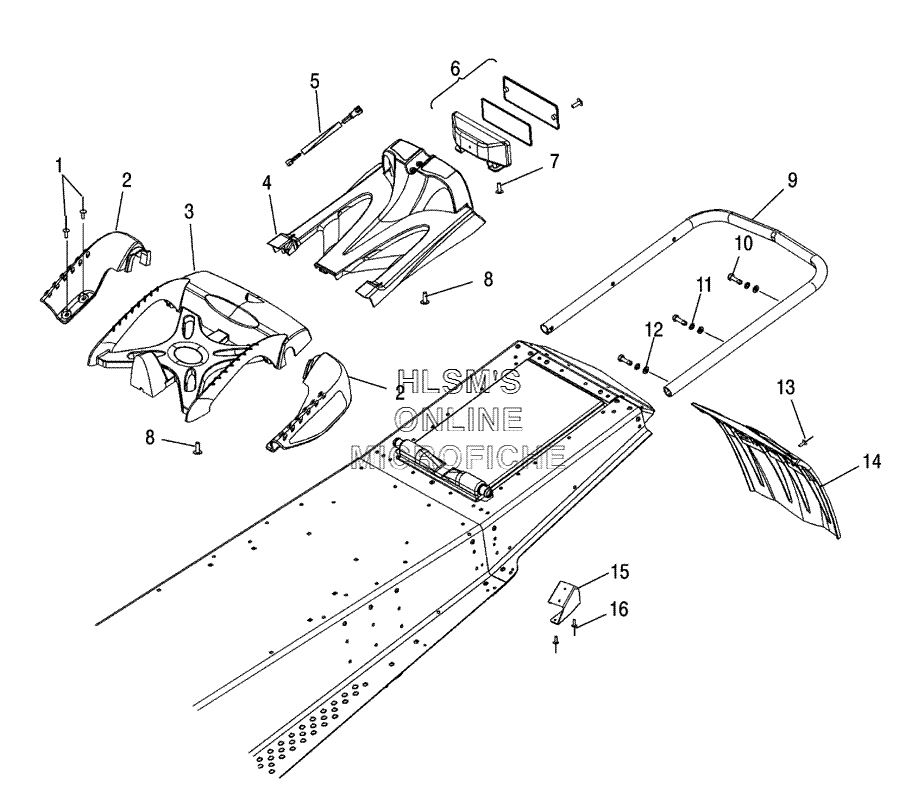

CHASIS - REAR для Polaris 900 RMK 159'' (S06PM8DS) - 2006 года выпуска`
-
№АртикулНазвание
-
17621467 RIVET, BLINDRIVET, BLIND
-
25435566-070 COVER GRIPPER, LONG (BLACK/LEFT) (159/166)COVER GRIPPER, LONG (BLACK/LEFT) (159/166)
-
25435567-070 COVER GRIPPER, LONG (BLACK/RIGHT) (159/166)COVER GRIPPER, LONG (BLACK/RIGHT) (159/166)
-
35435371-070 RACK REAR, BASIC (BLACK) (159/166)RACK REAR, BASIC (BLACK) (159/166)
-
42632984-070 COVER, CLOSEOFF COOLER (159/166)COVER, CLOSEOFF COOLER (159/166)
-
52410543 HARNESS TAILLIGHTHARNESS TAILLIGHT
-
62410544 TAILLIGHT ASSYTAILLIGHT ASSY
-
64032014 LENSLENS
-
64030043 BULBBULB
-
64032015 GASKETGASKET
-
67518019 SCREW (BLACK)SCREW (BLACK)
-
77512026 SCREWSCREW
-
87518158 SCREWSCREW
-
92633013-309 BUMPER, LONG, NATURAL ASSY (REAR) (159/166)BUMPER, LONG, NATURAL ASSY (REAR) (159/166)
-
107517298 SCREWSCREW
-
117552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127558301 WASHER, FLATWASHER, FLAT
-
137621472 RIVETRIVET
-
145434954-1038 FLAP SNOW (BLACK/WHITE)FLAP SNOW (BLACK/WHITE)
-
155248576 BRACKET GRIPPER COVER, LONG (LEFT) (159/166)BRACKET GRIPPER COVER, LONG (LEFT) (159/166)
-
155248577 BRACKET GRIPPER COVER, LONG (RIGHT) (159/166)BRACKET GRIPPER COVER, LONG (RIGHT) (159/166)
-
167661637 RIVET, INTERLOCKRIVET, INTERLOCK
