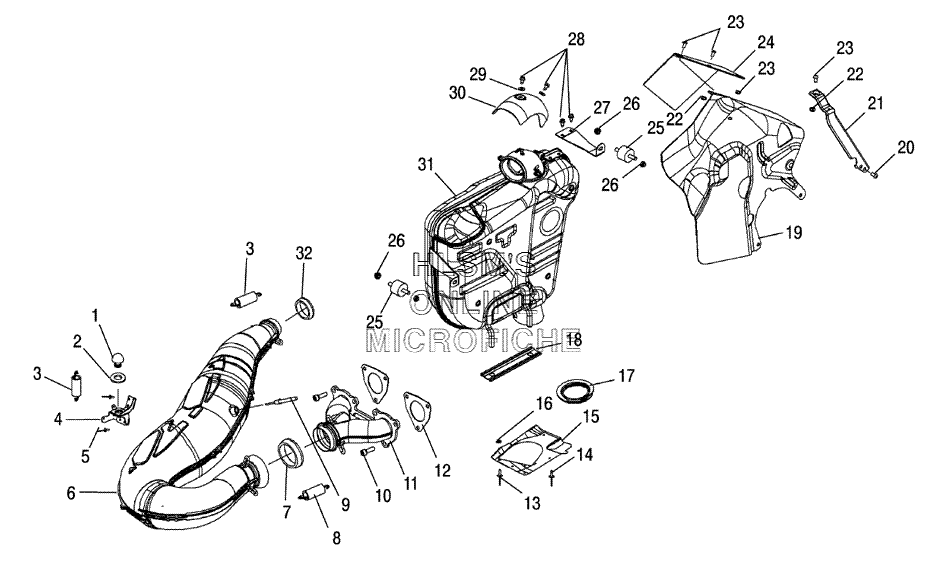

EXHAUST SYSTEM для Polaris 900 RMK 151'' (S06PL7DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5411576 DAMPENER VIBRATION WITH RIBS
    DAMPENER VIBRATION WITH RIBS
  • 2
    7556004 WASHER
    WASHER
  • 3
    7041687 SPRING
    SPRING
  • 4
    1261403 BRACKET CHASSIS TUNED PIPE
    BRACKET CHASSIS TUNED PIPE
  • 5
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 6
    1261513 TUNED PIPE ASSY
    TUNED PIPE ASSY
  • 6
    7080808 CLAMP WORM DRIVE (.44WX5.5 DIA)
    CLAMP WORM DRIVE (.44WX5.5 DIA)
  • 6
    7080811 CLAMP WORM DRIVE (.44WX6.5 DIA)
    CLAMP WORM DRIVE (.44WX6.5 DIA)
  • 6
    7080812 CLAMP, WORM DRIVE (.44 X 3.75)
    CLAMP, WORM DRIVE (.44 X 3.75)
  • 6
    7081197 CLAMP WORM DRIVE (.44WX7.0 DIA)
    CLAMP WORM DRIVE (.44WX7.0 DIA)
  • 6
    5812651 MATTE TUNED PIPE (TOP)
    MATTE TUNED PIPE (TOP)
  • 6
    5812652 MATTE TUNED PIPE (BOTTOM)
    MATTE TUNED PIPE (BOTTOM)
  • 6
    5249145 COVER TUNED PIPE (BOTTOM)
    COVER TUNED PIPE (BOTTOM)
  • 6
    5247251 COVER TUNED PIPE (TOP)
    COVER TUNED PIPE (TOP)
  • 6
    5249262 COVER TUNED PIPE (TOP/FRONT)
    COVER TUNED PIPE (TOP/FRONT)
  • 6
    5249263 COVER TUNED PIPE (BOTTOM/FRONT)
    COVER TUNED PIPE (BOTTOM/FRONT)
  • 6
    5812825 MATTE TUNED PIPE (FRONT)
    MATTE TUNED PIPE (FRONT)
  • 6
    7080739 CLAMP WORM DRIVE (.44X3.13 DIA)
    CLAMP WORM DRIVE (.44X3.13 DIA)
  • 6
    7080749 CLAMP, WORM DRIVE
    CLAMP, WORM DRIVE
  • 7
    3610113 SEAL EXHAUST, SOCKET
    SEAL EXHAUST, SOCKET
  • 8
    7042332 SPRING, S.S.
    SPRING, S.S.
  • 9
    4010528 SENSOR EXHAUST TEMP, P100J BW
    SENSOR EXHAUST TEMP, P100J BW
  • 10
    7517322 SCREW
    SCREW
  • 11
    1261384-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 12
    5812436 GASKET EXHAUST
    GASKET EXHAUST
  • 13
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 14
    7661136 RIVET
    RIVET
  • 15
    5248422 DEFLECTOR EXHAUST
    DEFLECTOR EXHAUST
  • 16
    7555792 WASHER
    WASHER
  • 17
    5412736 BOOT OUTLET, RESONATOR
    BOOT OUTLET, RESONATOR
  • 18
    5412425 GROMMET RESONATOR, SUPPORT
    GROMMET RESONATOR, SUPPORT
  • 19
    5249216 DUCT HEAT
    DUCT HEAT
  • 20
    7512232 BOLT
    BOLT
  • 21
    5249215 BRACKET RECOIL HOUSING
    BRACKET RECOIL HOUSING
  • 22
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 23
    7547298 NUT INVERT
    NUT INVERT
  • 24
    5249307 SHIELD HEAT, RMK
    SHIELD HEAT, RMK
  • 25
    3021733 MOUNT RUBBER, ISOLATOR
    MOUNT RUBBER, ISOLATOR
  • 26
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 27
    5249476-029 BRACKET CHASSIS RESONATOR (BLACK)
    BRACKET CHASSIS RESONATOR (BLACK)
  • 28
    7512208 SCREW
    SCREW
  • 29
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 30
    5248371-029 SHIELD RESONATOR INLET (BLACK)
    SHIELD RESONATOR INLET (BLACK)
  • 31
    1261484 RESONATOR ASSY (INCL. 30)
    RESONATOR ASSY (INCL. 30)
  • 31
    5248955 COVER RESONATOR (LEFT)
    COVER RESONATOR (LEFT)
  • 31
    5249238 COVER RESONATOR (RIGHT)
    COVER RESONATOR (RIGHT)
  • 31
    5812787 MATTE RESONATOR (LEFT)
    MATTE RESONATOR (LEFT)
  • 31
    5812846 MATTE RESONATOR (RIGHT)
    MATTE RESONATOR (RIGHT)
  • 31
    5812667 MATTE RESONATOR INLET
    MATTE RESONATOR INLET
  • 31
    7512208 SCREW
    SCREW
  • 31
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 31
    7517299 SCREW
    SCREW
  • 32
    3610114 SEAL EXHAUST
    SEAL EXHAUST
