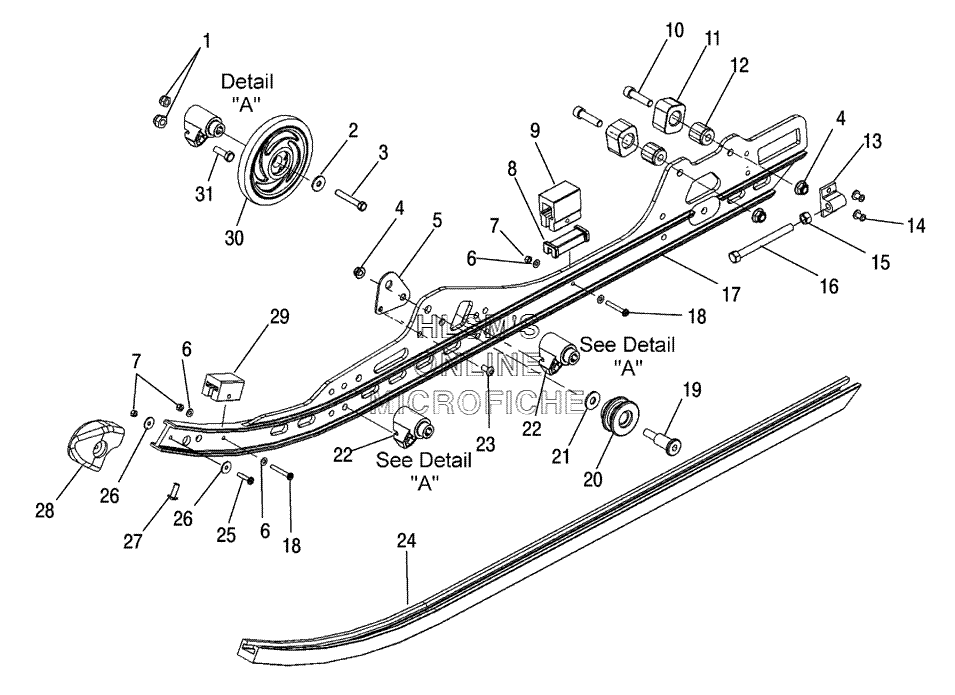

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 700 Fusion (S06MP7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27556179 WASHER SPRINGWASHER SPRING
-
37515346 SCREWSCREW
-
47547263 NUT NYLOKNUT NYLOK
-
55248414 BRACKET RAIL REINFORCEMENTBRACKET RAIL REINFORCEMENT
-
67555783 WASHER, FLATWASHER, FLAT
-
77541925 NUT, NYLOKNUT, NYLOK
-
85432946 LINER, BUMPERLINER, BUMPER
-
95521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
107515537 BOLTBOLT
-
115410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
125131113 MOUNT, BUMPERMOUNT, BUMPER
-
135130530 BLOCK IDLER BOLT ADJUSTBLOCK IDLER BOLT ADJUST
-
147621501 RIVETRIVET
-
157542404 NUTNUT
-
167517227 SCREWSCREW
-
171542130 RAIL ASSY, 121 BASIC (LEFT) (INCL. 6 9, 11, 13, 14, 25, 26, 28, 29)RAIL ASSY, 121 BASIC (LEFT) (INCL. 6 9, 11, 13, 14, 25, 26, 28, 29)
-
171542131 RAIL ASSY, 121 BASIC (RIGHT) (INCL. 6 9, 11, 13, 14, 25, 26, 28, 29)RAIL ASSY, 121 BASIC (RIGHT) (INCL. 6 9, 11, 13, 14, 25, 26, 28, 29)
-
187510504 SCREWSCREW
-
197518359 SCREWSCREW
-
205432982 ROLLER, SPRING, SQUAREROLLER, SPRING, SQUARE
-
217555983 WASHER, FLATWASHER, FLAT
-
225631446 BLOCK WHEEL MOUNTBLOCK WHEEL MOUNT
-
237661845 RIVETRIVET
-
245521632 SLIDER, SERVICE BASIC (.45/61'')SLIDER, SERVICE BASIC (.45/61'')
-
257518335 BOLTBOLT
-
267555792 WASHERWASHER
-
277515199 SCREWSCREW
-
285435527 CAP RAIL TIP, UHMWCAP RAIL TIP, UHMW
-
295521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
301590387-293 WHEEL, SCRL ASSY (5.62) (RED)WHEEL, SCRL ASSY (5.62) (RED)
-
301590387-513 WHEEL, SCRLD ASSY (5.62, SPRSN)WHEEL, SCRLD ASSY (5.62, SPRSN)
-
303514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
307710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
317515317 BOLTBOLT
