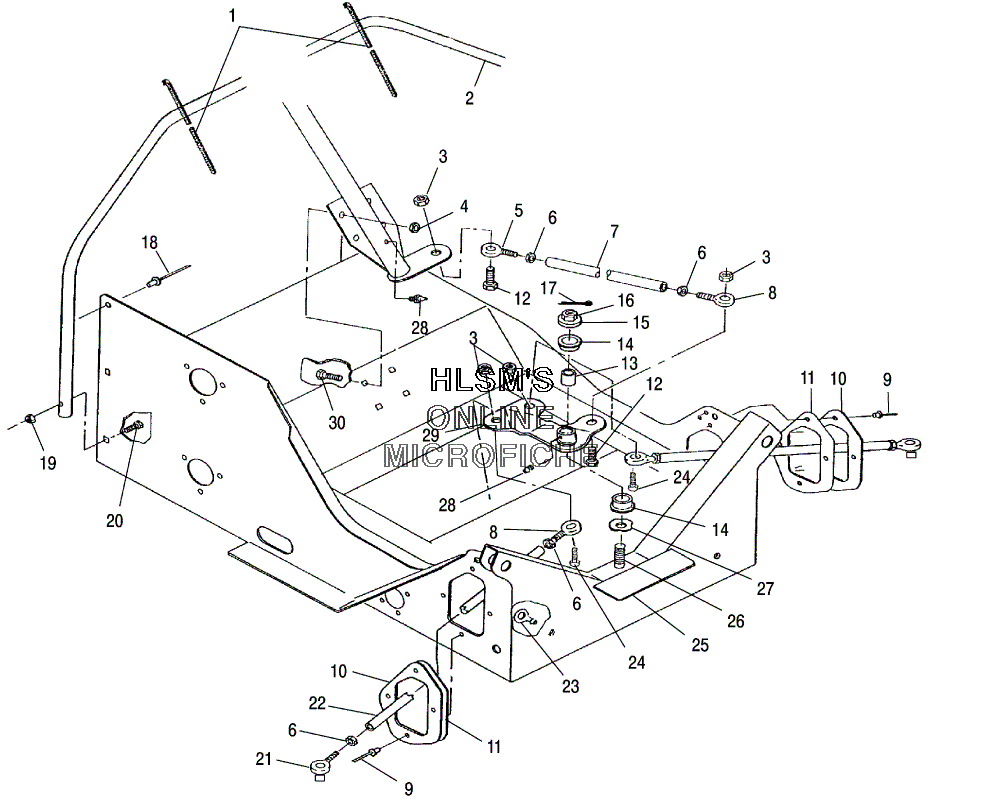

STEERING ASSEMBLY для Polaris WIDETRAK LX (S05SU4BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE RELEASABLE, 5 1/2"
    CABLE TIE RELEASABLE, 5 1/2"
  • 2
    1012729-067 WELD STEER HOOP (BLACK)
    WELD STEER HOOP (BLACK)
  • 3
    7542403 NUT LOCK
    NUT LOCK
  • 4
    7542303 NUT FLEX LOCK
    NUT FLEX LOCK
  • 5
    7060167 ROD END (RIGHT)
    ROD END (RIGHT)
  • 6
    7542424 NUT (LEFT)
    NUT (LEFT)
  • 6
    7542401 NUT, HEXAGON (RIGHT/RIGHT)
    NUT, HEXAGON (RIGHT/RIGHT)
  • 7
    5334113-067 ROD DRAG LINK STEEL (BLACK)
    ROD DRAG LINK STEEL (BLACK)
  • 8
    7060166 ROD END (LEFT)
    ROD END (LEFT)
  • 9
    7621323 POP RIVET
    POP RIVET
  • 10
    5222942-067 PLATE, BOOTSEAL (BLACK)
    PLATE, BOOTSEAL (BLACK)
  • 11
    5410761 BOOT, TIEROD
    BOOT, TIEROD
  • 12
    7515528 BOLT
    BOLT
  • 13
    5010463 BUSHING
    BUSHING
  • 14
    3563907 BUSHING
    BUSHING
  • 15
    7555721 WASHER
    WASHER
  • 16
    7542703 NUT FLEXOCK,
    NUT FLEXOCK,
  • 17
    7661203 PIN, COTTER
    PIN, COTTER
  • 18
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 19
    7542103 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 20
    7512275 BOLT CARRIAGE
    BOLT CARRIAGE
  • 21
    7060174 ROD END, 3/8 HI-ANGLE (RIGHT)
    ROD END, 3/8 HI-ANGLE (RIGHT)
  • 22
    5020878 ROD TIE
    ROD TIE
  • 23
    4020139 CLIP (ROSEBUD)
    CLIP (ROSEBUD)
  • 24
    7515540 BOLT
    BOLT
  • 25
    5630563 BLOCK, STEERING (CAST)
    BLOCK, STEERING (CAST)
  • 26
    7512682 BOLT
    BOLT
  • 27
    7555735 WASHER, WAVE
    WASHER, WAVE
  • 28
    7080433 FITTING, LUBRICATION THREADED
    FITTING, LUBRICATION THREADED
  • 29
    1822217 STEERING ASSY, CENTER (INCL. 14, 28)
    STEERING ASSY, CENTER (INCL. 14, 28)
  • 30
    7517428 BOLT
    BOLT
