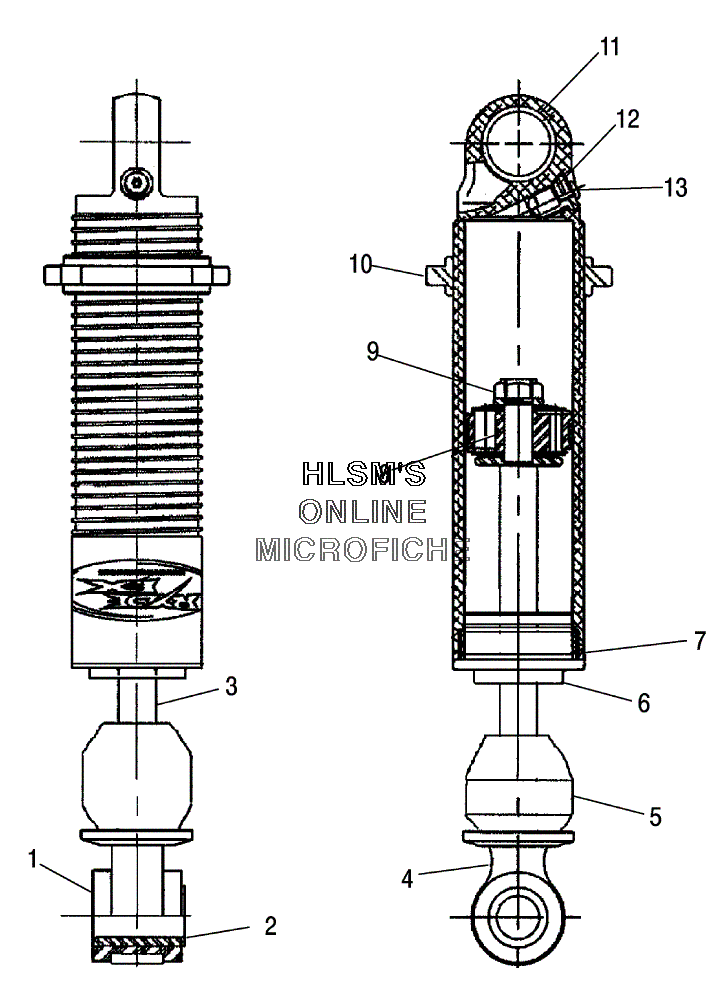

SUSPENSION - FOX SHOCK - REAR TRACK для Polaris TRAIL TOURING (S05NU5BS) - 2005 года выпуска`
-
№АртикулНазвание
-
11700075 BUSHINGBUSHING
-
21700069 SLEEVESLEEVE
-
31700215 SHAFTSHAFT
-
41700011 MOUNT (UPPER)MOUNT (UPPER)
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
71700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
81700100 BANDED PISTON .060" ORIFCE ASSYBANDED PISTON .060" ORIFCE ASSY
-
81700031 PISTON WEAR BANDPISTON WEAR BAND
-
81700077 TOP OUT WASHERTOP OUT WASHER
-
81700078 BACK UP WASHERBACK UP WASHER
-
91700216 NUTNUT
-
101700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
113514450 BEARING PLAINBEARING PLAIN
-
121700056 VALVE SCREWVALVE SCREW
-
131700184 PRESS VALVE ASSYPRESS VALVE ASSY
-
131700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
137042141 SHOCK TRACK (REAR)SHOCK TRACK (REAR)
