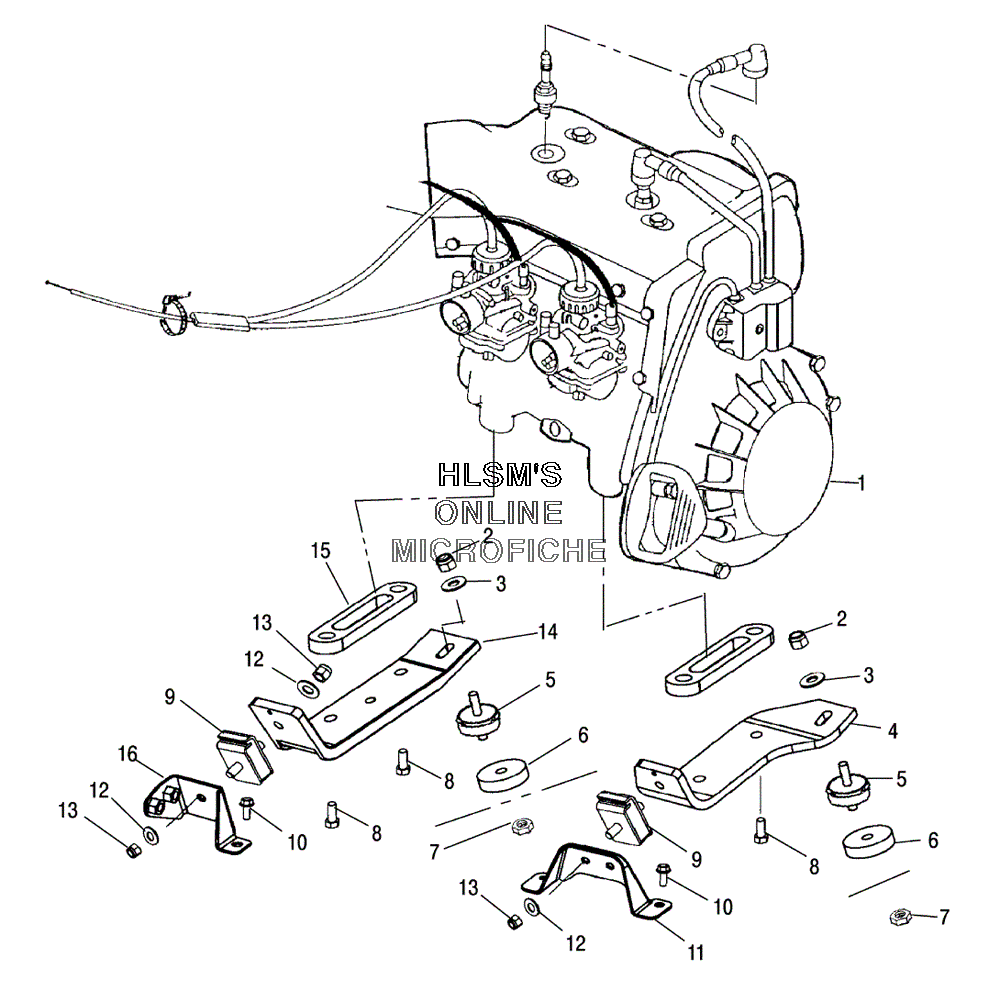

ENGINE MOUNTING W/ SHORT BLOCK для Polaris TRAIL TOURING (S05NU5BS) - 2005 года выпуска`
-
№АртикулНазвание
-
13088822 ENGINE SHORT BLOCK SEE NOTE:ENGINE SHORT BLOCK SEE NOTE:
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
53021220 MOUNT ENGINEMOUNT ENGINE
-
65245117 SPACER ENGINE MOUNTSPACER ENGINE MOUNT
-
77547180 NUT FLANGED, 3/8-16 NYLON ZNUT FLANGED, 3/8-16 NYLON Z
-
87517399 SCREWSCREW
-
93021206 MOUNT ENGINE, 3/8-16 RECTMOUNT ENGINE, 3/8-16 RECT
-
107517854 SCREW SPEC YSCREW SPEC Y
-
115245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
127555806 WASHER, FLATWASHER, FLAT
-
137547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
145245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
155245020 SPACER ENGINESPACER ENGINE
-
161013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
