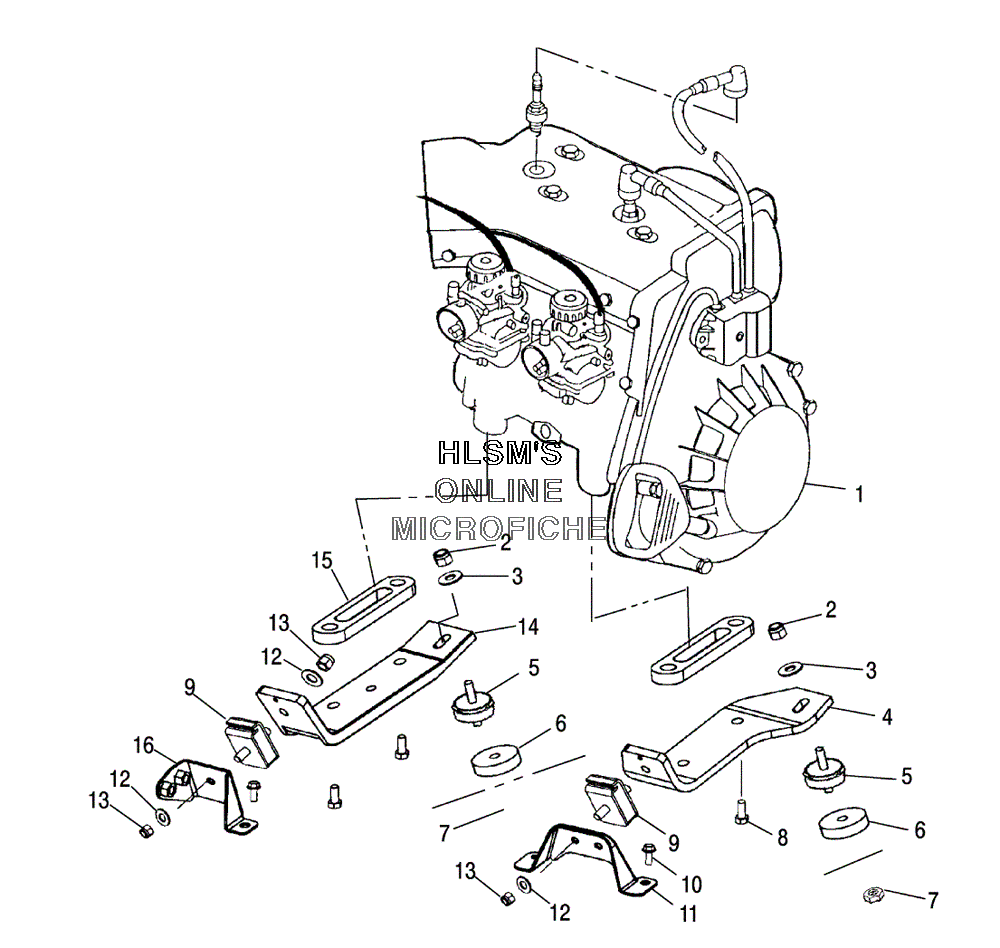

ENGINE MOUNTING W/ SHORT BLOCK для Polaris TRAIL RMK 136 (S05NJ5BS) - 2005 года выпуска`
-
№АртикулНазвание
-
13088822 ENGINEENGINE
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
53021220 MOUNT ENGINEMOUNT ENGINE
-
65245117 SPACER ENGINE MOUNTSPACER ENGINE MOUNT
-
77547180 NUT FLANGED NYLON ZNUT FLANGED NYLON Z
-
87517399 SCREWSCREW
-
93021206 MOUNT ENGINE, RECTMOUNT ENGINE, RECT
-
107517854 SCREW SPEC YSCREW SPEC Y
-
115245044 BRACKET ENGINE MOUNT FORMED (RIGHT)BRACKET ENGINE MOUNT FORMED (RIGHT)
-
127555806 WASHER, FLATWASHER, FLAT
-
137547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
145245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
155245020 SPACER ENGINE (.38)SPACER ENGINE (.38)
-
161013397 WELD ENGINE MOUNT BRACKET (LEFT)WELD ENGINE MOUNT BRACKET (LEFT)
Все узлы модели:
- AUTOMATIC ALTITUDE ADJUSTMENT
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS #1
- FRAME - CHASSIS #2
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY (1)
- NOSEPAN ASSEMBLY (2)
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING LINKAGE
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- SUSPENSION - SHOCK IFS
- TOOL KIT
- WINDSHIELD/GUAGES/HOOD RETAINER
