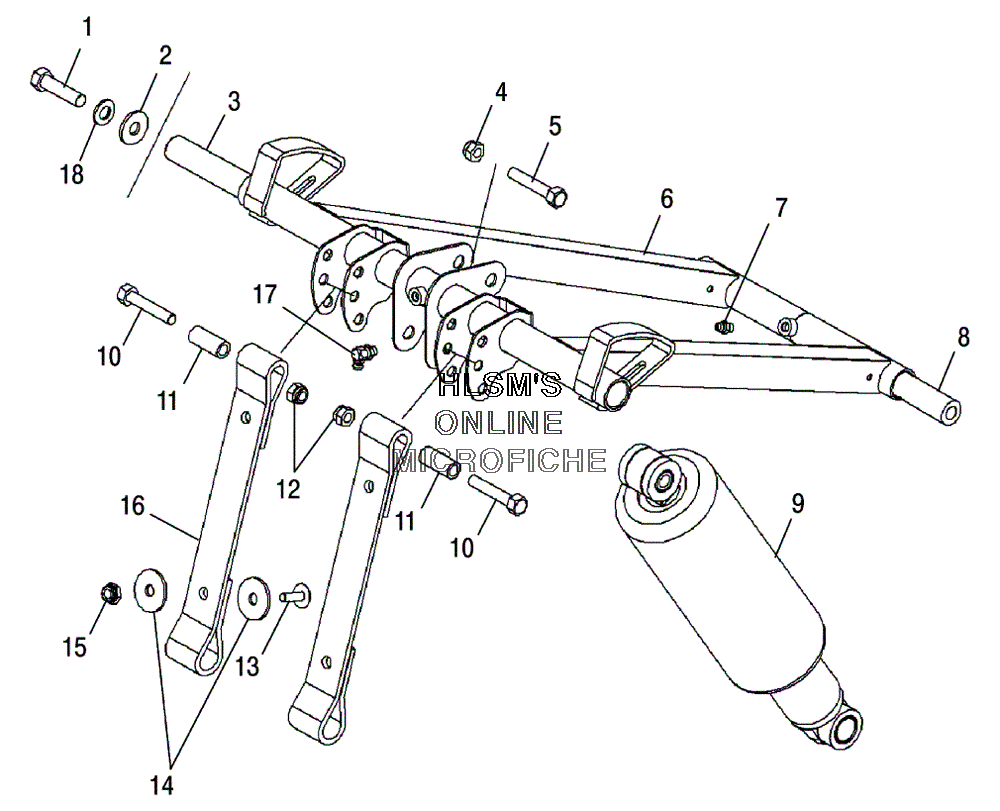

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 900 RMK (S05PL8) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7518005 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 2
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 3
    5133987 SHAFT
    SHAFT
  • 4
    7542411 NUT, FLEXLOC
    NUT, FLEXLOC
  • 5
    7512410 BOLT
    BOLT
  • 6
    1541962-385 FTA, NARROW (CLOUD SILVER)
    FTA, NARROW (CLOUD SILVER)
  • 7
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 8
    5334026 SHAFT ANODIZE
    SHAFT ANODIZE
  • 9
    7043048 SHOCK F/T, TWIN TUBE FX
    SHOCK F/T, TWIN TUBE FX
  • 9
    5245067 RETAINER SPRING GAB PLATED
    RETAINER SPRING GAB PLATED
  • 9
    5433503 SHIELD SPRING
    SHIELD SPRING
  • 9
    7042050-067 SPRING COMP
    SPRING COMP
  • 9
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 10
    7512329 BOLT
    BOLT
  • 11
    5333522 BUSHING
    BUSHING
  • 12
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 13
    7517313 SCREW
    SCREW
  • 14
    7556175 WASHER
    WASHER
  • 15
    7542344 NUT, NYLOK
    NUT, NYLOK
  • 16
    5412556 STRAP LIMITER
    STRAP LIMITER
  • 17
    7080510 FITTING, ZERK 90 DEGREE
    FITTING, ZERK 90 DEGREE
  • 18
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
