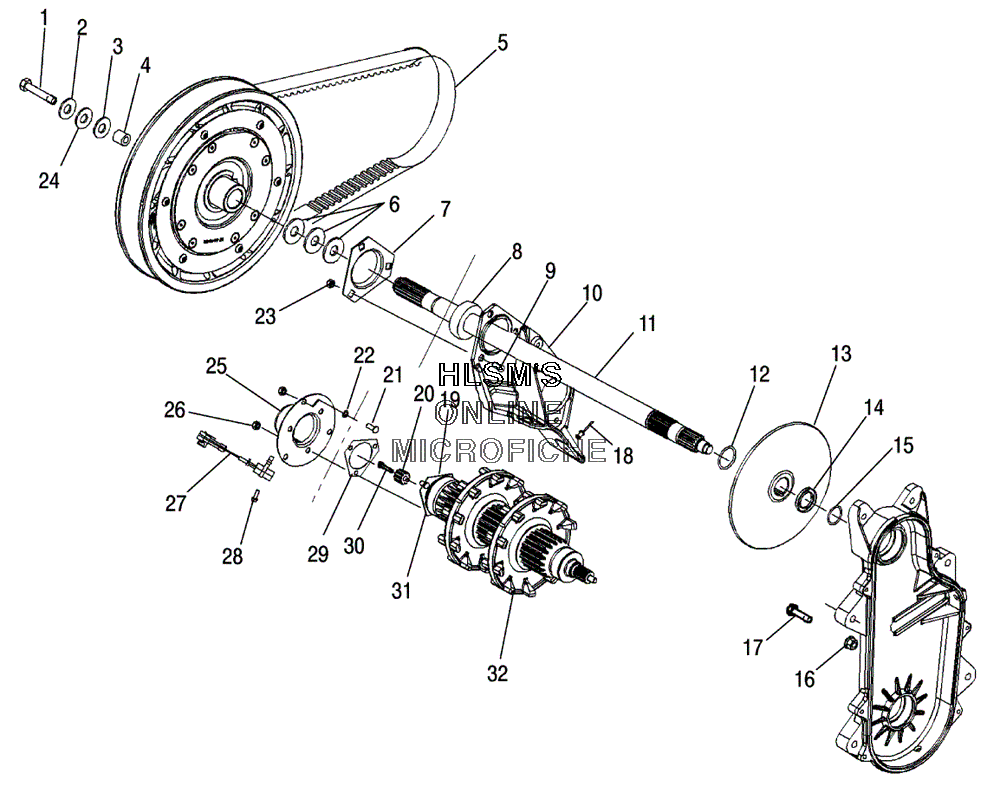

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 900 RMK 50th ANNIVERSARY (S05PL8) - 2005 года выпуска`
-
№АртикулНазвание
-
17517820 BOLT HEXAGON/LK-GR5-ZBOLT HEXAGON/LK-GR5-Z
-
27555701 WASHER, FLATWASHER, FLAT
-
37555957 WASHERWASHER
-
45134371 SPACER INPUT SHAFT (.875 OD)SPACER INPUT SHAFT (.875 OD)
-
53211080 BELT DRIVEBELT DRIVE
-
67555864 WASHERWASHER
-
67555917 WASHERWASHER
-
67556509 BUSHINGBUSHING
-
75247680 FLANGETTE .100 OFFSETFLANGETTE .100 OFFSET
-
83514352 BEARING SPHBEARING SPH
-
97512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
105134874 SUPPORT ENGINE MACH3/4 (LEFT/REAR)SUPPORT ENGINE MACH3/4 (LEFT/REAR)
-
111332279 JACKSHAFT ASSY SPLINE W/BEARING (INCL. 8)JACKSHAFT ASSY SPLINE W/BEARING (INCL. 8)
-
127710422 RING, RETAININGRING, RETAINING
-
132202842 FORGED DISC, KITFORGED DISC, KIT
-
145020588 SLEEVE, SEALSLEEVE, SEAL
-
155410613 O RINGO RING
-
167547180 NUT FLANGED NYLON-ZNUT FLANGED NYLON-Z
-
177518268 BOLT CARRIAGEBOLT CARRIAGE
-
187661130 RIVETRIVET
-
193514448 BEARING 25MM SPH OD LUBEBEARING 25MM SPH OD LUBE
-
205240013 WHEEL PICK UP, SPEEDOMETER (9T)WHEEL PICK UP, SPEEDOMETER (9T)
-
217518049 BOLT CARRIAGEBOLT CARRIAGE
-
227547030 PALNUTPALNUT
-
237542343 NUT, FLANGENUT, FLANGE
-
247555734 WASHER, FLATWASHER, FLAT
-
255246960 HOUSING DRIVE PICKUPHOUSING DRIVE PICKUP
-
267542324 NUT, NYLOKNUT, NYLOK
-
272410376 SENSOR SPEED PICKUPSENSOR SPEED PICKUP
-
287512232 BOLTBOLT
-
295811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
307516733 SCREWSCREW
-
311014299 FLANGETTE W/SCREWS ASSYFLANGETTE W/SCREWS ASSY
-
321590392 DRIVESHAFT TUBULAR ASSY (9T)DRIVESHAFT TUBULAR ASSY (9T)
