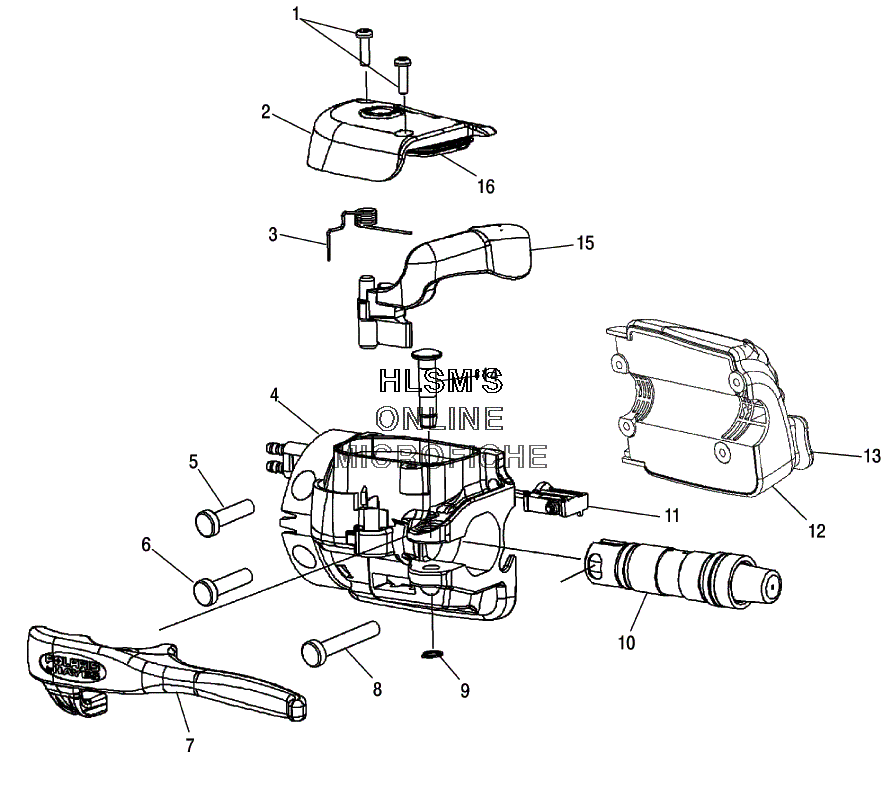

BRAKE - MASTER CYLINDER W/LEFT HAND CONTROL для Polaris 900 FUSION (S05MP8DSB) (STOCK B) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 KIT, COVER SCREW
    KIT, COVER SCREW
  • 2
    2202837 KIT-COVER ASM 4 #98-17061 (INCL. 1, 16)
    KIT-COVER ASM 4 #98-17061 (INCL. 1, 16)
  • 3
    2201250 KIT, PARK LEVER SPRING
    KIT, PARK LEVER SPRING
  • 4
    2202784 KIT-RESERVOIR, 98-15657 (INCL. 9, 14)
    KIT-RESERVOIR, 98-15657 (INCL. 9, 14)
  • 5
    7517441 SCREW, .75
    SCREW, .75
  • 6
    7512078 SCREW, 1.12
    SCREW, 1.12
  • 7
    2201943 KIT-LEVER, 3 NOTCH/PIN/RING (INCL. 9, 14)
    KIT-LEVER, 3 NOTCH/PIN/RING (INCL. 9, 14)
  • 8
    7517566 SCREW, 1.50
    SCREW, 1.50
  • 9
    2201945 KIT-SNAP RING
    KIT-SNAP RING
  • 10
    2202783 KIT-5/8'' CARTRIDGE 98-16193
    KIT-5/8'' CARTRIDGE 98-16193
  • 11
    2202786 KIT-STOPLIGHT SWITCH 98-16195
    KIT-STOPLIGHT SWITCH 98-16195
  • 12
    2010237 ASM-CONTROL, LEFT HAND, MFG
    ASM-CONTROL, LEFT HAND, MFG
  • 13
    5433291 BUTTON SWITCH HI/LO, LEFT HAND CONTROL
    BUTTON SWITCH HI/LO, LEFT HAND CONTROL
  • 14
    2201946 KIT-PIVOT PIN, ALUM W/SNAP RING (INCL. 9)
    KIT-PIVOT PIN, ALUM W/SNAP RING (INCL. 9)
  • 15
    2201251 KIT, PARK LEVER AND SPRING
    KIT, PARK LEVER AND SPRING
  • 2202785 KIT-FULL ASM MASTER CYLINDER 98 (INCL. 1-10)
    KIT-FULL ASM MASTER CYLINDER 98 (INCL. 1-10)
