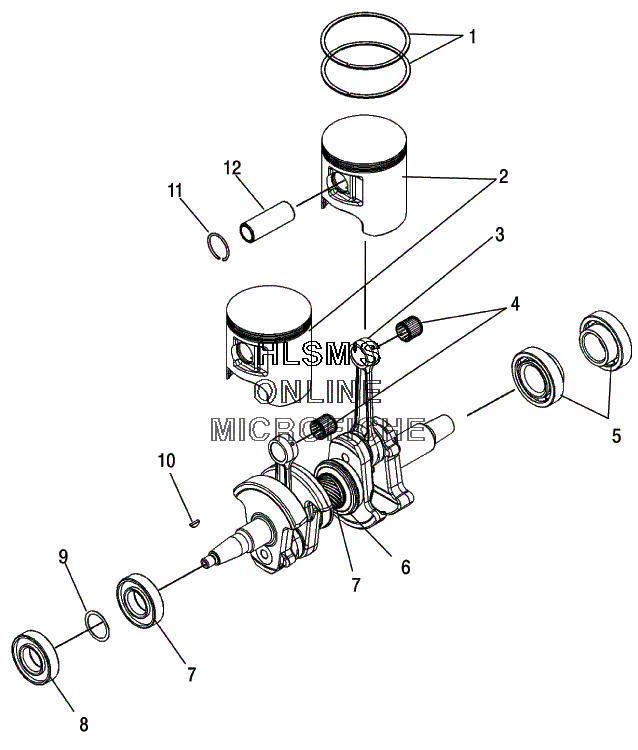

PISTON AND CRANKSHAFT для Polaris 900 FUSION (S05MP8DSA) (STOCK A) - 2005 года выпуска
-
№АртикулНазвание
-
12202809 KIT-PISTON RINGSKIT-PISTON RINGS
-
22202811 KIT-PISTON 86-86 (INCL. 1, 11, 12)KIT-PISTON 86-86 (INCL. 1, 11, 12)
-
32202952 KIT-CONN ROD (INCL. ROD, PIN, BEARING, WASHERS)KIT-CONN ROD (INCL. ROD, PIN, BEARING, WASHERS)
-
43514357 BEARING-17-22X27X25, PNPIN, KOYOBEARING-17-22X27X25, PNPIN, KOYO
-
53514444 BEARING-BALL, 40X80X18/31.5BEARING-BALL, 40X80X18/31.5
-
63514318 BEARING, BALLBEARING, BALL
-
73585503 BEARING, BALLBEARING, BALL
-
83514494 BEARING-BALL, 35X72X20BEARING-BALL, 35X72X20
-
97556338 BUSHING-35X44X.40MM-BBUSHING-35X44X.40MM-B
-
107721117 KEY, WOODRUFFKEY, WOODRUFF
-
113021179 CIRCLIP, PISTON, 22MMX1.6 (2)CIRCLIP, PISTON, 22MMX1.6 (2)
-
-2202808 KIT-CRANKSHAFT 866 LARGE TAPER (INCL. 5-9)KIT-CRANKSHAFT 866 LARGE TAPER (INCL. 5-9)
