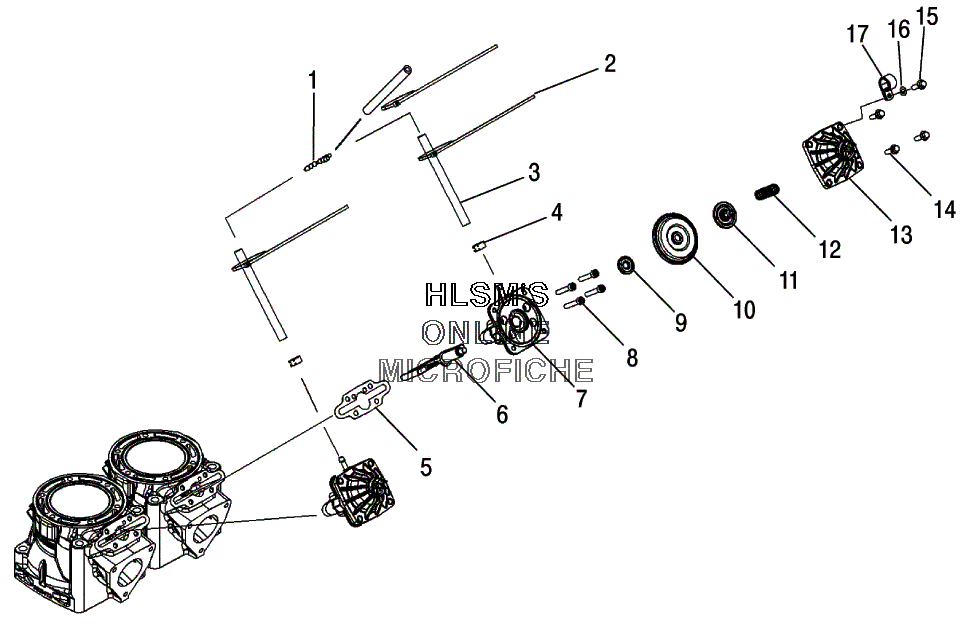

EXHAUST VALVE для Polaris 900 FUSION (S05MP8DS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7052075 FITTING, TEE
    FITTING, TEE
  • 2
    7080138 CABLE TIE
    CABLE TIE
  • 3
    8450040-600 LINE FUEL, 1/4 ID (600 CM.)
    LINE FUEL, 1/4 ID (600 CM.)
  • 4
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    5812700 GASKET-BASE EV
    GASKET-BASE EV
  • 6
    5134704 VALVE-GUILLOTINE, EXHAUST
    VALVE-GUILLOTINE, EXHAUST
  • 7
    1202885 BASE ASM, EXH VALVE
    BASE ASM, EXH VALVE
  • 8
    7517848 SCR-M6X1.0X35 SOC/CP-Y/D
    SCR-M6X1.0X35 SOC/CP-Y/D
  • 9
    5134812 WASHER-BELLOWS, EXH VALVE, STOP
    WASHER-BELLOWS, EXH VALVE, STOP
  • 10
    5410000 BELLOWS-EXH, RIBS
    BELLOWS-EXH, RIBS
  • 11
    5631687 CAP/NUT, BELLOWS-HC ANODIZED
    CAP/NUT, BELLOWS-HC ANODIZED
  • 12
    7041704-04 SPRING, PURPLE
    SPRING, PURPLE
  • 13
    1202640 ASM-HOUSING W/BUSHING
    ASM-HOUSING W/BUSHING
  • 14
    7516820 SCREW
    SCREW
  • 15
    7516822 SCREW
    SCREW
  • 16
    7558203 WASHER
    WASHER
  • 17
    7080717 CLAMP, WIRE/TUBE
    CLAMP, WIRE/TUBE
