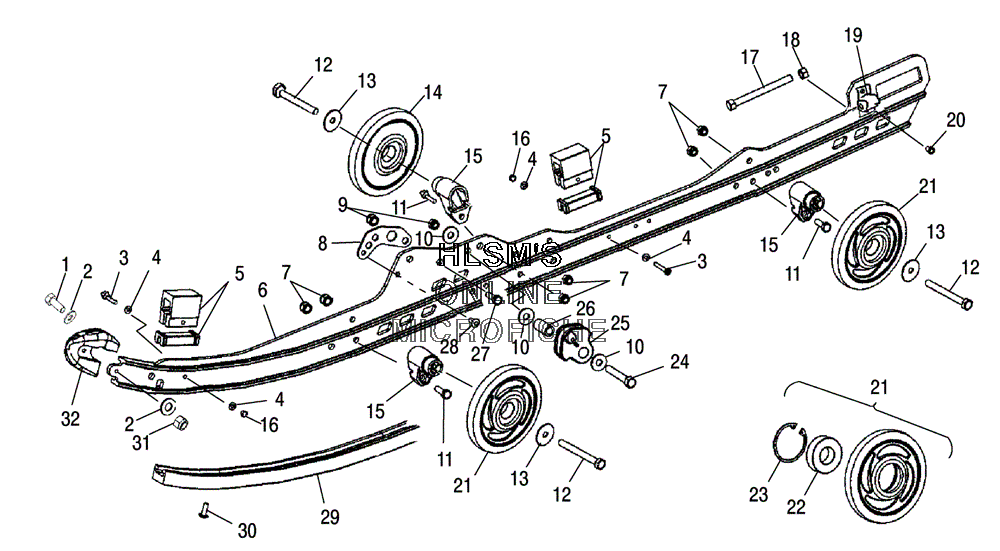

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 800 RMK (S05NK6ES) - 2005 года выпуска`
-
№АртикулНазвание
-
17512007 BOLTBOLT
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHER, FLATWASHER, FLAT
-
55521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
55432946 LINER, BUMPERLINER, BUMPER
-
61541835 RAIL, 144" ASSY (LEFT) (INCL. 1-6, 19, 20, 31, 32)RAIL, 144" ASSY (LEFT) (INCL. 1-6, 19, 20, 31, 32)
-
61541836 RAIL, 144" ASSY (RIGHT) (INCL. 1-6, 19, 20, 31, 32)RAIL, 144" ASSY (RIGHT) (INCL. 1-6, 19, 20, 31, 32)
-
61541840 RAIL, 151" ASSY (LEFT) (INCL. 1-6, 19, 20, 31, 32)RAIL, 151" ASSY (LEFT) (INCL. 1-6, 19, 20, 31, 32)
-
61541841 RAIL, 151" ASSY (RIGHT) (INCL. 1-6, 19, 20, 31, 32)RAIL, 151" ASSY (RIGHT) (INCL. 1-6, 19, 20, 31, 32)
-
61541845 RAIL, 159" ASSY (LEFT) (INCL. 1-6, 19, 20, 31, 32)RAIL, 159" ASSY (LEFT) (INCL. 1-6, 19, 20, 31, 32)
-
61541846 RAIL, 159" ASSY (RIGHT) (INCL. 1-6, 19, 20, 31, 32)RAIL, 159" ASSY (RIGHT) (INCL. 1-6, 19, 20, 31, 32)
-
77542324 NUT, NYLOKNUT, NYLOK
-
85245411 BRACKET RAIL REINFORCEDBRACKET RAIL REINFORCED
-
97542439 NUT, NYLOKNUT, NYLOK
-
107555983 WASHER FLATWASHER FLAT
-
117515317 BOLTBOLT
-
127515346 SCREWSCREW
-
137556179 WASHER SPRING CONWASHER SPRING CON
-
141590328 WHEEL, BOGIE PLAIN 5.62 ASSYWHEEL, BOGIE PLAIN 5.62 ASSY
-
155631065 BLOCK WHEEL MOUNTBLOCK WHEEL MOUNT
-
167541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
177517227 SCREWSCREW
-
187542404 NUTNUT
-
195130530 BLOCK IDLER BOLT ADJUSTBLOCK IDLER BOLT ADJUST
-
207621501 RIVETRIVET
-
211590318-293 WHEEL SCROLLED, 5.62 ASSY (INDY RED) (INCL. 22, 23)WHEEL SCROLLED, 5.62 ASSY (INDY RED) (INCL. 22, 23)
-
211590328 WHEEL, BOGIE PLAIN 5.62 ASSYWHEEL, BOGIE PLAIN 5.62 ASSY
-
223514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
237718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
247515438 BOLTBOLT
-
255434334 GUIDE SPRING SQUAREGUIDE SPRING SQUARE
-
257661123 PIN CLEVISPIN CLEVIS
-
257661644 PIN, HITCHPIN, HITCH
-
265333948 SPACERSPACER
-
277512457 BOLTBOLT
-
287661845 RIVETRIVET
-
295521581-309 SLIDER SERVICE BASIC 45/74"SLIDER SERVICE BASIC 45/74"
-
295521595-309 SLIDER SERVICE BASIC 45/74"SLIDER SERVICE BASIC 45/74"
-
307515199 SCREWSCREW
-
317541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
325434355 CAP RAIL TIP UHMWCAP RAIL TIP UHMW
