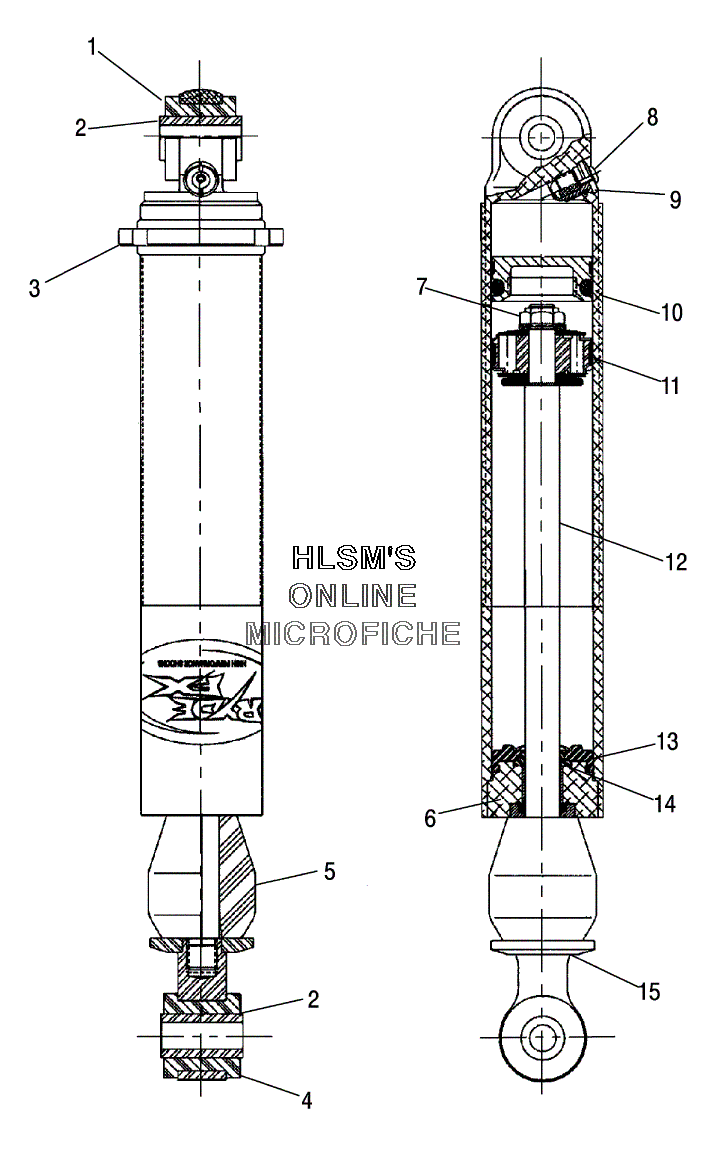

SUSPENSION - SHOCK IFS для Polaris 700 RMK (S05NK6ES) - 2005 года выпуска`
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700079 SLEEVESLEEVE
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700072 BUSHINGBUSHING
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700007 CYLINDER HEAD ASSY (1/2" ROD)CYLINDER HEAD ASSY (1/2" ROD)
-
71700057 NUTNUT
-
81700056 VALVE SCREWVALVE SCREW
-
91700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
91700047 PRESS VALVE O-RINGPRESS VALVE O-RING
-
101700023 IFPIFP
-
101700032 IFP WEAR BANDIFP WEAR BAND
-
101700048 IFP O-RINGIFP O-RING
-
111700108 BANDED PISTON .086" ORIFICEBANDED PISTON .086" ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP OUT WASHERTOP OUT WASHER
-
111700078 BACK UP WASHERBACK UP WASHER
-
121700025 SHAFTSHAFT
-
131700022 CAP SEALCAP SEAL
-
141700021 ROD SEALROD SEAL
-
151700010 MOUNT (UPPER)MOUNT (UPPER)
-
157042059 SHOCK IFS, IFPSHOCK IFS, IFP
