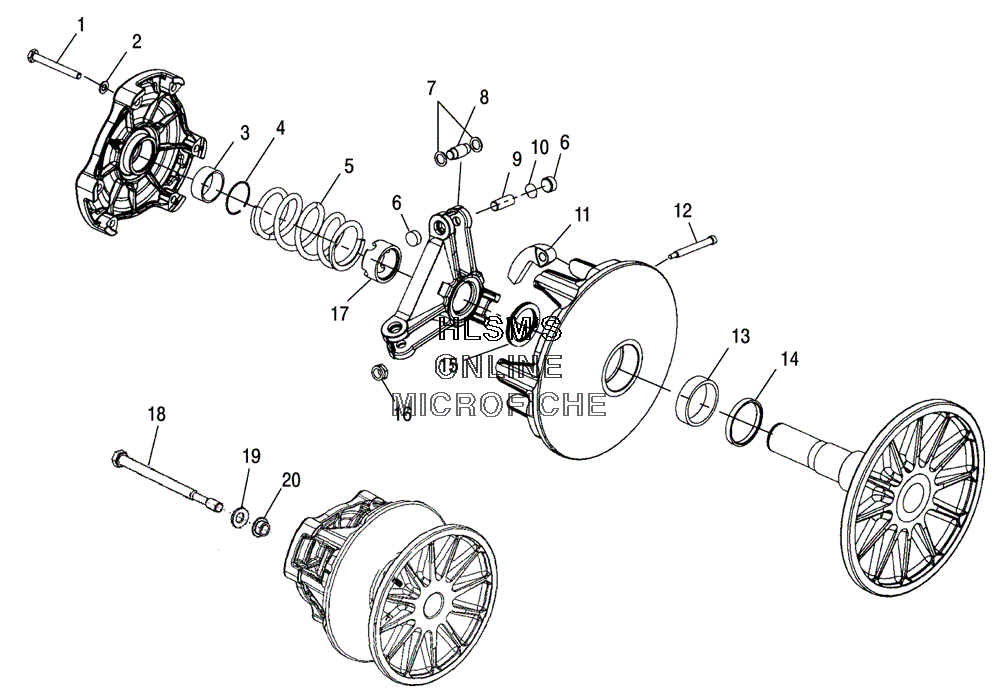

DRIVE CLUTCH - MANUAL START для Polaris 600 RMK (S05NK6ES) - 2005 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING COVERRING, RETAINING COVER
-
57042083 SPRING CLUTCH (BLACK/GREEN)SPRING CLUTCH (BLACK/GREEN)
-
65430445 BUTTON GUIDEBUTTON GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133079 PIN ROLLER, 1" SBNPIN ROLLER, 1" SBN
-
102200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
111321685 WT/BUSH.ASSY (10-54)WT/BUSH.ASSY (10-54)
-
127515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155210754 SPACER (.050)SPACER (.050)
-
155210753 SPACER (.032)SPACER (.032)
-
155242981 SPACER (.025)SPACER (.025)
-
155210752 SPACER (.020)SPACER (.020)
-
167541906 NUT FLEXLOCNUT FLEXLOC
-
175020425 NUT, JAMNUT, JAM
-
187517501 SCREWSCREW
-
197556003 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
201321928 DRIVE CLUTCH, BASIC, 114 ASSY (LESS 5, 11)DRIVE CLUTCH, BASIC, 114 ASSY (LESS 5, 11)
-
202201169 WIDE ROLLER SPIDER REBUILD KIT (INCL. 6-12)WIDE ROLLER SPIDER REBUILD KIT (INCL. 6-12)
