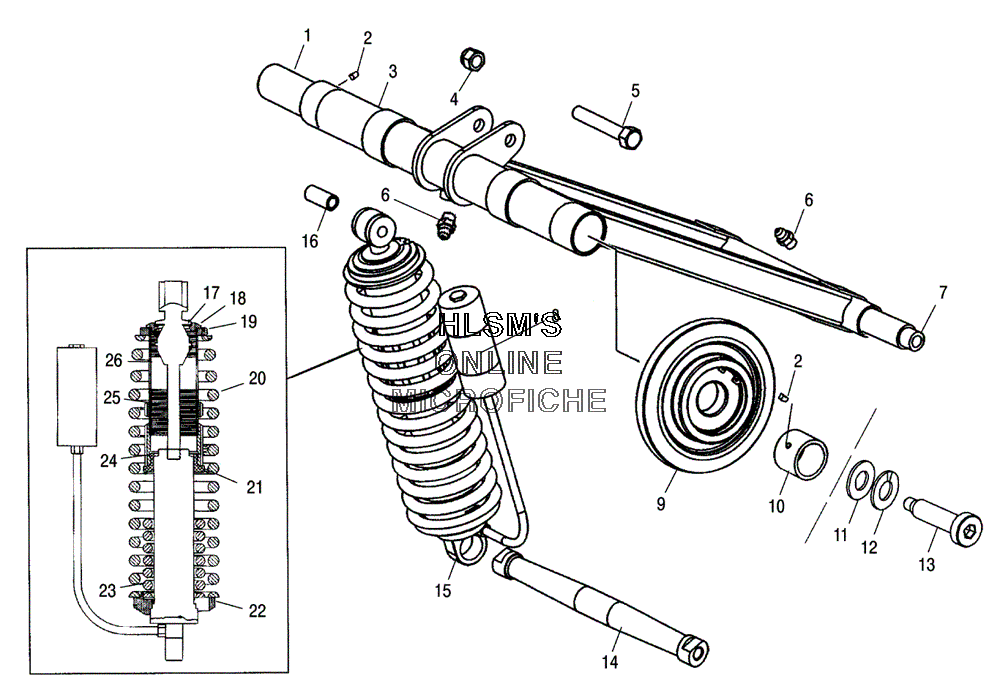

SUSPENSION - REAR TORQUE ARM ASSEMBLY (M-10) для Polaris 550 SUPER SPORT (S05NE5BS) - 2005 года выпуска`
-
№АртикулНазвание
-
15132578 SHAFT M-10 (UPPER)SHAFT M-10 (UPPER)
-
27512257 SCREW SOCKET SETSCREW SOCKET SET
-
31541527-067 TORQUE ARM, M-10 (RIGHT)TORQUE ARM, M-10 (RIGHT)
-
47542439 NUT, NYLOKNUT, NYLOK
-
57515415 SCREWSCREW
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
75133093 SHAFT (LOWER)SHAFT (LOWER)
-
87079432 DECAL M-10 FOX RESDECAL M-10 FOX RES
-
91590308 WHEEL, OFF-SET 5.60 ASSYWHEEL, OFF-SET 5.60 ASSY
-
93514330 BEARING 6206BEARING 6206
-
105132582 COLLAR, BEARING LOCK (REAR)COLLAR, BEARING LOCK (REAR)
-
117555984 WASHER, FLATWASHER, FLAT
-
127552614 WASHER, LOCKWASHER, LOCK
-
137517815 SCREWSCREW
-
157042216 SHOCK TRACK, REZY-M-10 (REAR) (SEE SUSPENSION - REAR TRACK M-10 FOR DETAILS)SHOCK TRACK, REZY-M-10 (REAR) (SEE SUSPENSION - REAR TRACK M-10 FOR DETAILS)
-
165333905 SLEEVESLEEVE
-
175244747 CAP ICECAP ICE
-
185020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
195132645 NUT PRELOADNUT PRELOAD
-
207041935-067 SPRING SHOCK, M-10 (BLACK/REAR)SPRING SHOCK, M-10 (BLACK/REAR)
-
215433882 BUSHING OVER LOAD DEPRESSORBUSHING OVER LOAD DEPRESSOR
-
225133032 RETAINER, RING (REAR)RETAINER, RING (REAR)
-
237041936-067 SPRING REAR OVER/LOAD, M-10 (BLACK)SPRING REAR OVER/LOAD, M-10 (BLACK)
-
245132625 RING ADJUSTERRING ADJUSTER
-
255132643 NUT RING ADJUSTERNUT RING ADJUSTER
-
265132794 SLEEVE OVER LOAD DEPRESSORSLEEVE OVER LOAD DEPRESSOR
