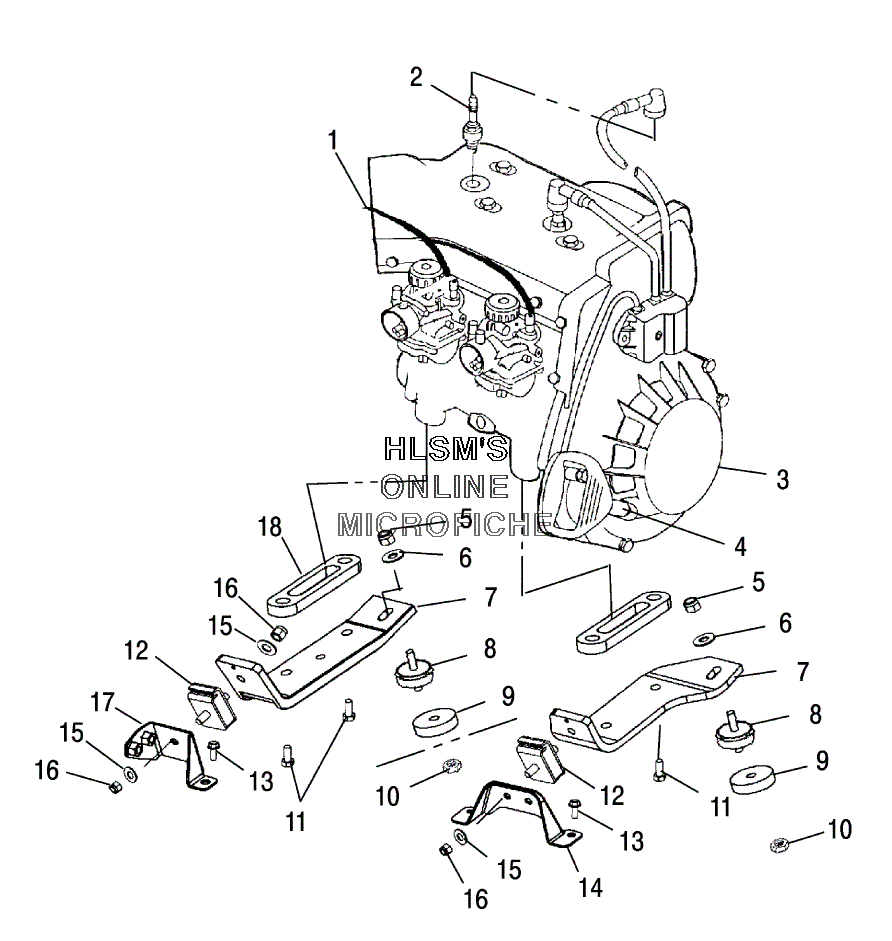

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 550 CLASSIC (S05ND5BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7080290 CABLE, CHOKE
    CABLE, CHOKE
  • 3
    3088822 ENGINE EC55PM092-SB NOTE:
    ENGINE EC55PM092-SB NOTE:
  • 4
    5431499-070 HANDLE RECOIL (BLACK)
    HANDLE RECOIL (BLACK)
  • 5
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 6
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 7
    5245466 STRAP ENGINE MOUNT (LEFT)
    STRAP ENGINE MOUNT (LEFT)
  • 7
    5246193 STRAP ENGINE MOUNT (RIGHT)
    STRAP ENGINE MOUNT (RIGHT)
  • 8
    3021220 MOUNT ENGINE
    MOUNT ENGINE
  • 9
    5245117 SPACER ENGINE MOUNT
    SPACER ENGINE MOUNT
  • 10
    7547180 NUT FLANGED, 3/8-16 NYLON-Z
    NUT FLANGED, 3/8-16 NYLON-Z
  • 11
    7517399 SCREW
    SCREW
  • 12
    3021206 MOUNT ENGINE, 3/8-16, RECT
    MOUNT ENGINE, 3/8-16, RECT
  • 13
    7517854 SCREW
    SCREW
  • 14
    5245044 BRACKET ENGINE MOUNT FORMED (RIGHT)
    BRACKET ENGINE MOUNT FORMED (RIGHT)
  • 15
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 16
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 17
    1013397 WELD ENGINE MOUNT BRACKET (LEFT)
    WELD ENGINE MOUNT BRACKET (LEFT)
  • 18
    5245020 SPACER ENGINE (.38)
    SPACER ENGINE (.38)
