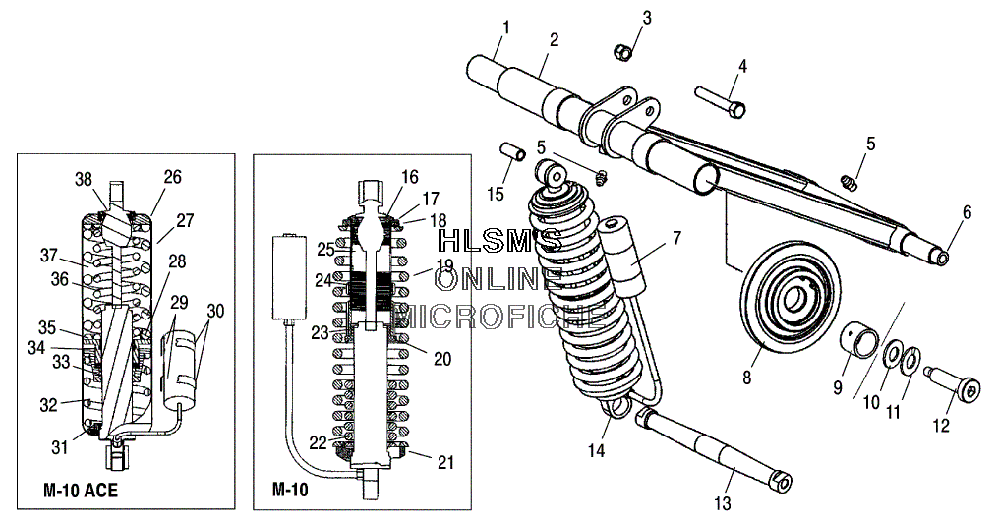

SUSPENSION - REAR TORQUE ARM ASSEMBLY (M 10) для Polaris 500 XC SP M-10 (S05NE5CS) - 2005 года выпуска`
-
№АртикулНазвание
-
15132578 SHAFT (UPPER) (M-10)SHAFT (UPPER) (M-10)
-
21541527-067 TORQUE ARM (M-10) (BLACK)TORQUE ARM (M-10) (BLACK)
-
21541894-067 WELD TORQUE ARM (M-10 ACE) (BLACK)WELD TORQUE ARM (M-10 ACE) (BLACK)
-
37542439 NUT, NYLOKNUT, NYLOK
-
47515415 SCREWSCREW
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
65133093 SHAFT (LOWER)SHAFT (LOWER)
-
77079432 DECAL M-10 FOX RESDECAL M-10 FOX RES
-
81590308 WHEEL ASSY, OFF SET 5.60WHEEL ASSY, OFF SET 5.60
-
83514330 BEARINGBEARING
-
95132582 COLLAR BEARING LOCK (REAR)COLLAR BEARING LOCK (REAR)
-
97512257 SCREW SOCKETSETSCREW SOCKETSET
-
107555984 WASHER, FLATWASHER, FLAT
-
117552614 WASHER, LOCKWASHER, LOCK
-
127517815 SCREWSCREW
-
147042216 SHOCK REAR TRACK, REZY M-10 (SEE SUSPENSION - REAR TRACK SHOCK M-10 FOR DETAILS)SHOCK REAR TRACK, REZY M-10 (SEE SUSPENSION - REAR TRACK SHOCK M-10 FOR DETAILS)
-
147042149 SHOCK REAR TRACK, RE24 M-10 (SEE SUSPENSION - REAR TRACK SHOCK M-10 FOR DETAILS)SHOCK REAR TRACK, RE24 M-10 (SEE SUSPENSION - REAR TRACK SHOCK M-10 FOR DETAILS)
-
155333905 SLEEVESLEEVE
-
165244747 CAP ICE (M-10)CAP ICE (M-10)
-
175020618 RETAINER, SPRING, SLOTTED (M-10)RETAINER, SPRING, SLOTTED (M-10)
-
185132645 NUT PRELOAD (M-10)NUT PRELOAD (M-10)
-
197041935-067 SPRING REAR SHOCK (M-10) (BLACK)SPRING REAR SHOCK (M-10) (BLACK)
-
205433882 BUSHING OVER LOAD DEPRESSORBUSHING OVER LOAD DEPRESSOR
-
215133032 RETAINER REAR SPRINGRETAINER REAR SPRING
-
227041936-067 SPRING REAR OVER/LOAD (M-10) (BLACK)SPRING REAR OVER/LOAD (M-10) (BLACK)
-
235132625 RING ADJUSTER (M-10)RING ADJUSTER (M-10)
-
245132643 NUT RING ADJUSTER (M-10)NUT RING ADJUSTER (M-10)
-
255132794 SLEEVE OVER LOAD DEPRESSOR (M-10)SLEEVE OVER LOAD DEPRESSOR (M-10)
-
265133746 RETAINER SPRING (M-10 ACE) (LOWER)RETAINER SPRING (M-10 ACE) (LOWER)
-
277042208-067 SPRING COM, 715# (M-10 ACE) (BLACK)SPRING COM, 715# (M-10 ACE) (BLACK)
-
285434896 BUSHING NYLON, PRELOAD COLLAR (M-10 ACE)BUSHING NYLON, PRELOAD COLLAR (M-10 ACE)
-
295812432 PAD FOAM, ADHESIVE, 1/2X4" (M-10 ACE)PAD FOAM, ADHESIVE, 1/2X4" (M-10 ACE)
-
307081119 CLAMP HOSE, 2.0" (M-10 ACE)CLAMP HOSE, 2.0" (M-10 ACE)
-
315133747 RETAINER SPRING (M-10 ACE) (UPPER)RETAINER SPRING (M-10 ACE) (UPPER)
-
327042207-067 SPRING COM, 273# (M-10 ACE) (BLACK)SPRING COM, 273# (M-10 ACE) (BLACK)
-
335433882 BUSHING OVER LOAD DEPRESSOR (M-10 ACE)BUSHING OVER LOAD DEPRESSOR (M-10 ACE)
-
345133744 RETAINER SPRING, PRELOAD ADJUST (M-10 ACE)RETAINER SPRING, PRELOAD ADJUST (M-10 ACE)
-
355133745 COLLAR SPRING, PRELOAD ADJUST (M-10 ACE)COLLAR SPRING, PRELOAD ADJUST (M-10 ACE)
-
367042206-067 SPRING COM, 629# (M-10 ACE) (BLACK)SPRING COM, 629# (M-10 ACE) (BLACK)
-
372683490 COVER SPRING, NYLON, 13.0 (M-10 ACE)COVER SPRING, NYLON, 13.0 (M-10 ACE)
-
385133778 COLLAR SPRING, SLOTTED (M-10 ACE)COLLAR SPRING, SLOTTED (M-10 ACE)
