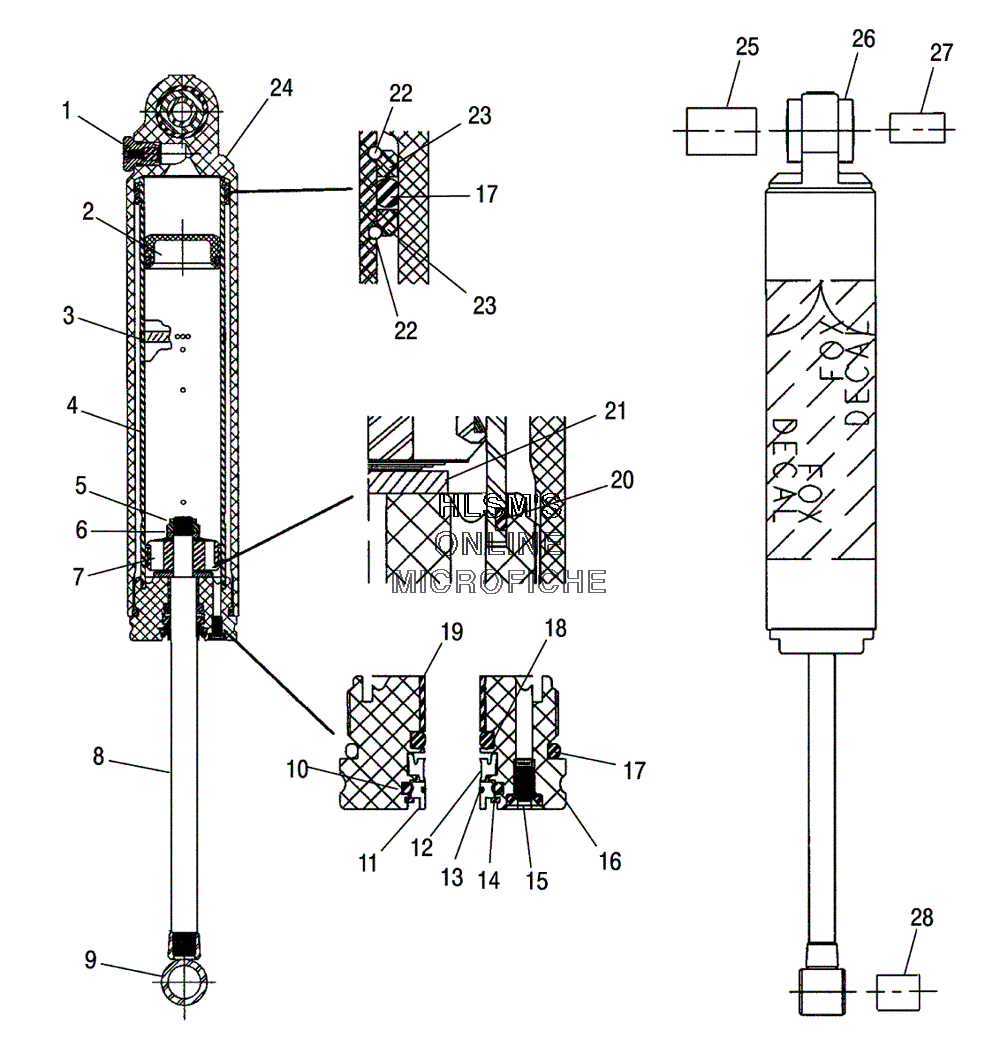

SUSPENSION - REAR TRACK для Polaris 500 INDY (S05NB4BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1500295 SCREW-#10-24X.375 800-10-000
    SCREW-#10-24X.375 800-10-000
  • 1
    1500022 O-RING,DRUM OUTER
    O-RING,DRUM OUTER
  • 2
    1500481 ASM-FLOATING PISTON
    ASM-FLOATING PISTON
  • 2
    1500006 BEARING, EXTERNAL
    BEARING, EXTERNAL
  • 2
    1500003 O-RING,ENDCAP
    O-RING,ENDCAP
  • 3
    1500306 VALVE,CHECK,NBR DURO A 90
    VALVE,CHECK,NBR DURO A 90
  • 4
    1500331 BODY,ASM,INNER P.S.
    BODY,ASM,INNER P.S.
  • 5
    1500016 NUT,LOCK
    NUT,LOCK
  • 6
    1500015 PLATE,BACKUP
    PLATE,BACKUP
  • 7
    1500489 PISTON-.063 BLEED
    PISTON-.063 BLEED
  • 7
    1500002 BEARING,PISTON
    BEARING,PISTON
  • 8
    1500487 SHAFT-.5X8.41 TLG
    SHAFT-.5X8.41 TLG
  • 9
    1500302 EYELET-.88W 1.38TLG 808-05-002
    EYELET-.88W 1.38TLG 808-05-002
  • 10
    1500483 O-RING,.103X.73ID
    O-RING,.103X.73ID
  • 11
    1500485 SCRAPER-FIST,BRONZE
    SCRAPER-FIST,BRONZE
  • 12
    1500266 U-CUP-4300 URETH,036-01-006
    U-CUP-4300 URETH,036-01-006
  • 13
    1500484 O-RING 14MM IDX1 MM
    O-RING 14MM IDX1 MM
  • 14
    1500486 RING-SNAP,INTERNAL
    RING-SNAP,INTERNAL
  • 15
    1500295 SCREW-#10-24X.375 800-10-000
    SCREW-#10-24X.375 800-10-000
  • 15
    1500022 O-RING,DRUM OUTER
    O-RING,DRUM OUTER
  • 16
    1500482 ASM-BEARING,FIST (INCL. 10-15,17-19)
    ASM-BEARING,FIST (INCL. 10-15,17-19)
  • 17
    1500228 O-RING
    O-RING
  • 18
    1500127 O-RING
    O-RING
  • 19
    1500488 BEARING-.5 IDX.5 TLG
    BEARING-.5 IDX.5 TLG
  • 20
    1500459 O-RING-.070CSX1.489ID
    O-RING-.070CSX1.489ID
  • 21
    1500017 PLATE,TOP OUT
    PLATE,TOP OUT
  • 22
    1500097 RING-RETAINING,WIRE
    RING-RETAINING,WIRE
  • 23
    1500336 COLLAR,ALUMINUM
    COLLAR,ALUMINUM
  • 24
    1500480 ASM-BODY,PPS3 (INCL. 1)
    ASM-BODY,PPS3 (INCL. 1)
  • 25
    1500311 SLEEVE,.56X.81X1.28
    SLEEVE,.56X.81X1.28
  • 26
    1500307 BUSHING,.35ILG,.63TLG
    BUSHING,.35ILG,.63TLG
  • 27
    5333907 SLEEVE,.385X.560X1.30
    SLEEVE,.385X.560X1.30
  • 28
    5010422 BUSHING
    BUSHING
  • 28
    7042129 SHOCK-R/T,ALUM,PPS
    SHOCK-R/T,ALUM,PPS
