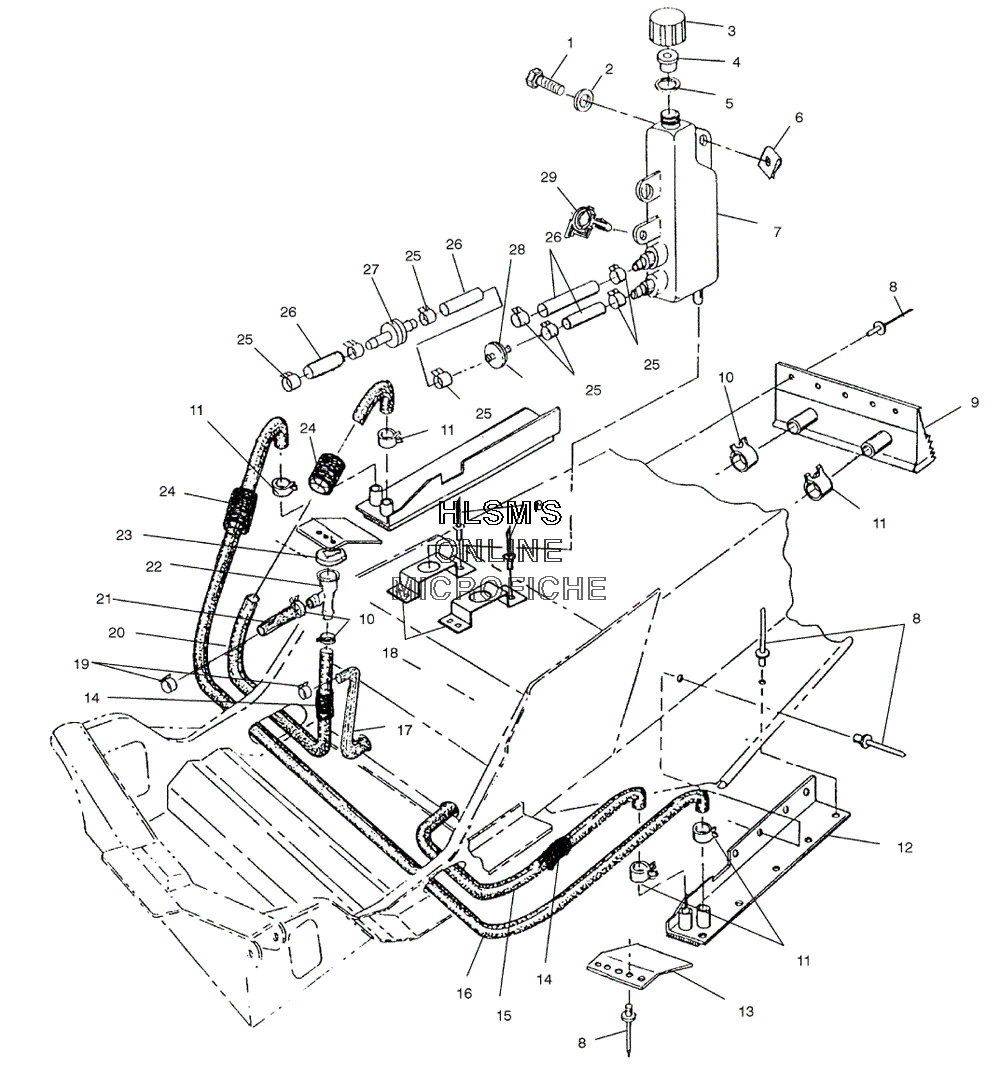

COOLING SYSTEM для Polaris WIDETRACK LX (S04SU4BS) - 2004 года выпуска

№

Артикул

Название
1

7512276 BOLT

BOLT
2

7558302 WASHER, WROUGHT

WASHER, WROUGHT
3

5430743 CAP, OVERFLOW

CAP, OVERFLOW
4

5431096 PLUG

PLUG
5

5810279 GASKET

GASKET
6

7670096 NUT

NUT
7

5431733 BOTTLE, OVER FLOW WITH FITTING

BOTTLE, OVER FLOW WITH FITTING
8

7661637 RIVET, INTERLOCK Z

RIVET, INTERLOCK Z
9

2511187 EXTENSION, CENTER COOLING

EXTENSION, CENTER COOLING
10

7080844 CLAMP, SPRINGBAND 35/12 (BLACK)

CLAMP, SPRINGBAND 35/12 (BLACK)
11

7080841 CLAMP, SPRINGBAND 27/12 (GREEN)

CLAMP, SPRINGBAND 27/12 (GREEN)
12

2511257 COOLER SIDE X-10 (LEFT)

COOLER SIDE X-10 (LEFT)
12

2511258 COOLER, SIDE (RIGHT) (XTRA 10)

COOLER, SIDE (RIGHT) (XTRA 10)
13

5240555 GUARD, COOL EXTENSION

GUARD, COOL EXTENSION
14

5411396 TUBING, CONVOLUTED (8"X1")

TUBING, CONVOLUTED (8"X1")
15

5410558 HOSE, CROSSOVER SHORT

HOSE, CROSSOVER SHORT
16

5410557 HOSE, CROSSOVER

HOSE, CROSSOVER
17

5411382 HOSE, CLOSEOFF OUTER ENGINE

HOSE, CLOSEOFF OUTER ENGINE
18

5241334 BRACKET, OILTANK COINED

BRACKET, OILTANK COINED
19

7080842 CLAMP, SPRINGBAND 29/12 (BLACK)

CLAMP, SPRINGBAND 29/12 (BLACK)
20

5411381 HOSE, FILLER OUT EXTENSION (RIGHT)

HOSE, FILLER OUT EXTENSION (RIGHT)
21

5411010 HOSE, ENGINE OUT/FILLER

HOSE, ENGINE OUT/FILLER
22

5433364 FILLER REMOTE COOLANT

FILLER REMOTE COOLANT
23

2511256 CAP, PRESS (19-21 LB.)

CAP, PRESS (19-21 LB.)
24

5521242 TUBING, CONVOLUTED (1"X2.5")

TUBING, CONVOLUTED (1"X2.5")
25

7080307 CLAMP, HOSE

CLAMP, HOSE
26

8450003-1525 LINE, FUEL (1/4 ID/1525 CM)

LINE, FUEL (1/4 ID/1525 CM)
27

7052038 VALVE, CHECK

VALVE, CHECK
28

2530024 FILTER, COOLANT LARGE

FILTER, COOLANT LARGE
29

4020139 CLIP, ROSEBUD

CLIP, ROSEBUD
