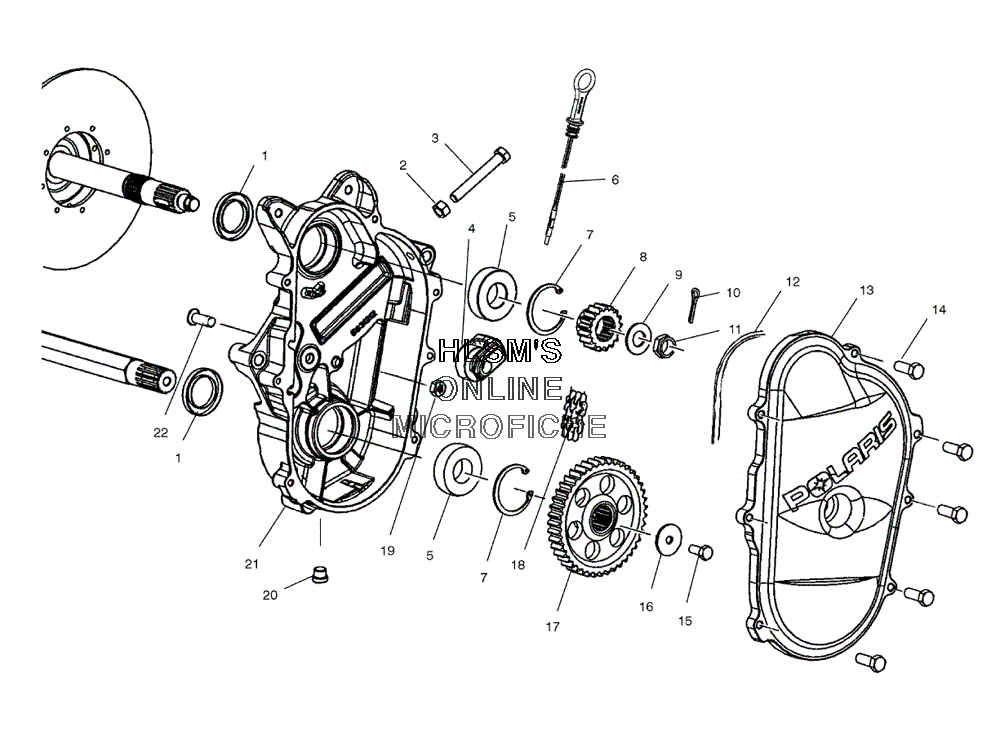

CHAINCASE ASSEMBLY для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41332266 TIGHTENER, SLIDING ASSYTIGHTENER, SLIDING ASSY
-
45630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
43553002 BEARINGBEARING
-
47558702 WASHER THRUSTWASHER THRUST
-
53514309 BEARING, BALLBEARING, BALL
-
61332143 DIPSTICK ASSY (INCL. O-RING)DIPSTICK ASSY (INCL. O-RING)
-
77718406 RING, RETAININGRING, RETAINING
-
83221093 SPROKETSPROKET
-
97571620 SPRING WASHERSPRING WASHER
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUT THIN, NYLON INSERT-YNUT THIN, NYLON INSERT-Y
-
125411497 GASKET, O-RINGGASKET, O-RING
-
135631354 COVER, CHAINCASE (7.92 CD)COVER, CHAINCASE (7.92 CD)
-
147512242 SCREWSCREW
-
157517979 SCREW HEXAGONHEAD NYLONSCREW HEXAGONHEAD NYLON
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222108 SPROKETSPROKET
-
183221110 CHAIN, HYVO (72P)CHAIN, HYVO (72P)
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASE (7.92 CD)CHAINCASE (7.92 CD)
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
