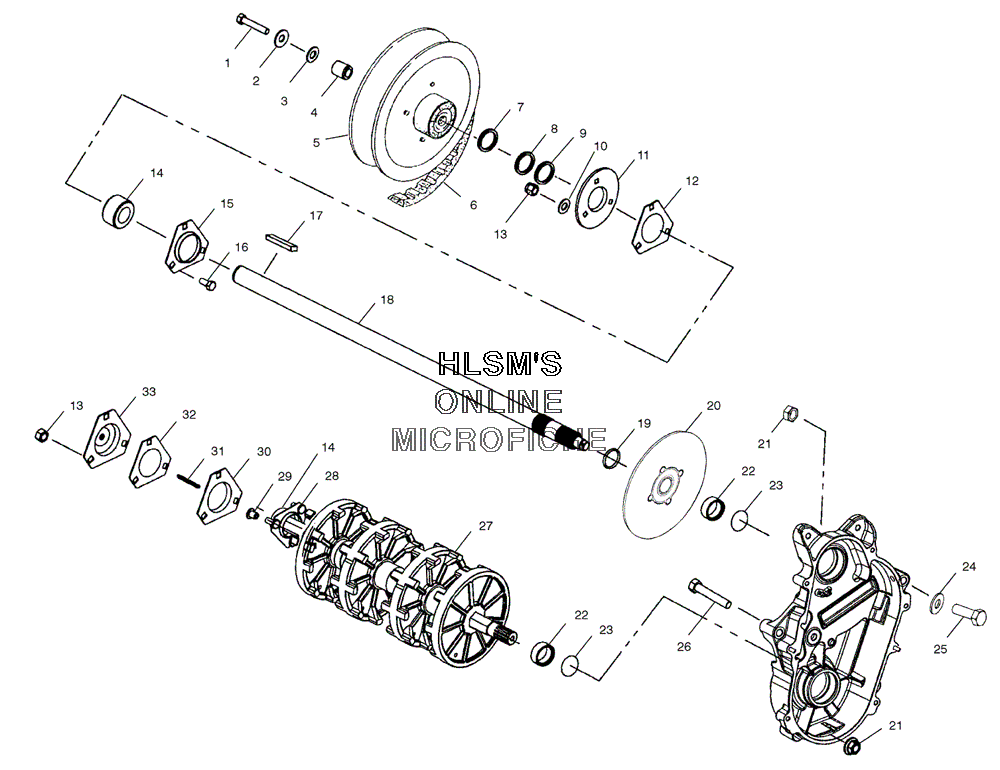

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 CLASSIC TOURING (S04NT8CS) - 2004 года выпуска`
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020913 SPACER-INPUT SHAFT, .984X.940SPACER-INPUT SHAFT, .984X.940
-
63211080 BELT DRIVEBELT DRIVE
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107558402 WASHER, FLATWASHER, FLAT
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT, BLACKGASKET, JACKSHAFT, BLACK
-
137542324 NUT, NYLOKNUT, NYLOK
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEY-1/4X3/16X2.75KEY-1/4X3/16X2.75
-
181332220 ASM., JACKSHAFT, 15T, W/BRG, 1.06 (INCL. 14, 19)ASM., JACKSHAFT, 15T, W/BRG, 1.06 (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
202202493 KIT-BRAKE DISC, FORGEDKIT-BRAKE DISC, FORGED
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O RINGO RING
-
247558403 WASHER, WROUGHTWASHER, WROUGHT
-
257518002 SCR-3/8-16X2.25 HX/CP-G5-YSCR-3/8-16X2.25 HX/CP-G5-Y
-
267515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
271590366 ASM-DRIVESHAFT, 4DR (SMOOTH) EDGE (INCL. 28, 29)ASM-DRIVESHAFT, 4DR (SMOOTH) EDGE (INCL. 28, 29)
-
281012945 ASM.-FLANGETTE W/SCREWSASM.-FLANGETTE W/SCREWS
-
293280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
305243529 FLANGETTE-OFFSET, W/HOLEFLANGETTE-OFFSET, W/HOLE
-
313280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
325830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
333280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
