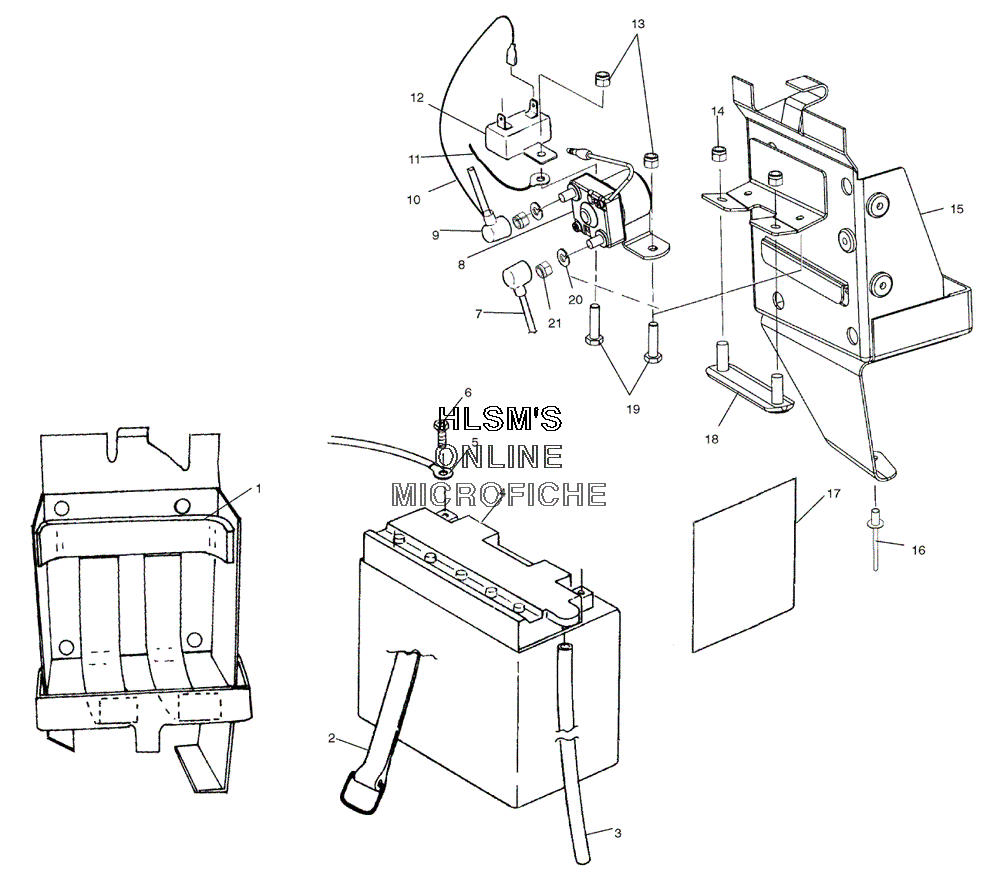

BATTERY BOX для Polaris 800 CLASSIC TOURING (S04NT8CS) - 2004 года выпуска`
-
№АртикулНазвание
-
15810290 PAD, BATTERYPAD, BATTERY
-
22450020 ASM., BATTERY HOLD DOWN STRAPASM., BATTERY HOLD DOWN STRAP
-
35432077 TUBE, VENTTUBE, VENT
-
44140006 BATTERYBATTERY
-
54010114 CABLE, 11'', BATT., BLACK.CABLE, 11'', BATT., BLACK.
-
62200361 KIT-BATTERY BOLT (SHORT)KIT-BATTERY BOLT (SHORT)
-
74010107 CABLE, SOL/STRT, BLACK, 16.5''CABLE, SOL/STRT, BLACK, 16.5''
-
95410346 INSUL.CABLE SOL.INSUL.CABLE SOL.
-
102460393 CABLE ASM, SOLENOIDCABLE ASM, SOLENOID
-
114010108 WIRE, JUMPER, SOL/BATT, 8.5''WIRE, JUMPER, SOL/BATT, 8.5''
-
122434008 BREAKER, CIRCUITBREAKER, CIRCUIT
-
137541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
147542122 NUT-NYLOKNUT-NYLOK
-
151013256-067 WELD-BATTERY BOX, BLKWELD-BATTERY BOX, BLK
-
151013679-067 WELD-BATTERY BOX, BLACKWELD-BATTERY BOX, BLACK
-
167621467 RIVET, BLINDRIVET, BLIND
-
175810129 FOIL TAPE, (4X6)FOIL TAPE, (4X6)
-
181013385 WELD-STUD PLATEWELD-STUD PLATE
-
197511930 SCREWSCREW
