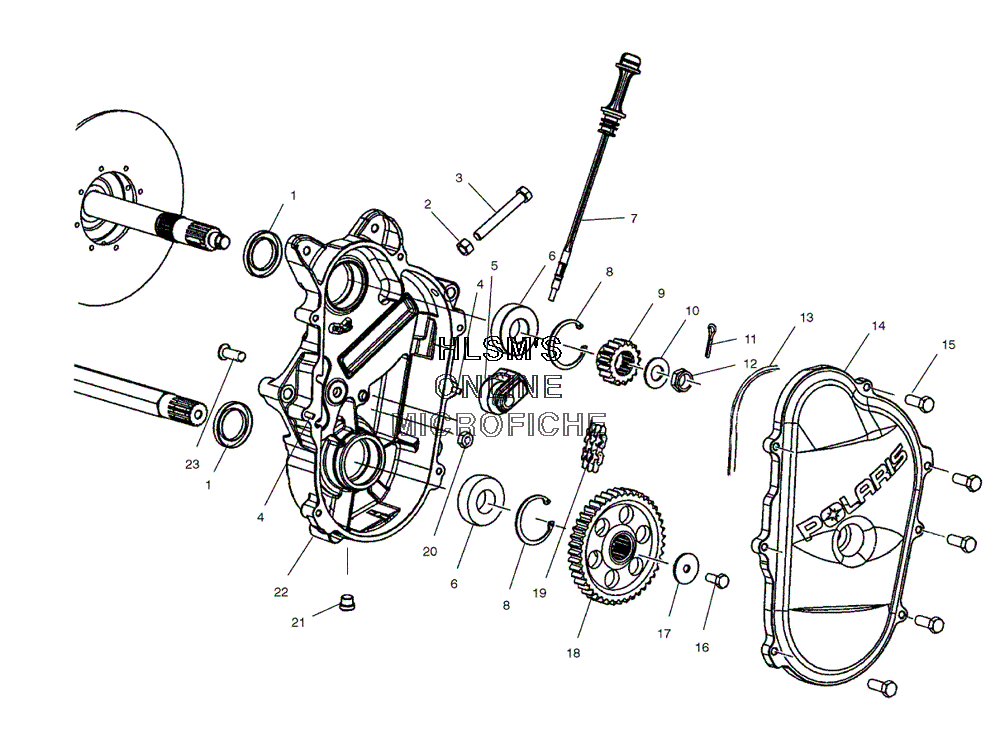

CHAINCASE ASSEMBLY для Polaris 800 CLASSIC TOURING EURO (S04NT8CE) - 2004 года выпуска`
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
47661826 PIN, DOWELPIN, DOWEL
-
51332266 ASM-TIGHTENER, SLIDING, 1.265WASM-TIGHTENER, SLIDING, 1.265W
-
63514309 BEARING, BALL #6205BEARING, BALL #6205
-
71332143 ASM-DIPSTICKASM-DIPSTICK
-
75410675 O-RINGO-RING
-
87718406 RING, RETAININGRING, RETAINING
-
93221098 SPKT, 22T, 3/4W, 15 SPL, HV, PMSPKT, 22T, 3/4W, 15 SPL, HV, PM
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661203 PIN, COTTERPIN, COTTER
-
127547202 NUT-5/8-18 THIN, NYL INSERT-YNUT-5/8-18 THIN, NYL INSERT-Y
-
135411497 GASKET, O-RINGGASKET, O-RING
-
145631354 COVER, CHAINCASE 7.92 CDCOVER, CHAINCASE 7.92 CD
-
157512242 SCREWSCREW
-
167517979 SCR-5/16-18 3/4 HXHD/NYL, GR8-PSCR-5/16-18 3/4 HXHD/NYL, GR8-P
-
177571618 WASHER, SPRINGWASHER, SPRING
-
183222099 SPKT, 40T, 15T SPL, HYVO, PMSPKT, 40T, 15T SPL, HYVO, PM
-
193221109 CHAIN, HYVO.74P, 3/4WCHAIN, HYVO.74P, 3/4W
-
207542451 NUT, NYLOKNUT, NYLOK
-
217052115 PLUGPLUG
-
225134085 CHAINCASE-7.92 CDCHAINCASE-7.92 CD
-
237515477 SCREW, CARRIAGESCREW, CARRIAGE
