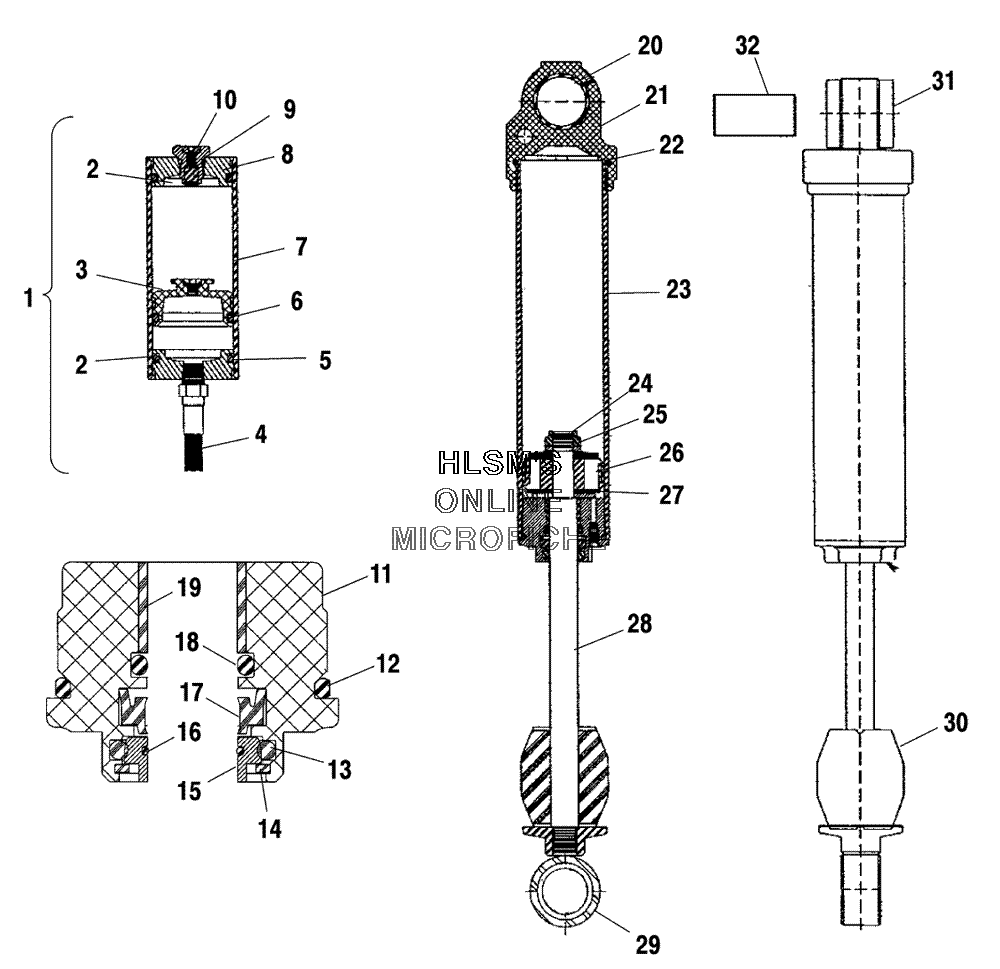

SUSPENSION - REAR TRACK (M-10 ACE) для Polaris 800 CLASSIC (S04ND7CS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1500449 RESERVIOR, NON ADJUST ASSY (INCL. 2-10)
    RESERVIOR, NON ADJUST ASSY (INCL. 2-10)
  • 2
    1500450 SEAL, O-RING
    SEAL, O-RING
  • 3
    1500187 PISTON FLOATING
    PISTON FLOATING
  • 4
    1500560 HOSE
    HOSE
  • 5
    1500163 ENDCAP ASSY, RESERVOIR
    ENDCAP ASSY, RESERVOIR
  • 6
    1500003 O-RING, ENDCAP
    O-RING, ENDCAP
  • 7
    1500451 RESERVOIR
    RESERVOIR
  • 8
    1500160 RESERVOIR, ENDCAP ASSY
    RESERVOIR, ENDCAP ASSY
  • 9
    1500023 O-RING (OUTER)
    O-RING (OUTER)
  • 10
    1500014 VALVE ASSY, AIR
    VALVE ASSY, AIR
  • 11
    1500545 DAMPNER ASSY. (INCL. 12-19)
    DAMPNER ASSY. (INCL. 12-19)
  • 12
    1500020 O-RING (.103W-1.299ID)
    O-RING (.103W-1.299ID)
  • 13
    1500483 O-RING (.103X.73ID)
    O-RING (.103X.73ID)
  • 14
    1500486 RING SNAP, INTERNAL
    RING SNAP, INTERNAL
  • 15
    1500485 SCRAPER FIST, BRONZE
    SCRAPER FIST, BRONZE
  • 16
    1500484 O-RING
    O-RING
  • 17
    1500266 U-CUP 4300 URETH
    U-CUP 4300 URETH
  • 18
    1500021 O-RING (INNER)
    O-RING (INNER)
  • 19
    1500488 BEARING (.5 IDX.5 TLG)
    BEARING (.5 IDX.5 TLG)
  • 20
    1500444 BEARING RBC
    BEARING RBC
  • 21
    1500563 BODY CAP ASSY
    BODY CAP ASSY
  • 22
    1500108 O-RING (.103W-1.549ID)
    O-RING (.103W-1.549ID)
  • 23
    1500561 BODY
    BODY
  • 24
    1500016 NUT, LOCK
    NUT, LOCK
  • 25
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 26
    1500002 BEARING, PISTON
    BEARING, PISTON
  • 27
    1500017 PLATE, TOP OUT
    PLATE, TOP OUT
  • 28
    1500562 SHAFT
    SHAFT
  • 29
    1500564 EYELET
    EYELET
  • 30
    5410855 BUMPER, JOUNCE
    BUMPER, JOUNCE
  • 31
    1500309 BUSHING (.35ILG, .595TLG)
    BUSHING (.35ILG, .595TLG)
  • 32
    1500310 SLEEVE
    SLEEVE
  • 32
    7042149 SHOCK TRACK, RE24 (M-10) (REAR) (INCL. ALL)
    SHOCK TRACK, RE24 (M-10) (REAR) (INCL. ALL)
