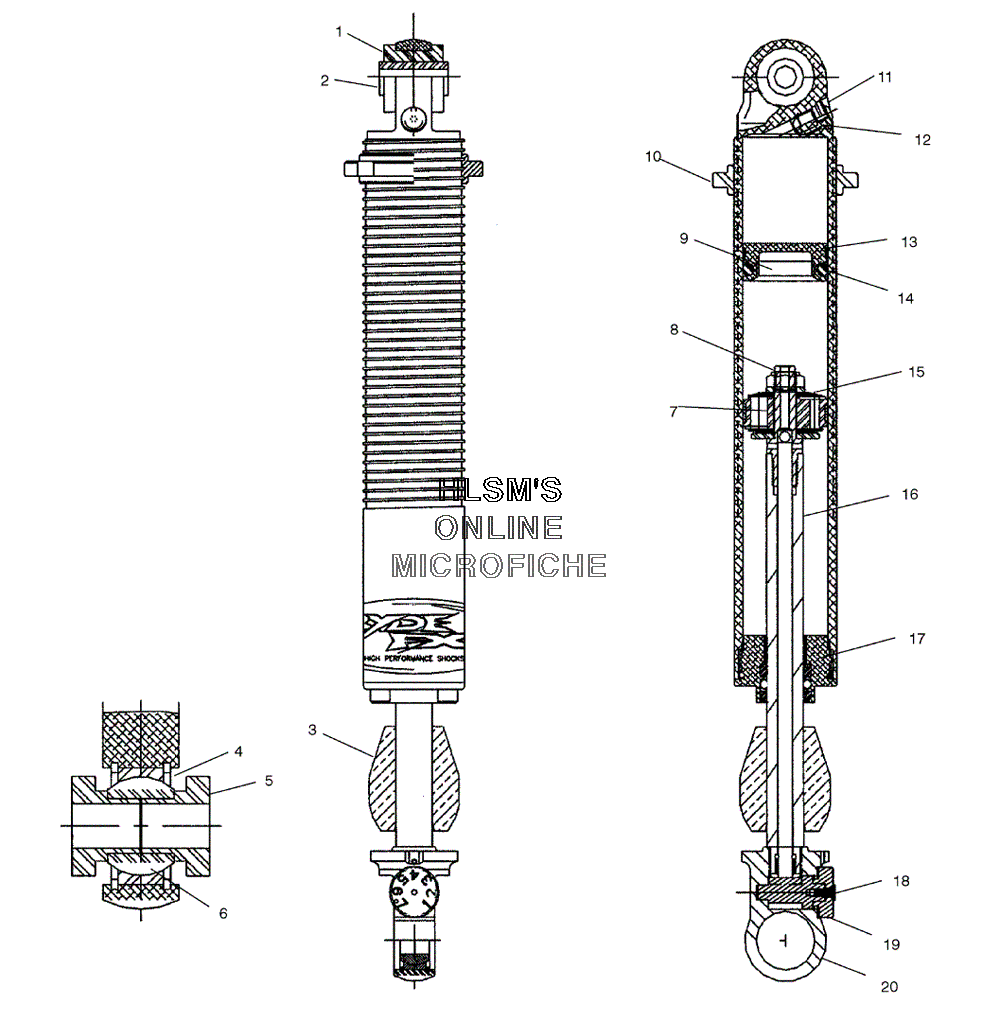

SUSPENSION - IFS SHOCK для Polaris 700 PRO X (S04NX6ES) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1700036 BUSHING
    BUSHING
  • 2
    1700037 SLEEVE (18STEEL)
    SLEEVE (18STEEL)
  • 3
    1700042 BUMPER, COMPRESSION
    BUMPER, COMPRESSION
  • 4
    1700067 SNAP RING
    SNAP RING
  • 5
    1700066 SPACER
    SPACER
  • 6
    1700068 SPHERICAL BEARING
    SPHERICAL BEARING
  • 7
    1700109 BANDED PISTON .094 ORIFICE
    BANDED PISTON .094 ORIFICE
  • 7
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 7
    1700077 TOP OUT WASHER
    TOP OUT WASHER
  • 7
    1700078 BACK UP WASHER
    BACK UP WASHER
  • 8
    1700057 NUT
    NUT
  • 9
    1700023 IFP
    IFP
  • 10
    1700030 SPRING RETAINING NUT
    SPRING RETAINING NUT
  • 11
    1700056 VALVE SCREW
    VALVE SCREW
  • 12
    1700184 PRESS VALVE ASSY
    PRESS VALVE ASSY
  • 13
    1700032 IFP WEAR BAND
    IFP WEAR BAND
  • 14
    1700048 IFP O-RING
    IFP O-RING
  • 15
    2200618 VALVE PISTON KIT
    VALVE PISTON KIT
  • 16
    1700189 SHAFT ASSY
    SHAFT ASSY
  • 17
    1700190 CYLINDER HEAD ASSY
    CYLINDER HEAD ASSY
  • 17
    1700051 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 17
    1700019 ROD SCRAPER
    ROD SCRAPER
  • 17
    1700046 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 17
    1700020 ROD SEAL
    ROD SEAL
  • 18
    1700192 SCREW
    SCREW
  • 19
    1700193 KNOB
    KNOB
  • 20
    1700191 MOUNT ASSY (UPPER) (INCL. 18, 19)
    MOUNT ASSY (UPPER) (INCL. 18, 19)
  • 20
    7042215 SHOCK IFS, COMPRESSION
    SHOCK IFS, COMPRESSION
