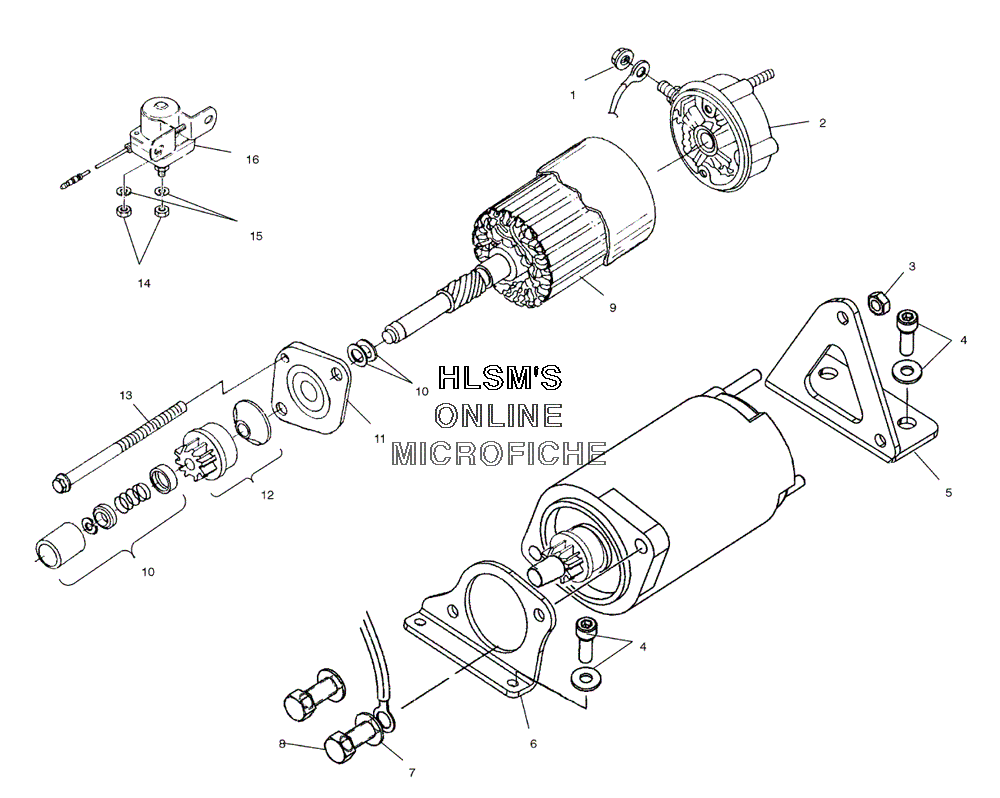

STARTING MOTOR (700)(800) для Polaris 700 CLASSIC TOURING (S04NT7CS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 2
    2200759 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 3
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 4
    7517957 SCR-M8X1.25X20, HX/SOC SEMS, 9.8
    SCR-M8X1.25X20, HX/SOC SEMS, 9.8
  • 5
    5245780 BRKT-STARTER, REAR
    BRKT-STARTER, REAR
  • 6
    5245781 BRKT-STARTER, FRONT
    BRKT-STARTER, FRONT
  • 7
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7512492 SCREW
    SCREW
  • 9
    2200756 KIT, ARMATURE ASM.
    KIT, ARMATURE ASM.
  • 10
    2200755 KIT, DRIVE HARDWARE
    KIT, DRIVE HARDWARE
  • 11
    2200757 KIT, DRIVE CAP ASM.
    KIT, DRIVE CAP ASM.
  • 12
    2200754 KIT, DRIVE ASM.
    KIT, DRIVE ASM.
  • 13
    2200753 KIT, SCREW
    KIT, SCREW
  • 14
    3082939 NUT
    NUT
  • 15
    3080077 WASHER SPRING
    WASHER SPRING
  • 16
    3083211 SWITCH-MAGNETIC (INCL. 14, 15)
    SWITCH-MAGNETIC (INCL. 14, 15)
  • -
    2200758 KIT, COMMUTATOR CAP ASM. (INCL. 2)
    KIT, COMMUTATOR CAP ASM. (INCL. 2)
  • -
    4170006 MOTOR-STARTER, DOMESTIC
    MOTOR-STARTER, DOMESTIC
