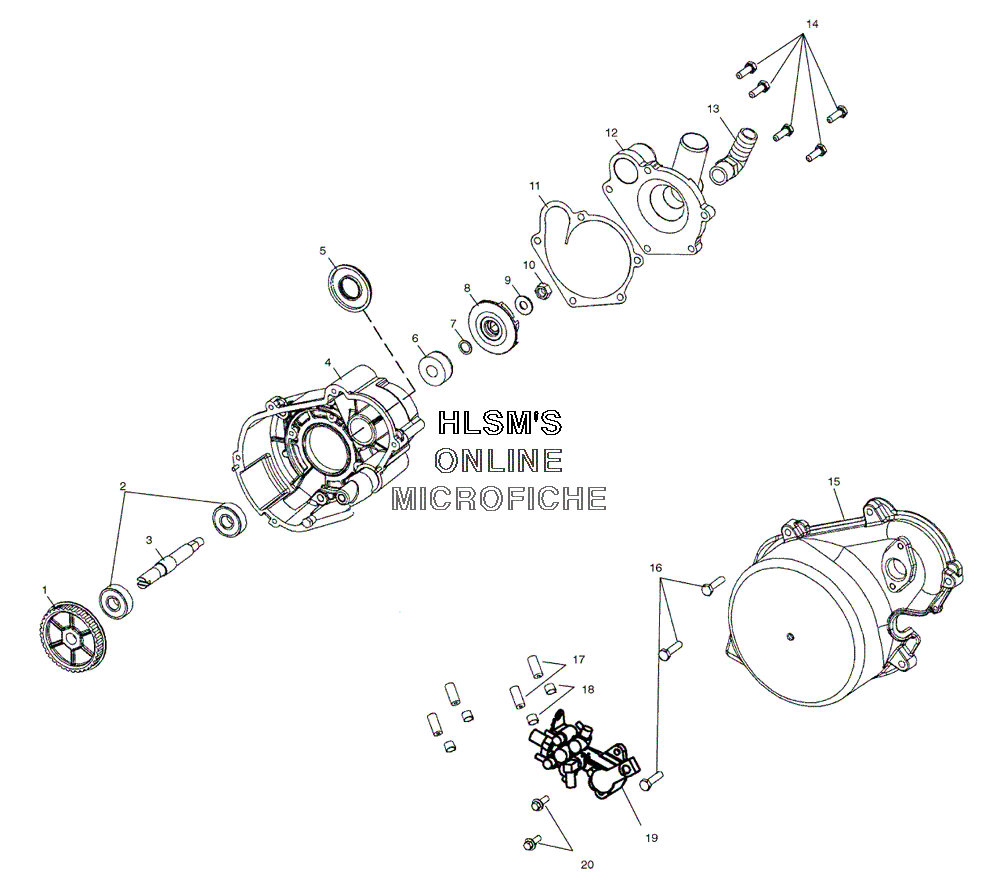

WATER PUMP/OIL PUMP (700) для Polaris 700 CLASSIC TOURING EURO (S04NT7CE) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3021044 PULLEY-17.00
    PULLEY-17.00
  • 2
    3514311 BEARING, BALL, SLD.DGRV.
    BEARING, BALL, SLD.DGRV.
  • 3
    5132273 SHAFT-17.00
    SHAFT-17.00
  • 5
    3610044 SEAL
    SEAL
  • 6
    3610067 SEAL
    SEAL
  • 7
    7556006 WASHER, FLAT, SS.
    WASHER, FLAT, SS.
  • 8
    5432330 IMPELLER
    IMPELLER
  • 9
    7555874 WASHER, FLAT, S.S.
    WASHER, FLAT, S.S.
  • 10
    7546804 NUT, HEX, , NYLOK
    NUT, HEX, , NYLOK
  • 11
    5811627 GASKET, COVER
    GASKET, COVER
  • 12
    5631280 COVER-WATERPUMP, 700B, W/O NTP
    COVER-WATERPUMP, 700B, W/O NTP
  • 13
    7052221 FITTING-90°, 3/8 NPT, 5/8ID HOSE
    FITTING-90°, 3/8 NPT, 5/8ID HOSE
  • 14
    7516822 SCREW
    SCREW
  • 16
    7516823 SCREW
    SCREW
  • 17
    8450061-82 LINE, FUEL, 3MMX7MM
    LINE, FUEL, 3MMX7MM
  • 18
    7080603 CLAMP
    CLAMP
  • 19
    2540102 ASM-OIL PUMP REV 3Y4M136-025
    ASM-OIL PUMP REV 3Y4M136-025
  • 20
    7516607 SCREW
    SCREW
