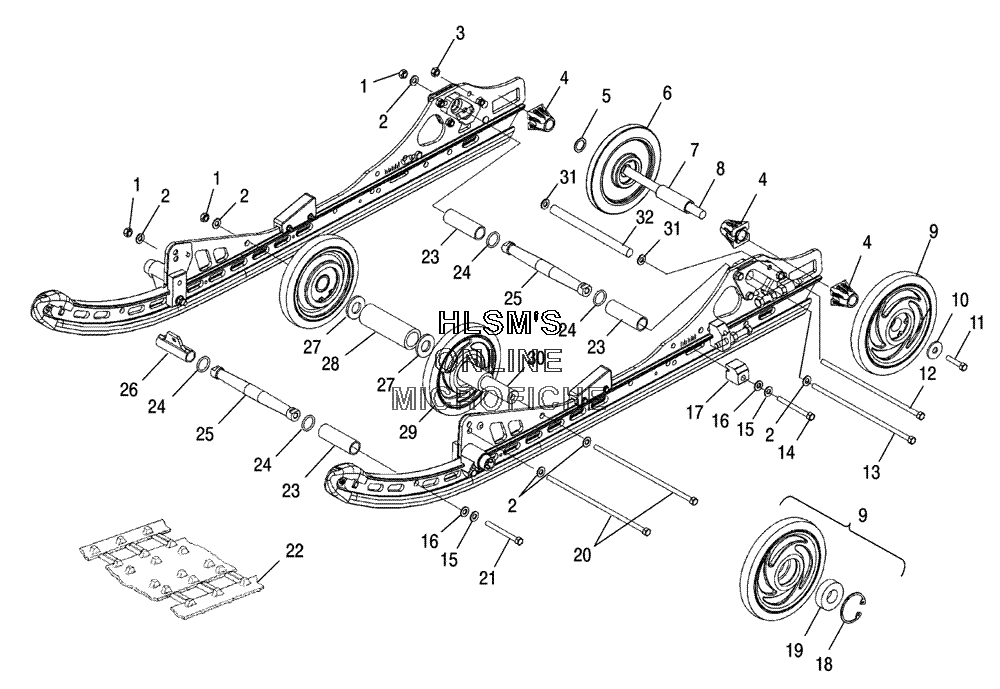

SUSPENSION - REAR (M-10) (M-10 ACE) для Polaris 700 CLASSIC (S04ND7CS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 3
    7547064 NUT, NYLOK
    NUT, NYLOK
  • 4
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 5
    7555918 BUSHING
    BUSHING
  • 6
    1590307 WHEEL, IDLER ASSY 6.0 OD PLAIN
    WHEEL, IDLER ASSY 6.0 OD PLAIN
  • 7
    5333285 SPACER, IDLER LONG
    SPACER, IDLER LONG
  • 8
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 9
    1590305-244 WHEEL, IDLER GEN II (M-10) (SILVER)
    WHEEL, IDLER GEN II (M-10) (SILVER)
  • 10
    7556130 WASGER
    WASGER
  • 11
    7517731 BOLT
    BOLT
  • 12
    7517896 SCREW, HEXAGON HEAD CAP-Y
    SCREW, HEXAGON HEAD CAP-Y
  • 13
    7517821 SCREW, HEXAGON HEAD CAP-Y
    SCREW, HEXAGON HEAD CAP-Y
  • 14
    7517856 SCREW HEXAGON CAP (M-10 ONLY)
    SCREW HEXAGON CAP (M-10 ONLY)
  • 15
    7552603 WASHER, SPRING LOCK (QTY. 2 ACE)
    WASHER, SPRING LOCK (QTY. 2 ACE)
  • 16
    7556042 WASHER, FLAT (QTY. 2 ACE)
    WASHER, FLAT (QTY. 2 ACE)
  • 17
    5132583 BLOCK SHOCK PIVOT ADJUST (M-10 ONLY)
    BLOCK SHOCK PIVOT ADJUST (M-10 ONLY)
  • 18
    7710444 RING, RETAINING
    RING, RETAINING
  • 19
    3514384 BEARING
    BEARING
  • 20
    7517921 SCREW HEXAGON/LP
    SCREW HEXAGON/LP
  • 21
    7517857 SCREW HEXAGON CAP
    SCREW HEXAGON CAP
  • 22
    5411994 TRACK, 121"X1" SHOCKWAVE
    TRACK, 121"X1" SHOCKWAVE
  • 22
    5222840 CLIP, GUIDE
    CLIP, GUIDE
  • 23
    5333902 SPACER SHOCK CENTERING (QTY. 1 ACE)
    SPACER SHOCK CENTERING (QTY. 1 ACE)
  • 24
    5411965 O-RING (.875ID X .125 DIA)
    O-RING (.875ID X .125 DIA)
  • 24
    5411092 O-RING (ACE)
    O-RING (ACE)
  • 25
    5132793 SHAFT TAPERED (QTY. 1 ACE)
    SHAFT TAPERED (QTY. 1 ACE)
  • 26
    5132586 LIMITER STRAP ATTACH (LOWER) (LIMITER, STRAP)
    LIMITER STRAP ATTACH (LOWER) (LIMITER, STRAP)
  • 27
    7556301 BUSHING
    BUSHING
  • 28
    5330394 SPACER BOGIE (INNER)
    SPACER BOGIE (INNER)
  • 29
    1541530-244 WHEEL, ASSY W/IN (5.35, .75ID) (BRIGHT SILVER)
    WHEEL, ASSY W/IN (5.35, .75ID) (BRIGHT SILVER)
  • 30
    5132490 SHAFT
    SHAFT
  • 31
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 32
    5333477-067 TUBE (BLACK)
    TUBE (BLACK)
