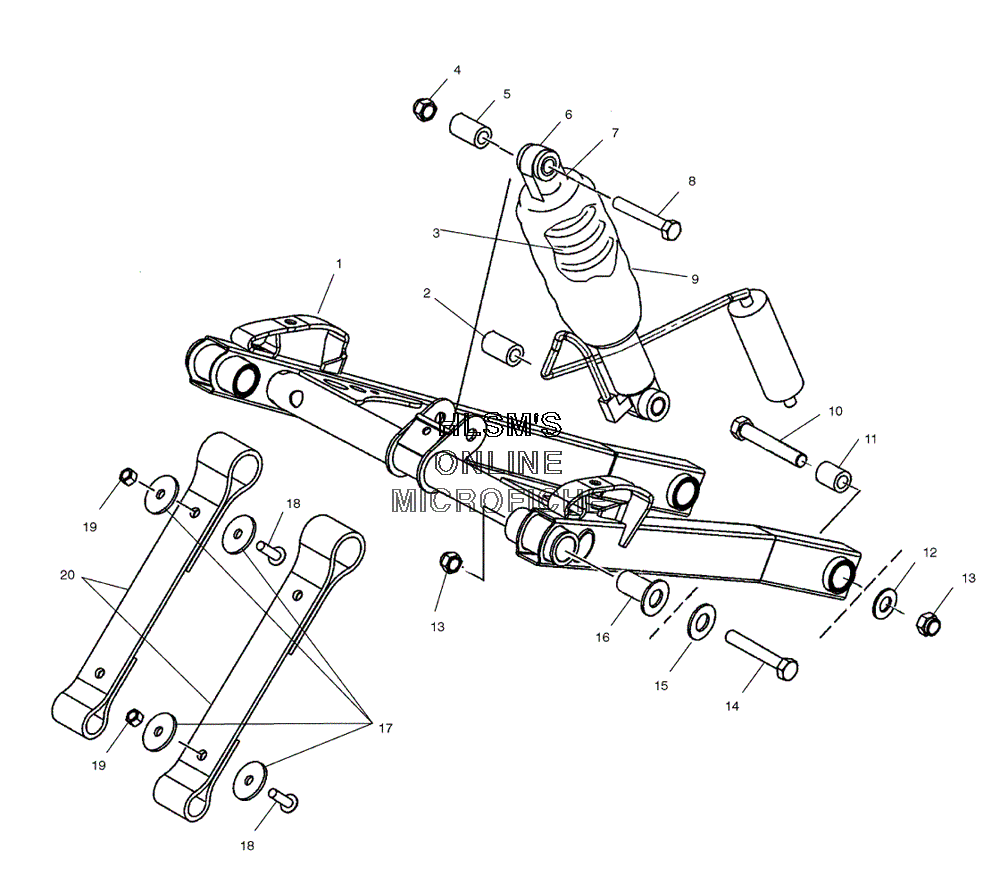

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 600 PRO X (S04NX6ES) - 2004 года выпуска`
-
№АртикулНазвание
-
11541825-067 TORQUE ARM ASSY (FRONT/BLACK)TORQUE ARM ASSY (FRONT/BLACK)
-
25333906 SLEEVESLEEVE
-
37041677-067 SPRING COMPRESSION (BLACK)SPRING COMPRESSION (BLACK)
-
47542439 NUT, NYLOKNUT, NYLOK
-
55333905 SLEEVESLEEVE
-
67042214 SHOCK TRACK, ARVIN (FRONT)SHOCK TRACK, ARVIN (FRONT)
-
75020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
87515415 SCREWSCREW
-
95430671 SHIELD SPRINGSHIELD SPRING
-
107517995 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
115133365 SHAFTSHAFT
-
127556156 WASHERWASHER
-
137547066 NUT, NYLOK YNUT, NYLOK Y
-
147512551 BOLTBOLT
-
157555984 WASHER, FLATWASHER, FLAT
-
165133364 SHAFTSHAFT
-
177556175 WASHER FLANGEWASHER FLANGE
-
187517313 SCREWSCREW
-
197542344 NUT, NYLOKNUT, NYLOK
-
205412192 STRAP LIMITERSTRAP LIMITER
