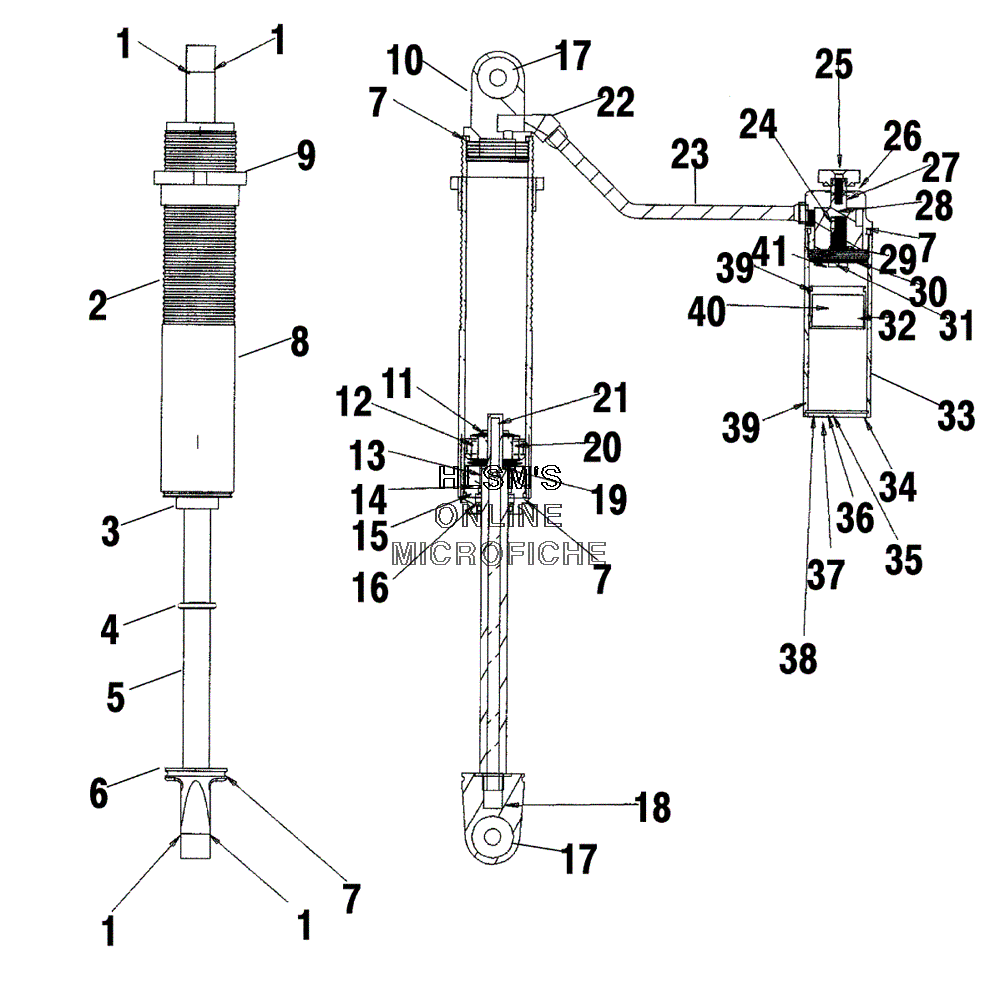

SUSPENSION - IFS SHOCK для Polaris 600 PRO X 2 (S04NX6ES) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1800041 END BEARING SNAP RING
    END BEARING SNAP RING
  • 2
    1800100 IFS-THREADED BODY
    IFS-THREADED BODY
  • 3
    1800131 SHAFT SEAL HOUSING ASSY
    SHAFT SEAL HOUSING ASSY
  • 4
    1800095 O-RING
    O-RING
  • 5
    1800102 SHAFT (9.123")
    SHAFT (9.123")
  • 6
    1800116 SPRING RETAINING RING
    SPRING RETAINING RING
  • 7
    1800027 O-RING BODY
    O-RING BODY
  • 8
    1800191 WEAR SLEEVE
    WEAR SLEEVE
  • 9
    1800046 SPRING RETAINER
    SPRING RETAINER
  • 10
    1800098 LOOP BODY
    LOOP BODY
  • 11
    1800050 AN WASHER (3/8")
    AN WASHER (3/8")
  • 12
    1800197 PISTON WITH BAND .076 ASSY (GOLD)
    PISTON WITH BAND .076 ASSY (GOLD)
  • 13
    1800038 SHAFT BUSHING
    SHAFT BUSHING
  • 14
    1800037 O-RING SHAFT SEAL HEAD
    O-RING SHAFT SEAL HEAD
  • 15
    1800035 SHAFT SEAL U CUP
    SHAFT SEAL U CUP
  • 16
    1800034 WIPER D/TYPE
    WIPER D/TYPE
  • 17
    1800040 END BEARING
    END BEARING
  • 18
    1800103 EYELET
    EYELET
  • 19
    1800194 WASHER
    WASHER
  • 20
    1800026 WEAR BAND
    WEAR BAND
  • 21
    1800031 CRIMP NUT (3/8")
    CRIMP NUT (3/8")
  • 22
    1800193 FITTING (1/8, 90)
    FITTING (1/8, 90)
  • 23
    1800192 HOSE ASSY (9")
    HOSE ASSY (9")
  • 24
    1800195 DRUM
    DRUM
  • 25
    1800123 KNOB
    KNOB
  • 25
    1800196 SCREW
    SCREW
  • 26
    1800126 HOUSING ADJUSTOR
    HOUSING ADJUSTOR
  • 26
    1800127 BALL D TENT
    BALL D TENT
  • 26
    1800128 SPRING D TENT
    SPRING D TENT
  • 26
    1800129 O-RING
    O-RING
  • 27
    1800094 O-RING
    O-RING
  • 28
    1800052 SHIM VALVE (.010X.700)
    SHIM VALVE (.010X.700)
  • 29
    1800125 BALL CHECK
    BALL CHECK
  • 30
    1800072 SHIM VALVE
    SHIM VALVE
  • 31
    1800124 BOLT BALL CHECK
    BOLT BALL CHECK
  • 32
    1800029 WEAR BAND
    WEAR BAND
  • 33
    1800120 BODY RESERVOIR
    BODY RESERVOIR
  • 34
    1800019 RESERVOIR SNAP RING
    RESERVOIR SNAP RING
  • 35
    1800107 VALVE NEEDLE
    VALVE NEEDLE
  • 36
    1800108 O-RING
    O-RING
  • 37
    1800109 SCREW BUTTON HEAD
    SCREW BUTTON HEAD
  • 38
    1800106 CAP END
    CAP END
  • 39
    1800028 O-RING RESERVOIR
    O-RING RESERVOIR
  • 40
    1800189 RESERVOIR PISTON WITH BLEED SCREW
    RESERVOIR PISTON WITH BLEED SCREW
  • 40
    1800190 BLEED SCREW WITH O-RING
    BLEED SCREW WITH O-RING
  • 41
    1800118 WASHER
    WASHER
  • 41
    7042296 SHOCK-IFS WALKER EVANS RES C/A
    SHOCK-IFS WALKER EVANS RES C/A
