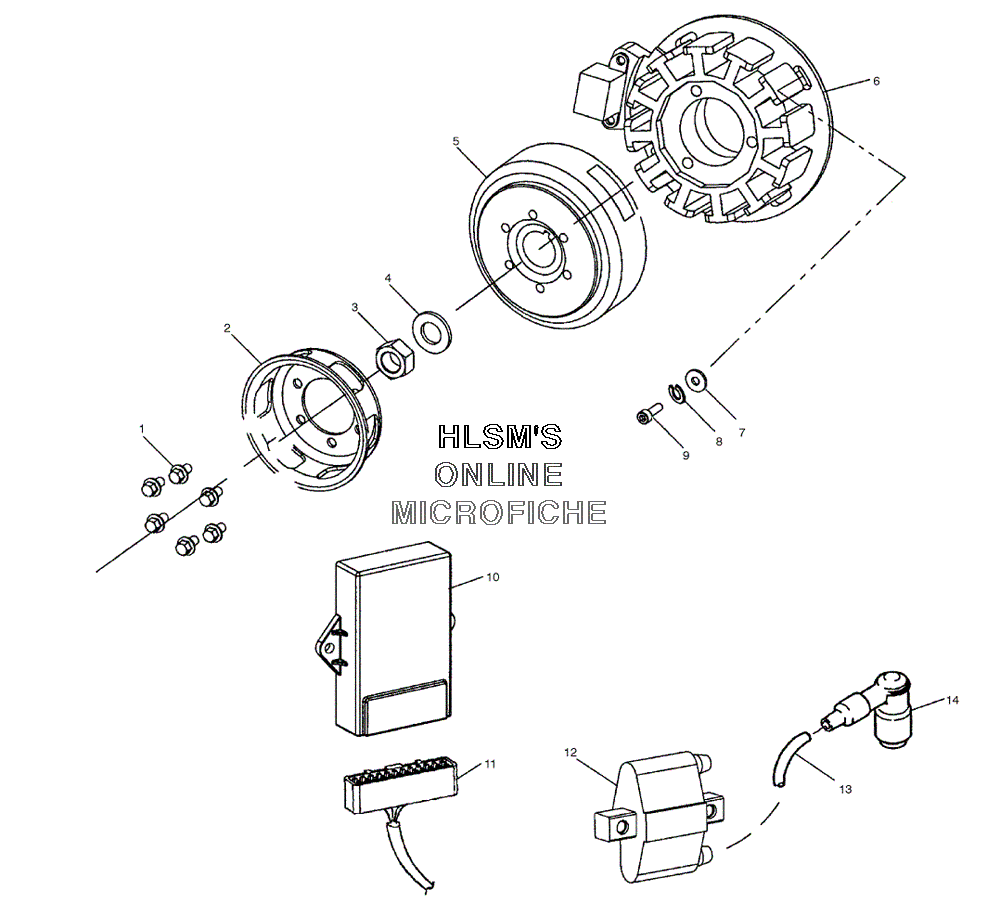

MAGNETO (600) для Polaris 600 CLASSIC TOURING (S04NT6ES) - 2004 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010677 FLYWHEEL-IGN 18°FLYWHEEL-IGN 18°
-
64060222 STATORSTATOR
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102202528 KIT-CDI, S60-44-4010830 (INCL. NYOGEL AND DECAL)KIT-CDI, S60-44-4010830 (INCL. NYOGEL AND DECAL)
-
114010811 HARNESS-IGN 16 BITHARNESS-IGN 16 BIT
-
124060229 COIL, IGNITION, KOKCOIL, IGNITION, KOK
-
134010124-305 WIRE, IGN, BULK, 305CM.WIRE, IGN, BULK, 305CM.
-
144020159 CAP, SPARK PLUGCAP, SPARK PLUG
