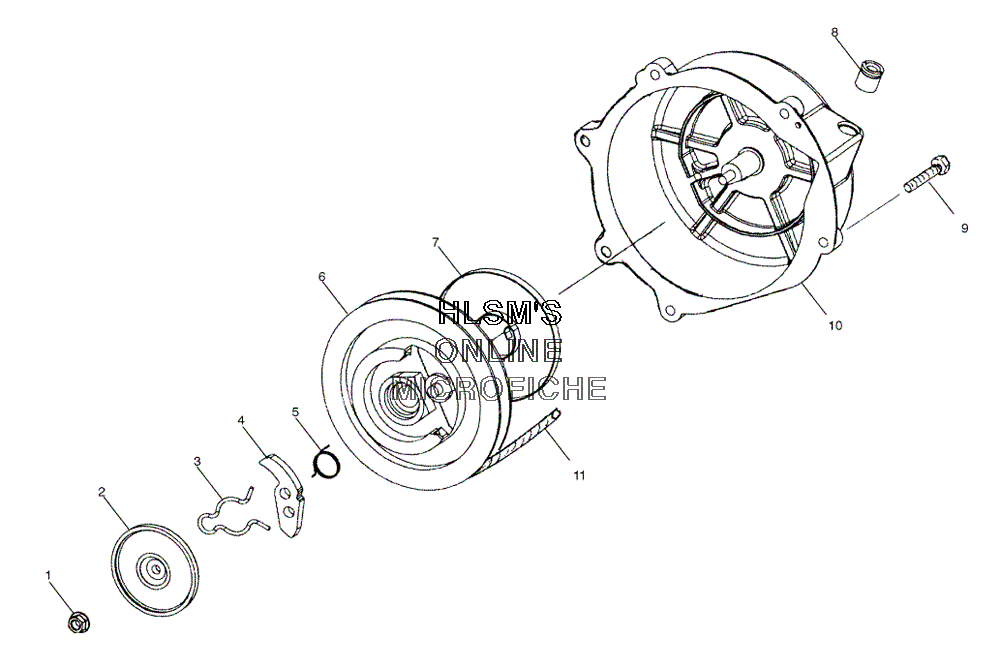

RECOIL STARTER (600) для Polaris 600 CLASSIC TOURING EURO (S04NT6EE) - 2004 года выпуска
-
№АртикулНазвание
-
13040163 NUTNUT
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 CLIPCLIP
-
45246108 RATCHET-PAWL ELEC REVRATCHET-PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040171 GUIDE-ROPEGUIDE-ROPE
-
97516827 SCREWSCREW
-
105630645 ASM-RECOIL ELECTRIC REVASM-RECOIL ELECTRIC REV
-
113040169 ROPE,STARTERROPE,STARTER
-
-1202298 ASM-RECOIL ELECTRIC REV (INCL. 1-7, 10, 11)ASM-RECOIL ELECTRIC REV (INCL. 1-7, 10, 11)
