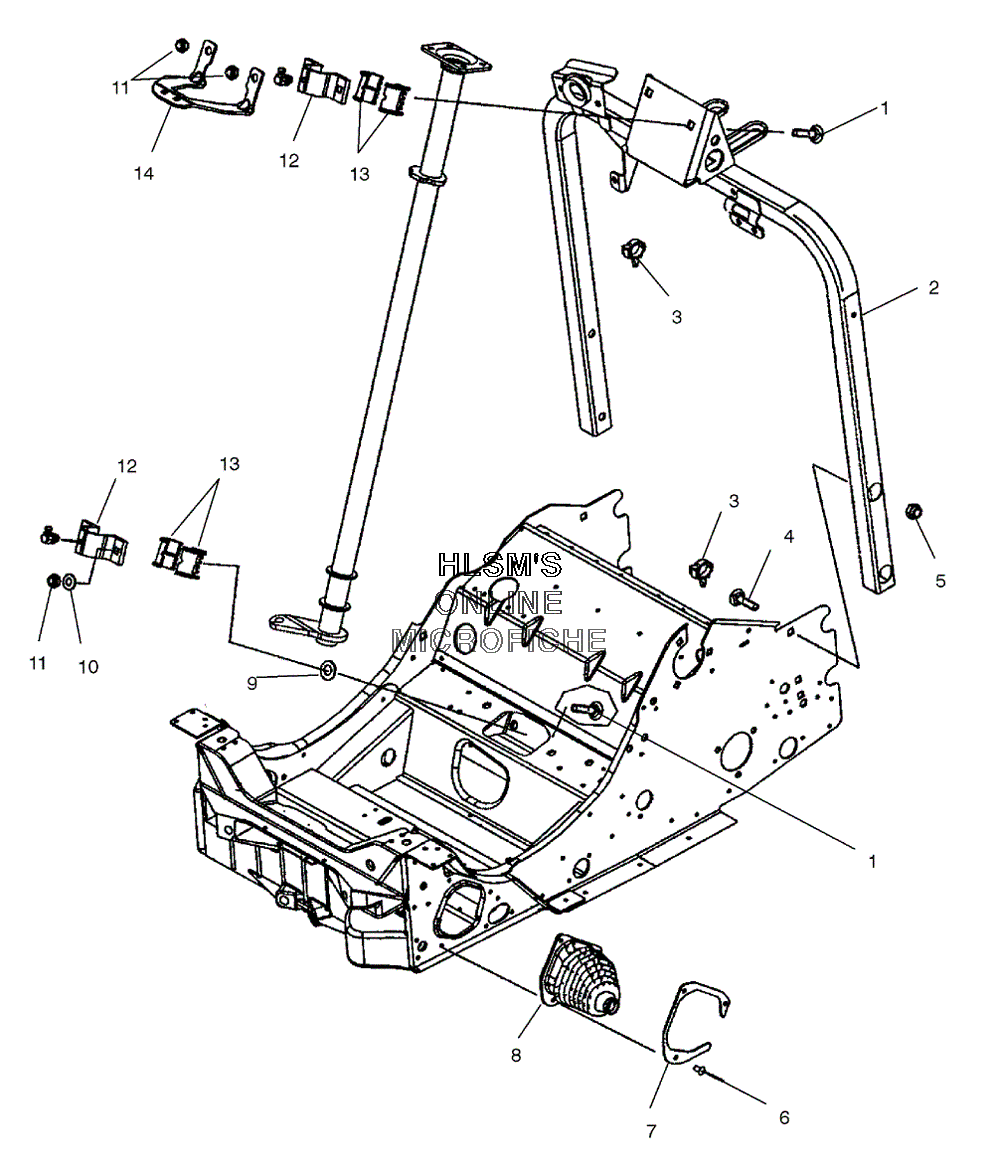

STEERING ASSEMBLY #2 для Polaris 550 CLASSIC (S05ND5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517579 BOLT CARRBOLT CARR
-
21013776-067 WELD STEERING HOOP (BLACK)WELD STEERING HOOP (BLACK)
-
34020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
47512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
57542343 NUT, FLANGENUT, FLANGE
-
67621433 RIVET (RIGHT)RIVET (RIGHT)
-
75244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
85433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
85433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
97547030 PALNUTPALNUT
-
107558402 WASHER, FLATWASHER, FLAT
-
117542324 NUT, NYLOKNUT, NYLOK
-
125133648 BRACKET STEERING POST, MODBRACKET STEERING POST, MOD
-
127080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
-
135432785 BUSHINGBUSHING
-
145245354 BRACKET, CONSOLE (STD) (FRONT)BRACKET, CONSOLE (STD) (FRONT)
