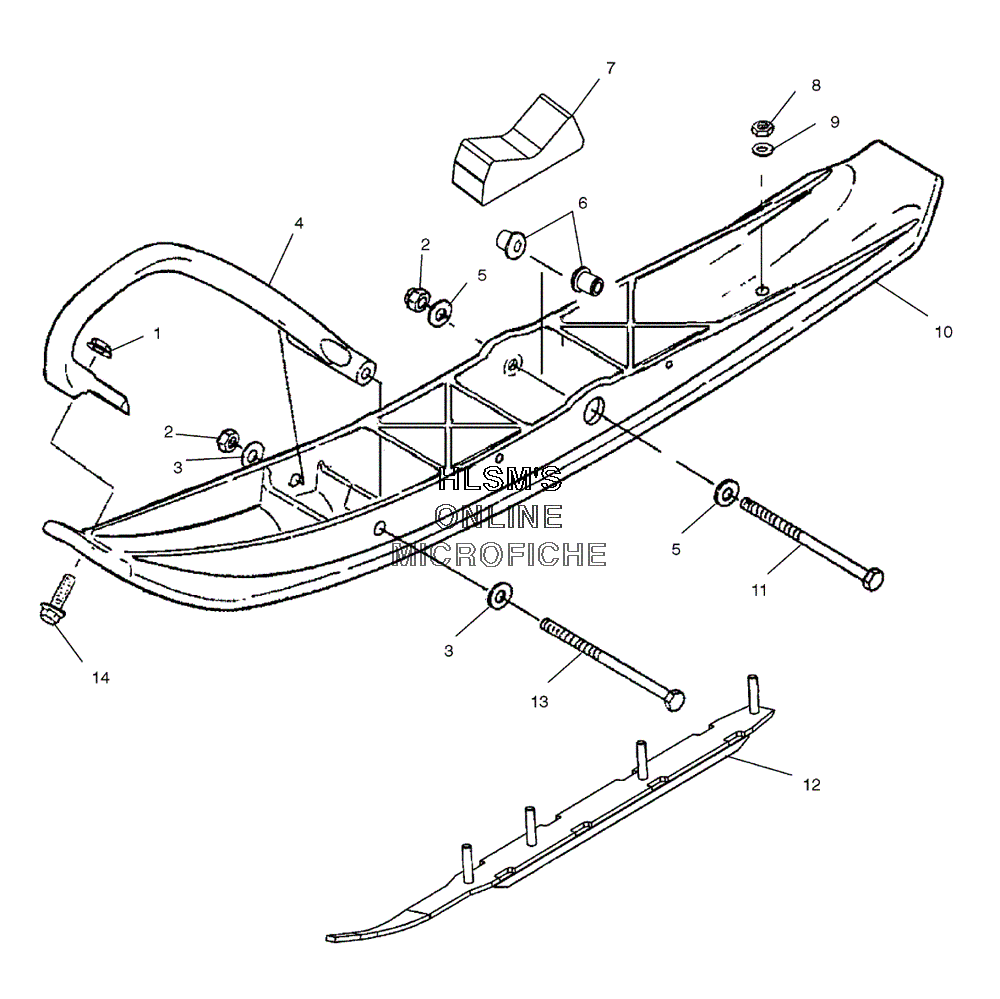

SKI ASSEMBLY для Polaris 550 CLASSIC (S05ND5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-385 TOE PLASTIC SKI (CLOUD SILVER)TOE PLASTIC SKI (CLOUD SILVER)
-
57556130 WASHERWASHER
-
65132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHERWASHER
-
101820929-070 COMP SKI ASSY, BLANK SVC (BLACK)COMP SKI ASSY, BLANK SVC (BLACK)
-
117517968 SCREW, HEXAGON CAPSCREW, HEXAGON CAP
-
122874752 SKAG, ACCU TRAC DUAL (4"X60 DEG)SKAG, ACCU TRAC DUAL (4"X60 DEG)
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
