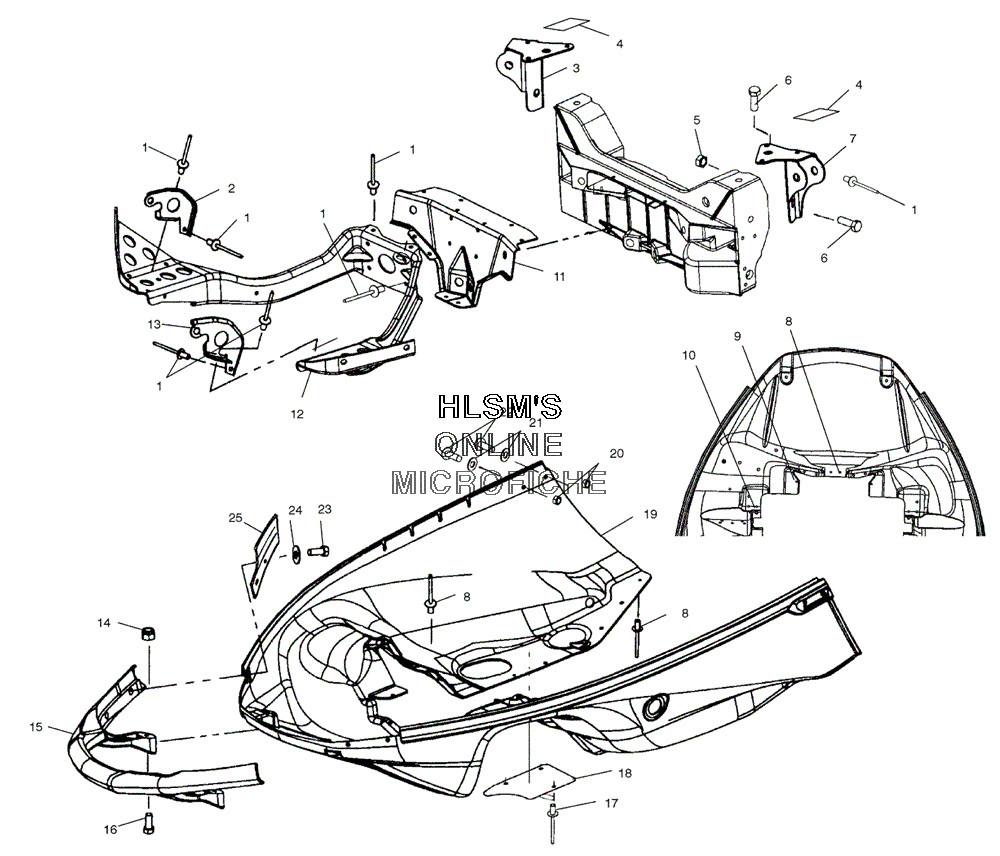

NOSEPAN ASSEMBLY #1 для Polaris 550 CLASSIC (S05ND5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK Z (RIGHT)RIVET, INTERLOCK Z (RIGHT)
-
25243992-067 HINGE PIVOT (BLACK) (RIGHT/LOWER)HINGE PIVOT (BLACK) (RIGHT/LOWER)
-
35243978 MOUNT, SHOCK BULK HEAD (RIGHT.UPPER)MOUNT, SHOCK BULK HEAD (RIGHT.UPPER)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT FLANGED, 3/8 16 NYLON ZNUT FLANGED, 3/8 16 NYLON Z
-
67517935 SCREW, HEXAGON SOCSCREW, HEXAGON SOC
-
75243977 MOUNT SHOCK BULK HEAD (UPPER/LEFT)MOUNT SHOCK BULK HEAD (UPPER/LEFT)
-
87621467 RIVET, BLIND (RIGHT)RIVET, BLIND (RIGHT)
-
97621431 RIVET (RIGHT)RIVET (RIGHT)
-
107661136 RVTRVT
-
115244049-067 BRACKET, RADIATOR ROD SUPPORT (BLACK)BRACKET, RADIATOR ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE PIVOT (LEFT/BLACK/LOWER)HINGE PIVOT (LEFT/BLACK/LOWER)
-
147542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
155433518-070 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVET (RIGHT)RIVET (RIGHT)
-
185245853 SHIELD, HEAT EXTENDEDSHIELD, HEAT EXTENDED
-
195434343-070 NOSEPAN GAS ASSIST (BLACK)NOSEPAN GAS ASSIST (BLACK)
-
207542122 NUT NYLOKNUT NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
255244889 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
