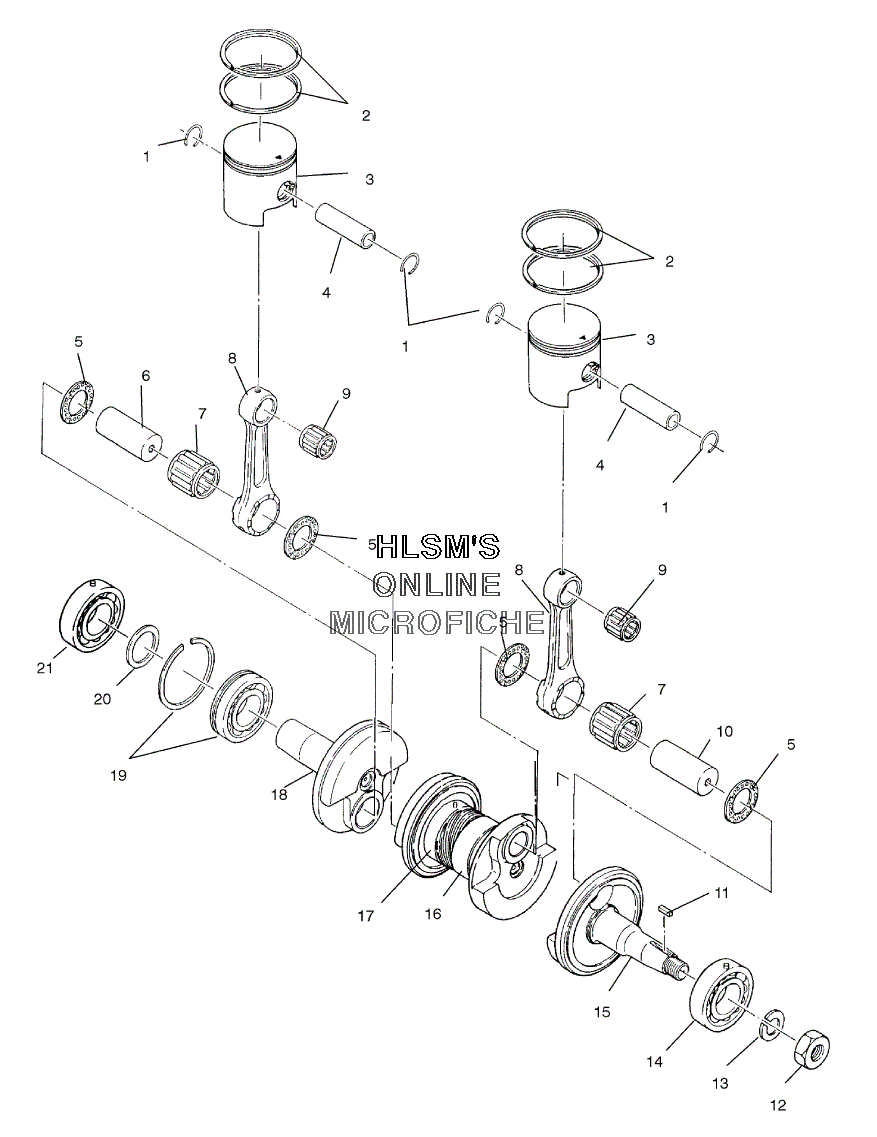

PISTON AND CRANKSHAFT для Polaris 500 INDY EDGE (S04NB4BS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3083839 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 2
    3084342 PISTON, RING (STANDARD)
    PISTON, RING (STANDARD)
  • 2
    3084343 SET, PISTON RING (0.25 O/S)
    SET, PISTON RING (0.25 O/S)
  • 2
    3084344 SET, PISTON RING (0.50 O/S)
    SET, PISTON RING (0.50 O/S)
  • 3
    3084339 SET, PISTON (STANDARD)
    SET, PISTON (STANDARD)
  • 3
    3084340 SET, PISTON (0.25 O/S)
    SET, PISTON (0.25 O/S)
  • 3
    3084341 SET, PISTON (0.50 O/S)
    SET, PISTON (0.50 O/S)
  • 4
    3083858 PIN, PISTON
    PIN, PISTON
  • 5
    3083277 SPACER, CRANKPIN
    SPACER, CRANKPIN
  • 6
    3083456 PIN, CRANK (57MM)
    PIN, CRANK (57MM)
  • 7
    3085628 BEARING, LARGE END
    BEARING, LARGE END
  • 8
    3083252 ROD CONNECTING
    ROD CONNECTING
  • 9
    3083216 BEARING SMALL END
    BEARING SMALL END
  • 10
    3083233 PIN, CRANK 1 (56MM)
    PIN, CRANK 1 (56MM)
  • 11
    3080130 KEY WOODRUFF
    KEY WOODRUFF
  • 12
    3083093 NUT
    NUT
  • 13
    3083094 WASHER SPRING
    WASHER SPRING
  • 14
    3086878 BEARING, BALL
    BEARING, BALL
  • 15
    3087260 CRANKSHAFT (INCL. 5-8, 10, 14, 16-21)
    CRANKSHAFT (INCL. 5-8, 10, 14, 16-21)
  • 15
    3086835 CRANKSHAFT 1 (MAG SIDE)
    CRANKSHAFT 1 (MAG SIDE)
  • 16
    3083713 CRANKSHAFT 2 (INCL. 6, 10)
    CRANKSHAFT 2 (INCL. 6, 10)
  • 17
    3084601 BEARING, BALL
    BEARING, BALL
  • 18
    3087261 CRANKSHAFT 3 (PTO SIDE)
    CRANKSHAFT 3 (PTO SIDE)
  • 19
    3085204 BALL BEARING
    BALL BEARING
  • 20
    3085203 SPACER
    SPACER
  • 21
    3085205 BALL BEARING
    BALL BEARING
