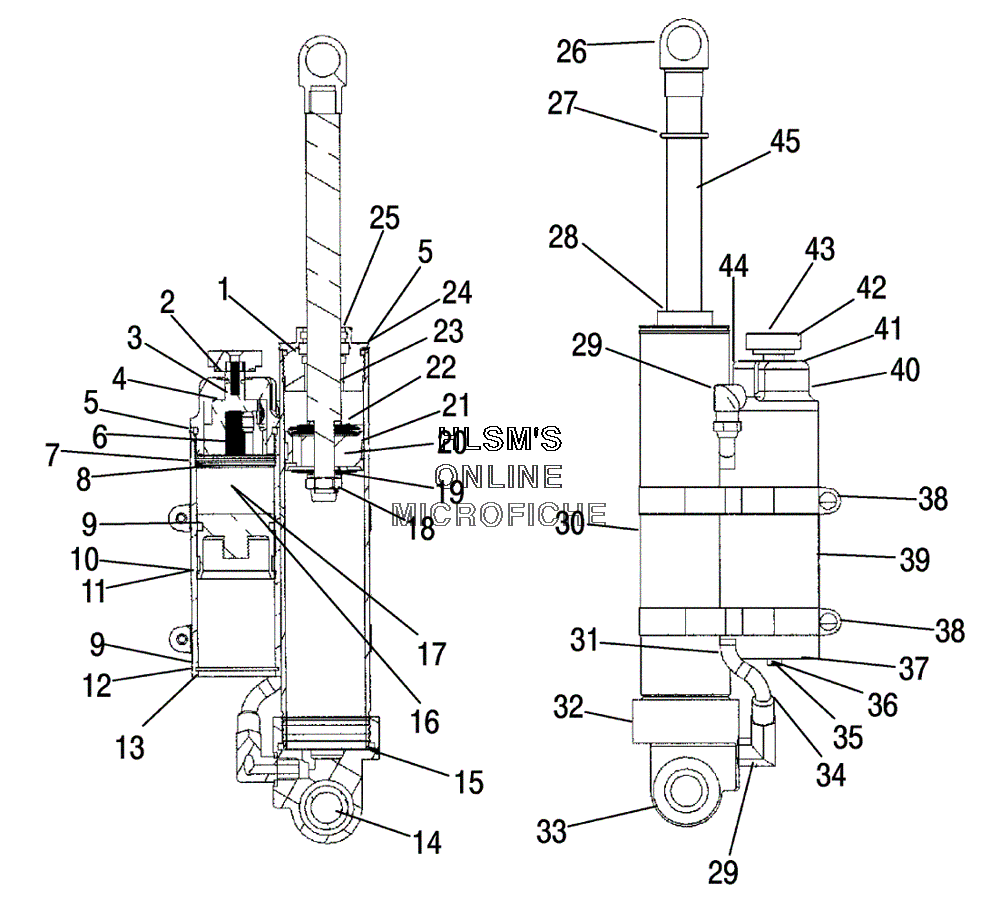

SUSPENSION - REAR SHOCK TRACK для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска`
-
№АртикулНазвание
-
11800207 SEAL SHAFTSEAL SHAFT
-
21800129 O-RINGO-RING
-
31800094 O-RINGO-RING
-
41800052 SHIM VALVESHIM VALVE
-
51800027 O-RING BODYO-RING BODY
-
61800202 DRUMDRUM
-
71800091 VALVEVALVE
-
81800204 WASHERWASHER
-
91800028 O-RING RESERVOIRO-RING RESERVOIR
-
101800029 WEAR BANDWEAR BAND
-
111800189 RESERVOIR PISTON WITH BLEED SCREWRESERVOIR PISTON WITH BLEED SCREW
-
111800190 BLEED SCREW WITH OUT RINGBLEED SCREW WITH OUT RING
-
121800019 RESERVOIR SNAP RINGRESERVOIR SNAP RING
-
131800106 CAP ENDCAP END
-
141800032 SLEEVE (1.202")SLEEVE (1.202")
-
151800030 O-RING BODYO-RING BODY
-
161800124 BOLT BALL CHECKBOLT BALL CHECK
-
171800125 BALL CHECKBALL CHECK
-
181800031 CRIMP NUT (3/8")CRIMP NUT (3/8")
-
191800050 WASHER (3/8")WASHER (3/8")
-
201800200 PISTON WITH BAND ASSYPISTON WITH BAND ASSY
-
211800026 WEAR BANDWEAR BAND
-
221800118 WASHERWASHER
-
231800038 SHAFT BUSHINGSHAFT BUSHING
-
241800037 O-RING SHAFT SEAL HEADO-RING SHAFT SEAL HEAD
-
251800034 WIPER D/TYPEWIPER D/TYPE
-
261800096 EYELETEYELET
-
271800095 O-RINGO-RING
-
281800131 SHAFT SEAL HOUSING ASSYSHAFT SEAL HOUSING ASSY
-
291800113 ELBOW 1/8" NPTELBOW 1/8" NPT
-
301800101 BODY RTBODY RT
-
311800212 HOSEHOSE
-
321800097 LOOP BODYLOOP BODY
-
331800036 BUSHING URETHANEBUSHING URETHANE
-
341800115 FITTING (1/8")FITTING (1/8")
-
351800109 SCREW BUTTON HEADSCREW BUTTON HEAD
-
361800107 VALVE NEEDLEVALVE NEEDLE
-
371800108 O-RINGO-RING
-
381800022 CLAMP HOSECLAMP HOSE
-
391800213 BODY RESERVOIRBODY RESERVOIR
-
401800126 HOUSING ADJUSTORHOUSING ADJUSTOR
-
411800127 BALL D TENTBALL D TENT
-
421800123 KNOBKNOB
-
431800196 SCREWSCREW
-
441800128 SPRING D TENTSPRING D TENT
-
451800010 SHAFTSHAFT
-
457042295 SHOCK TRACK (REAR)SHOCK TRACK (REAR)
