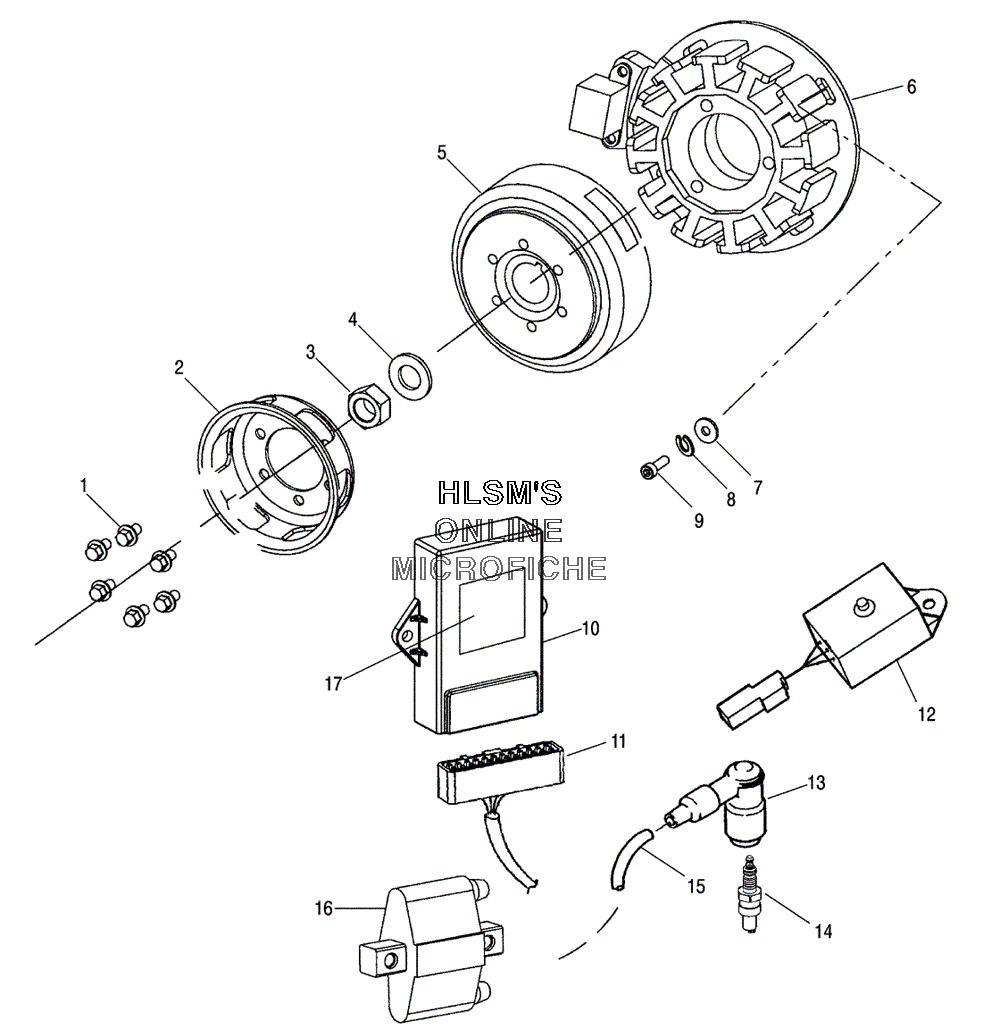

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010629 FLYWHEEL IGNITION SNO KOK W/O GLUEFLYWHEEL IGNITION SNO KOK W/O GLUE
-
64060222 STATORSTATOR
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102202478 CDI KIT (INCL. NYOGEL AND DECAL)CDI KIT (INCL. NYOGEL AND DECAL)
-
114010860 HARNESS IGNITION KOKHARNESS IGNITION KOK
-
124010329 SWITCH IGNITION, TIMINGSWITCH IGNITION, TIMING
-
134020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
143070190 SPARK PLUG, CHAMPIONSPARK PLUG, CHAMPION
-
154010124-305 WIRE, IGNITION BULK (305CM)WIRE, IGNITION BULK (305CM)
-
164060229 COIL, IGNITIONCOIL, IGNITION
-
177077187 DECAL, PATENT PENDINGDECAL, PATENT PENDING
