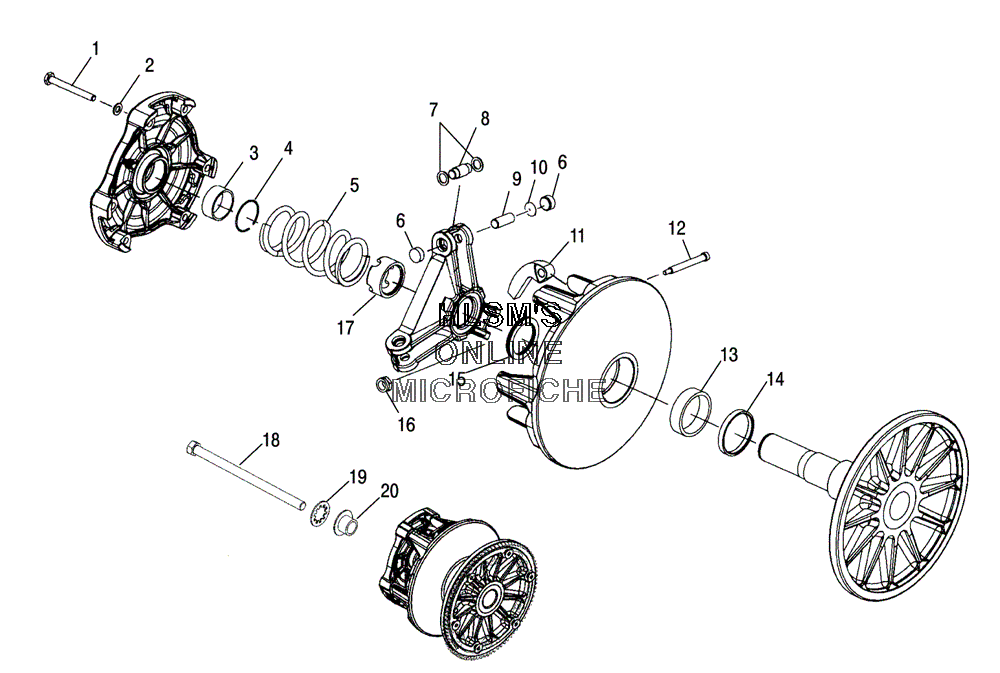

CLUTCH - DRIVE для Polaris 440 PRO XR (S04NX4CS) - 2004 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING COVERRING, RETAINING COVER
-
57041988 SPRING CLUTCH DRIVE (ALMOND/RED)SPRING CLUTCH DRIVE (ALMOND/RED)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133079 PIN ROLLER, 1" SBNPIN ROLLER, 1" SBN
-
102200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
111321731 WT/BUSH.ASSY (RED) (HIGH OCTANE)WT/BUSH.ASSY (RED) (HIGH OCTANE)
-
111321730 WEIGHT/BUSHING ASSY (92 OCTANE HEAD KIT)WEIGHT/BUSHING ASSY (92 OCTANE HEAD KIT)
-
127515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155210754 SPACER (.050)SPACER (.050)
-
155210753 SPACER (.032)SPACER (.032)
-
155242981 SPACER (.025)SPACER (.025)
-
155210752 SPACER (.020)SPACER (.020)
-
167541906 NUT FLEXLOCNUT FLEXLOC
-
175020425 NUT, JAMNUT, JAM
-
187517501 SCREWSCREW
-
197556003 WASHERWASHER
-
205131872 WASHER CLUTCH RETAINERWASHER CLUTCH RETAINER
-
201322409 DRIVE CLUTCH, W/B ASSY (INCL. ALL LESS 5, 11)DRIVE CLUTCH, W/B ASSY (INCL. ALL LESS 5, 11)
