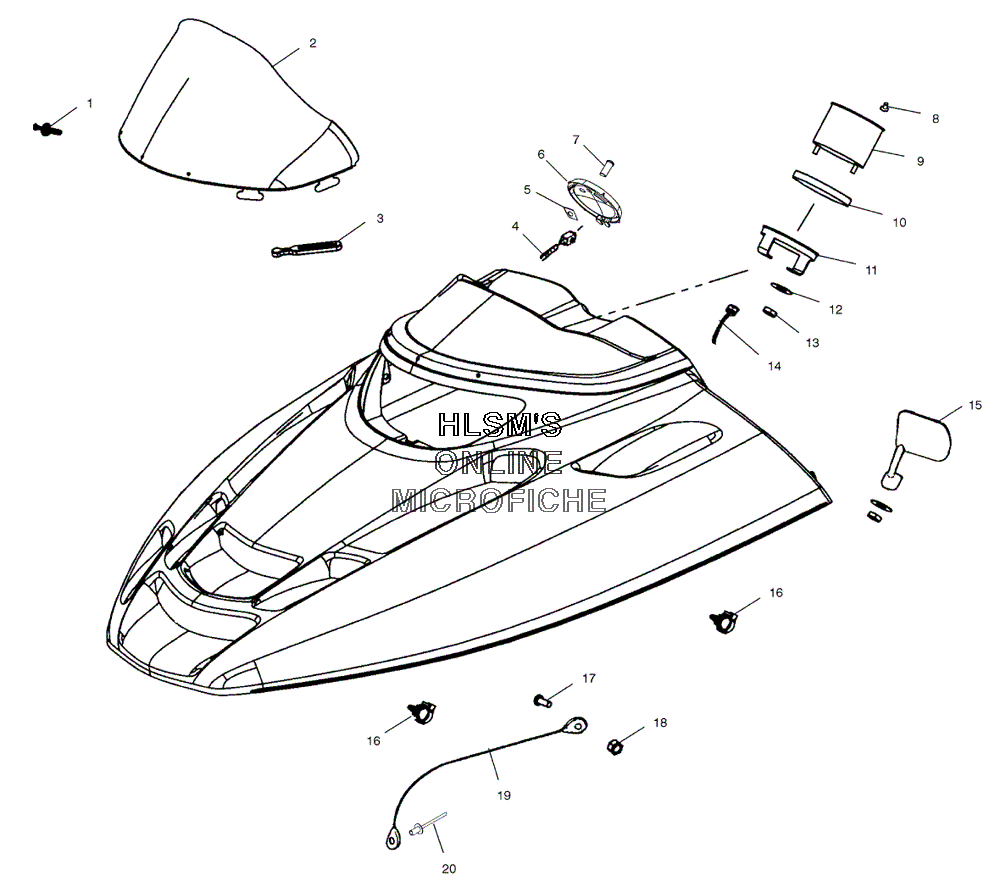

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 340 INTERNATIONAL (S04NB3AS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7621509 RIVET, PLASTI LOCK
    RIVET, PLASTI LOCK
  • 2
    5434933 WINDSHIELD 15" FLR SMOKE/GRAPH (INDY)
    WINDSHIELD 15" FLR SMOKE/GRAPH (INDY)
  • 2
    5435045 WINDSHIELD 15" FLR SMOKE/GRAPH (CLASSIC)
    WINDSHIELD 15" FLR SMOKE/GRAPH (CLASSIC)
  • 3
    5410970 RETAINER, WINDSHIELD,
    RETAINER, WINDSHIELD,
  • 4
    2461031 HARNESS JUMPER, REVERSE LIGHT
    HARNESS JUMPER, REVERSE LIGHT
  • 5
    7670133 RETAINER 1/2" BOLT/LAMP
    RETAINER 1/2" BOLT/LAMP
  • 6
    5434081 PLUG DASH, 5" W/SINGLE 1/2"HOLE
    PLUG DASH, 5" W/SINGLE 1/2"HOLE
  • 7
    4010687 INDICATOR REVERSE, 1/2 DIA
    INDICATOR REVERSE, 1/2 DIA
  • 8
    3280186 KNOB, TRIP ODOMETER (LEFT) THD.
    KNOB, TRIP ODOMETER (LEFT) THD.
  • 9
    3280411 ASSY. SPD, 5" 120MPH, WH/BK, W/O AN
    ASSY. SPD, 5" 120MPH, WH/BK, W/O AN
  • 9
    4030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETER
    BULB TAILLIGHT/TACHOMETER/SPEEDOMETER
  • 10
    3280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBER
    CUSHION, TACHOMETER/SPEEDOMETER, RUBBER
  • 11
    3280210 BRACKET, TACHOMETER/SPEEDOMETER 5"
    BRACKET, TACHOMETER/SPEEDOMETER 5"
  • 12
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 13
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 14
    3280385 CABLE SPEEDOMETER
    CABLE SPEEDOMETER
  • 15
    7546703 NUT, NYLOK (CLASSIC)
    NUT, NYLOK (CLASSIC)
  • 16
    4010589 CLIP PLASTIC, DART NYLON
    CLIP PLASTIC, DART NYLON
  • 17
    7512018 SCREW
    SCREW
  • 18
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 19
    7080521 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 20
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
