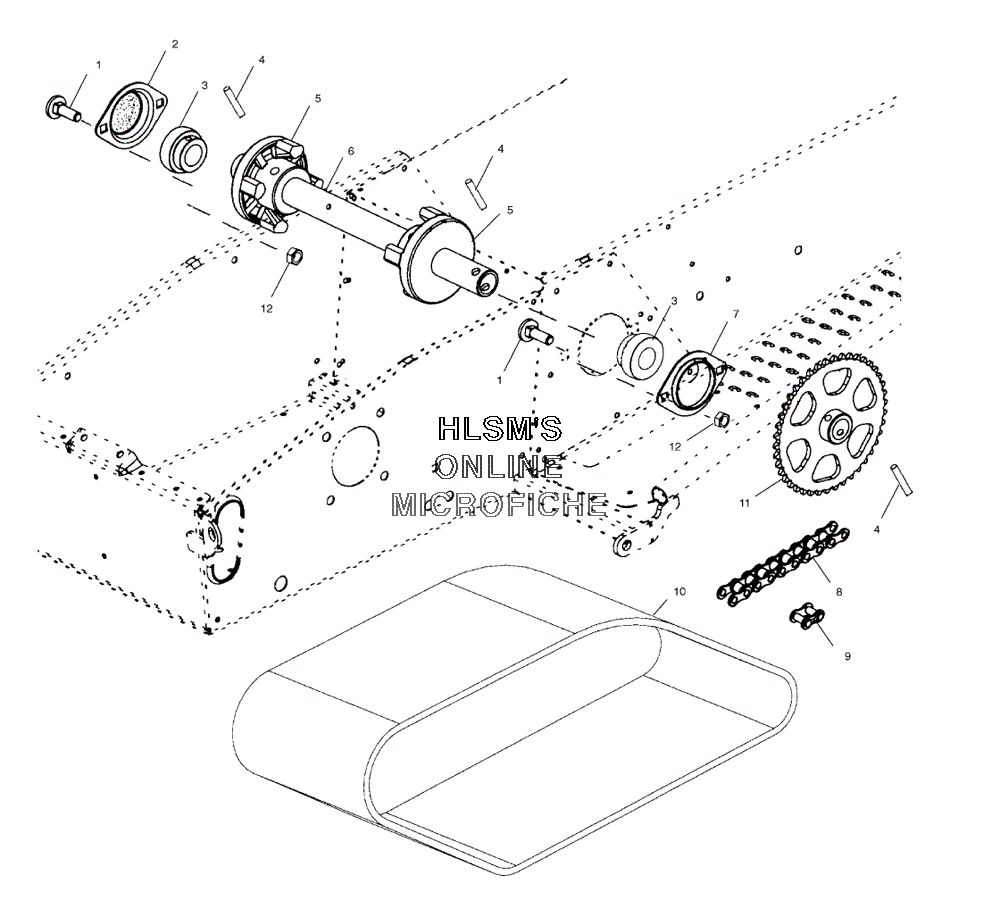

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 120 PRO X (S04WB1AS) - 2004 года выпуска`
-
№АртикулНазвание
-
17517736 BOLT, CARRBOLT, CARR
-
25244302 FLANGE, 2 BOLT COVEREDFLANGE, 2 BOLT COVERED
-
33514338 BEARING 1" SET SCREWBEARING 1" SET SCREW
-
47661913 PIN, SPRINGPIN, SPRING
-
55433455 SPROCKET 4 LUGSPROCKET 4 LUG
-
66230172 SHAFT, DRIVESHAFT, DRIVE
-
75222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
83221116 CHAIN, ROLLERCHAIN, ROLLER
-
93221122 LINK, CONNECTINGLINK, CONNECTING
-
105411751-070 RRACK TRI STARRRACK TRI STAR
-
111013095 SPROCKET, SHAFT (42T / 1")SPROCKET, SHAFT (42T / 1")
-
127542344 NUT, NYLOKNUT, NYLOK
