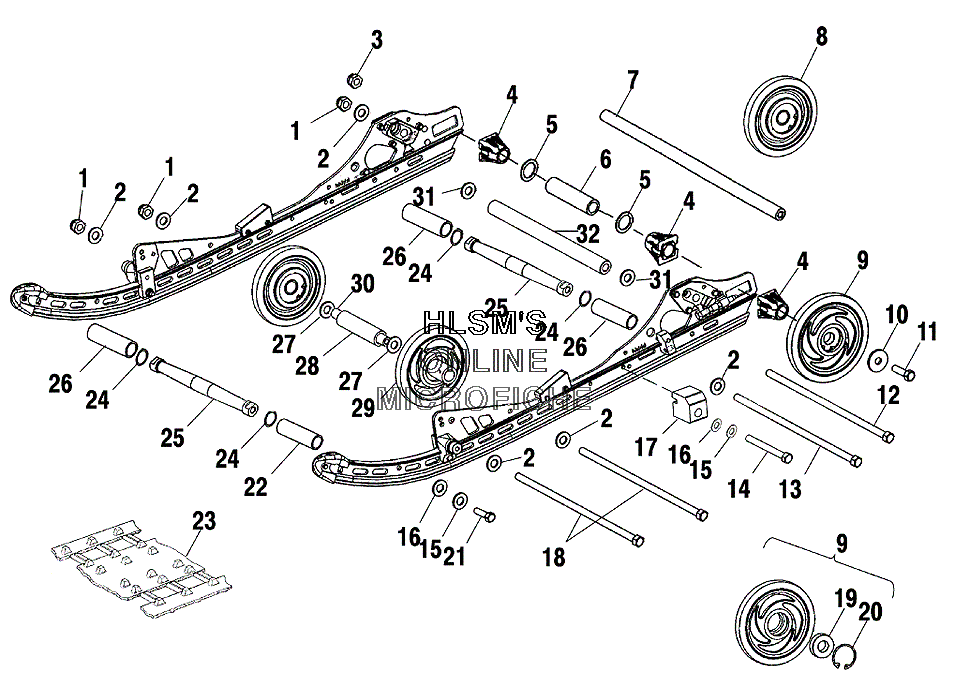

SUSPENSION - REAR (M-10) для Polaris SUPERSPORT M-10 X F/O (S03NF5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27555806 WASHER, FLATWASHER, FLAT
-
37547064 NUT, NYLOKNUT, NYLOK
-
45432535 SPACER IDLERSPACER IDLER
-
57555918 BUSHINGBUSHING
-
65333285 SPACER IDLER, LONGSPACER IDLER, LONG
-
75020744 SHAFT, IDLERSHAFT, IDLER
-
81590307 WHEEL, ASSY IDLER 6.0 OD PLAINWHEEL, ASSY IDLER 6.0 OD PLAIN
-
91590305-293 WHEEL IDLER, SCROLLED (INDY RED)WHEEL IDLER, SCROLLED (INDY RED)
-
91590305-216 WHEEL, IDLER GENII (YELLOW)WHEEL, IDLER GENII (YELLOW)
-
91590305-312 WHEEL, IDLER SCROLLED ASSYWHEEL, IDLER SCROLLED ASSY
-
107556130 WASHERWASHER
-
117517731 BOLT,BOLT,
-
127517896 SCREW HEXAGON HEAD CAP-YSCREW HEXAGON HEAD CAP-Y
-
137517821 SCREW HEXAGON HEAD CAP-YSCREW HEXAGON HEAD CAP-Y
-
147517856 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
157552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167556042 WASHER, FLATWASHER, FLAT
-
175132583 BLOCK SHOCK PIVOT ADJUSTBLOCK SHOCK PIVOT ADJUST
-
187517921 SCREW HEXAGON/LPSCREW HEXAGON/LP
-
193514384 BEARING NTNBEARING NTN
-
207710444 RING, RETAININGRING, RETAINING
-
217517857 SCREW HEXAGON/CAPSCREW HEXAGON/CAP
-
225132586 MOUNT LIMITER STRAP ATTACHOMETER (LOWER) (LIMITER, STRAP)MOUNT LIMITER STRAP ATTACHOMETER (LOWER) (LIMITER, STRAP)
-
235411994 TRACK, 121"X1" SHOCKWAVE SNOWTRACK, 121"X1" SHOCKWAVE SNOW
-
235222840 CLIP, GUIDECLIP, GUIDE
-
245411965 O-RINGO-RING
-
255132793 SHAFT TAPEREDSHAFT TAPERED
-
265333902 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
277556301 BUSHINGBUSHING
-
285330394 SPACER BOGIE (INNER)SPACER BOGIE (INNER)
-
291541530-293 WHEEL, ASSY (5.35, .75IDW/IN) (INDY RED)WHEEL, ASSY (5.35, .75IDW/IN) (INDY RED)
-
291541530-216 WHEEL, ASSY (5.35, .75IDW/IN) (S YELLOW)WHEEL, ASSY (5.35, .75IDW/IN) (S YELLOW)
-
291541530-312 WHEEL, ASSY (5.35, .75IDW/IN) (SCR BLUE)WHEEL, ASSY (5.35, .75IDW/IN) (SCR BLUE)
-
305132490 SHAFTSHAFT
-
317558402 WASHER, FLATWASHER, FLAT
-
325333477-067 TUBE (BLACK)TUBE (BLACK)
