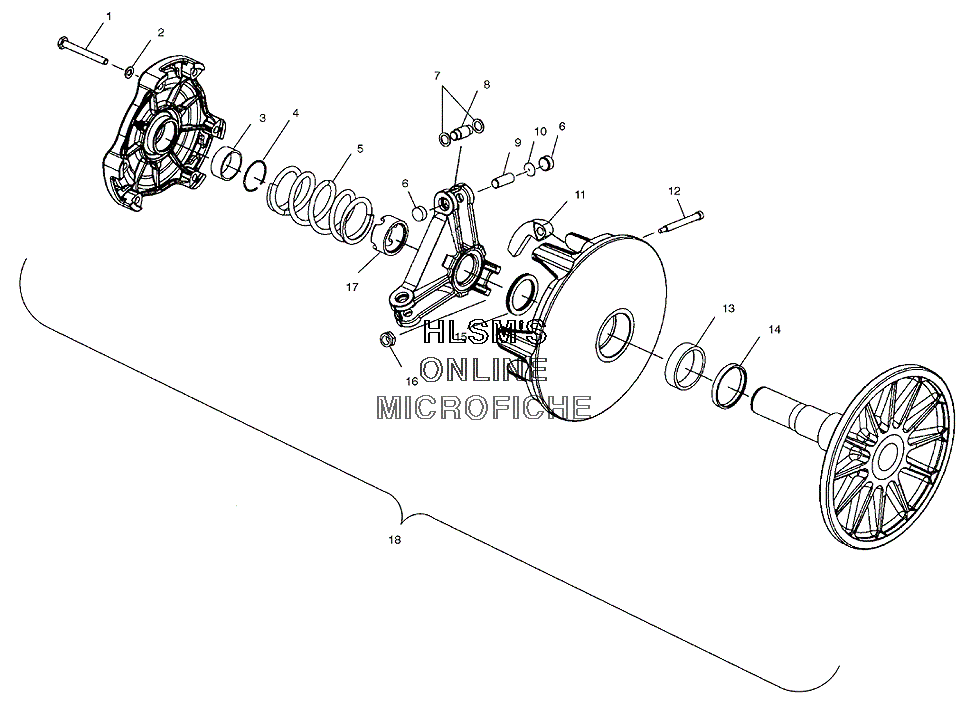

CLUTCH - DRIVE для Polaris SUPERSPORT M-10 F/O (S03NE5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING COVERRING, RETAINING COVER
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING, ASSYROLLER AND BUSHING, ASSY
-
95133079 PIN ROLLER, 1" SBNPIN ROLLER, 1" SBN
-
102200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
111321586 WT/BUSH.ASSYWT/BUSH.ASSY
-
127515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155210754 SPACER (.050MM)SPACER (.050MM)
-
155210753 SPACER (.032MM)SPACER (.032MM)
-
155210752 SPACER (.020MM)SPACER (.020MM)
-
167541906 NUT FLEXLOCNUT FLEXLOC
-
175020425 NUT, JAMNUT, JAM
-
181321699 CLUTCH, ASSY BASIC #69 (DRIVE) (INCL. ALL LESS 5, 11)CLUTCH, ASSY BASIC #69 (DRIVE) (INCL. ALL LESS 5, 11)
