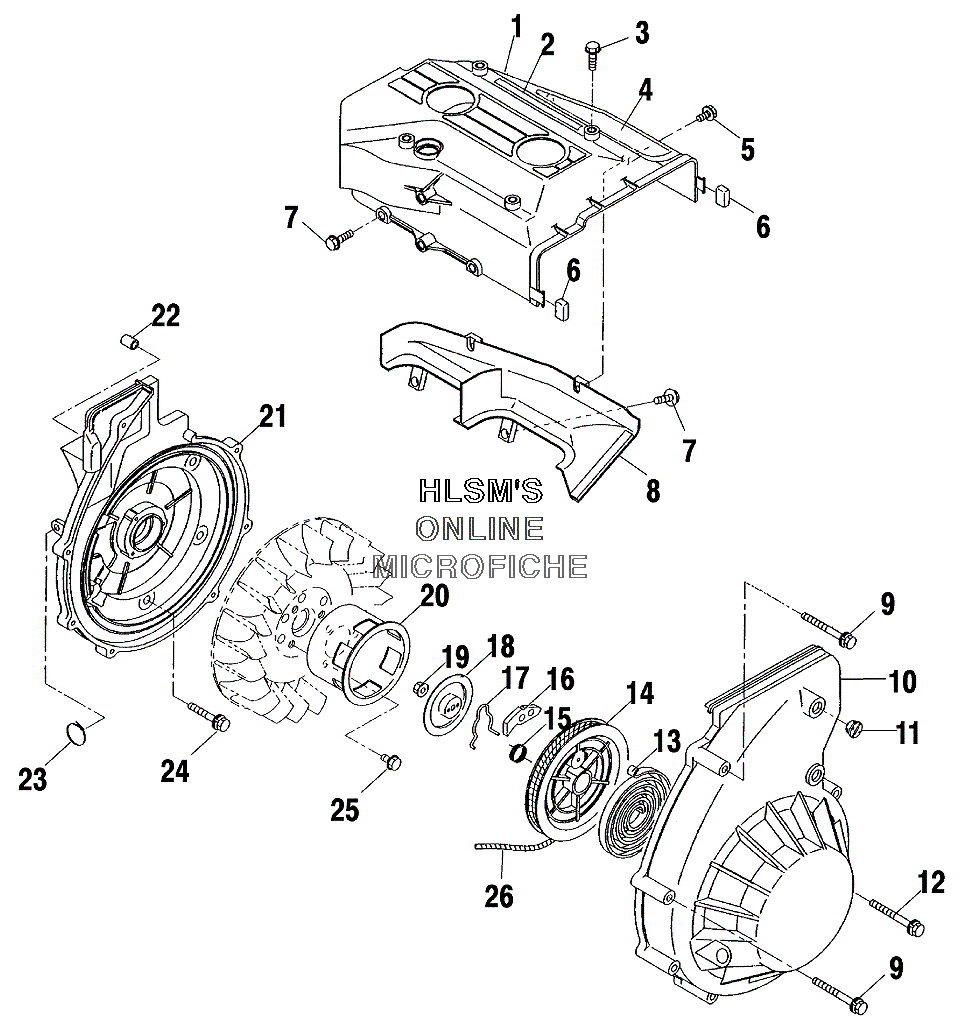

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris SUPERSPORT EDGE X F/O (S03NA5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
13086991 BAFFLE #1 CYLINDER, ASSYBAFFLE #1 CYLINDER, ASSY
-
27079511 DECAL "POLARIS" ENGINE SHROUDDECAL "POLARIS" ENGINE SHROUD
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
47079510 DECAL "550" ENGINE SHROUDDECAL "550" ENGINE SHROUD
-
53085693 BOLT, FLANGEBOLT, FLANGE
-
63085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
73085694 BOLT, FLANGEBOLT, FLANGE
-
83085691 BAFFLE #2, CYLINDERBAFFLE #2, CYLINDER
-
93083550 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
103087179 RECOIL STARTER (INCL. 13-19, 26) (IF BUILT BEFORE 8/13/02)RECOIL STARTER (INCL. 13-19, 26) (IF BUILT BEFORE 8/13/02)
-
103087206 STARTER RECOIL, ASSY (INCL. 13-19, 26) (IF BUILT AFTER 8/13/02)STARTER RECOIL, ASSY (INCL. 13-19, 26) (IF BUILT AFTER 8/13/02)
-
103087180 STARTER CASE COMPLETESTARTER CASE COMPLETE
-
113086792 PLUG, RUBBERPLUG, RUBBER
-
123082030 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
133083376 SPRING, SPIRALSPRING, SPIRAL
-
143083377 REEL, ASSYREEL, ASSY
-
153083463 SPRING, RETURNSPRING, RETURN
-
163083378 RATCHET (IF BUILT BEFORE 8/13/02)RATCHET (IF BUILT BEFORE 8/13/02)
-
163087207 RATCHET (IF BUILT AFTER 8/13/02)RATCHET (IF BUILT AFTER 8/13/02)
-
173083379 SPRING, FRICTIONSPRING, FRICTION
-
183083464 PLATE, FRICTIONPLATE, FRICTION
-
193083381 NUT, FLANGENUT, FLANGE
-
203087181 PULLEY, STARTERPULLEY, STARTER
-
213087020 HOUSING BLOWERHOUSING BLOWER
-
223084857 KNOCK, PIPEKNOCK, PIPE
-
233084823 BAND, WIREBAND, WIRE
-
243084225 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
253085688 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
262870621 ROPE, NYL. STARTER (100FT)ROPE, NYL. STARTER (100FT)
