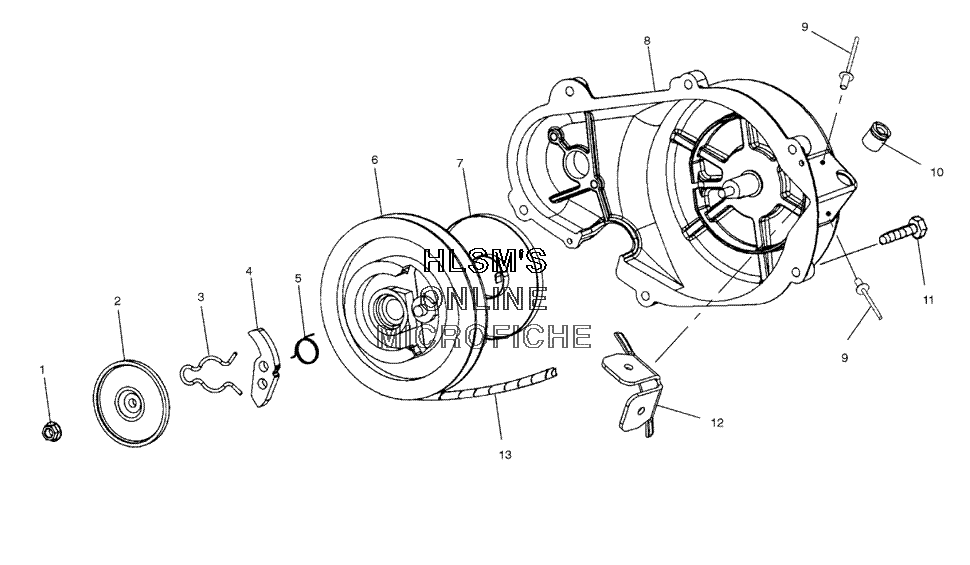

STARTER - RECOIL ASSEMBLY для Polaris 800 SKS (S03NS8CS/A) - 2003 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3040163 NUT, FLANGE
    NUT, FLANGE
  • 2
    3040164 PLATE, FRICTION
    PLATE, FRICTION
  • 3
    3040167 SPRING, FRICTION
    SPRING, FRICTION
  • 4
    5246108 RATCHET - PAWL ELEC REV
    RATCHET - PAWL ELEC REV
  • 5
    3040166 SPRING, RETURN
    SPRING, RETURN
  • 6
    3040168 REEL
    REEL
  • 7
    3040170 SPRING, SPIRAL
    SPRING, SPIRAL
  • 8
    3040160 ASSY. - RECOIL E/R, SHEILD
    ASSY. - RECOIL E/R, SHEILD
  • 9
    7661148 RIVET - ALUM POP
    RIVET - ALUM POP
  • 10
    3040171 GUIDE - ROPE
    GUIDE - ROPE
  • 11
    7517998 SCREW
    SCREW
  • 12
    5246218 SHIELD - RECOIL ROPE
    SHIELD - RECOIL ROPE
  • 13
    3040169 ROPE, STARTER
    ROPE, STARTER
  • 13
    1202408 ASSY. - RECOIL E/R, SHEILD (INCL. 1 - 10, 13 & STARTING PULLEY)
    ASSY. - RECOIL E/R, SHEILD (INCL. 1 - 10, 13 & STARTING PULLEY)
