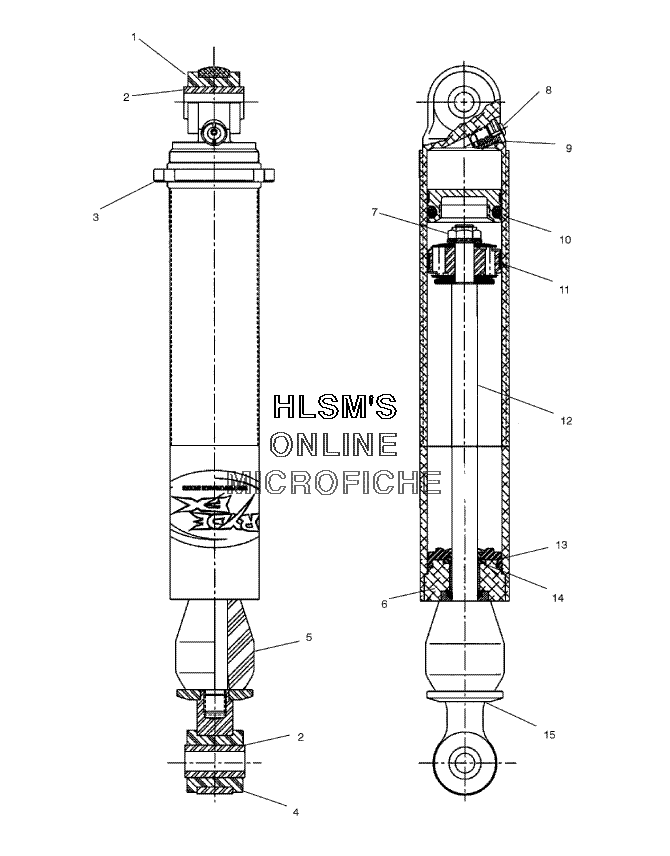

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 800 RMK 151 STOCK (S03NL8CSA) - 2003 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700079 SLEEVESLEEVE
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700072 BUSHINGBUSHING
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700007 CYL HEAD ASSY.(1/2" ROD)CYL HEAD ASSY.(1/2" ROD)
-
71700057 NUTNUT
-
81700056 VALVE SCREWVALVE SCREW
-
91700076 PRESS-VALVE ASSY.PRESS-VALVE ASSY.
-
91700047 PRESS-VALVE O-RINGPRESS-VALVE O-RING
-
101700023 IFPIFP
-
101700032 IFP WEAR BANDIFP WEAR BAND
-
101700048 IFP-O-RINGIFP-O-RING
-
111700108 BANDED PISTON .086" ORIFICEBANDED PISTON .086" ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP-OUT WASHERTOP-OUT WASHER
-
111700078 BACK-UP WASHERBACK-UP WASHER
-
121700025 SHAFTSHAFT
-
131700022 CAP SEALCAP SEAL
-
141700021 ROD SEALROD SEAL
-
151700010 MOUNT, UPPERMOUNT, UPPER
-
157042059 SHOCK-IFS, IFPSHOCK-IFS, IFP
