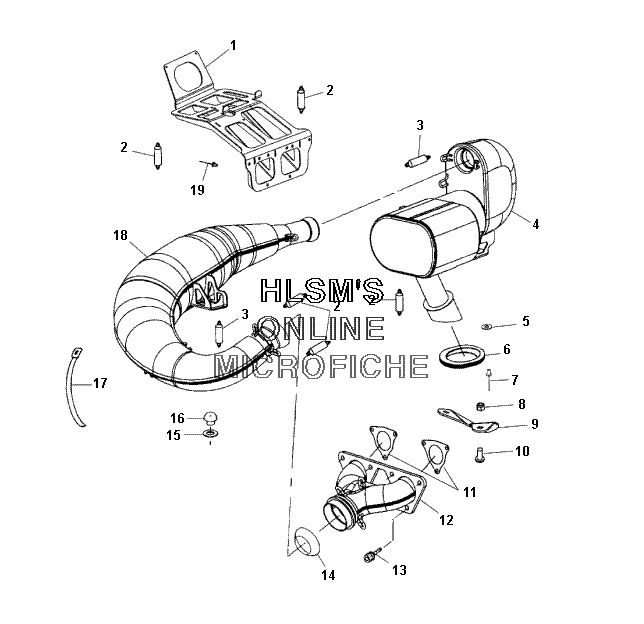

EXHAUST SYSTEM для Polaris 800 RMK 151 F/O (S03NL8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1261235-029 WELD-BRKT CHASSIS/RESONATOR,BK
    WELD-BRKT CHASSIS/RESONATOR,BK
  • 2
    7041687 SPRING
    SPRING
  • 3
    7042029 SPRING
    SPRING
  • 4
    1261177-029 WELD-RESONATOR (BLACK)
    WELD-RESONATOR (BLACK)
  • 5
    7555904 WASHER
    WASHER
  • 6
    5411684 BOOT, EXHAUST, OUTLET
    BOOT, EXHAUST, OUTLET
  • 7
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 8
    7542321 NUT, FLANGE
    NUT, FLANGE
  • 9
    5243929 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 10
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 11
    5811799 GASKET-EXHAUST
    GASKET-EXHAUST
  • 12
    1261124-029 WELD-MANIFOLD (BLACK)
    WELD-MANIFOLD (BLACK)
  • 13
    7517322 SCREW
    SCREW
  • 14
    3610046 SEAL, EXH.SOCKET
    SEAL, EXH.SOCKET
  • 15
    7556004 WASHER
    WASHER
  • 16
    5411576 DAMPENER-VIBRATION, W/RIBS
    DAMPENER-VIBRATION, W/RIBS
  • 17
    7080740 CLAMP-WORM DRIVE, .44WX3.69DIA (.44 X 3.69)
    CLAMP-WORM DRIVE, .44WX3.69DIA (.44 X 3.69)
  • 17
    7080741 CLAMP-WORM DRIVE, .44WX4.25DIA (.44 X 4.25)
    CLAMP-WORM DRIVE, .44WX4.25DIA (.44 X 4.25)
  • 17
    7080742 CLAMP-WORM DRIVE, .44WX6.38DIA (.44 X 6.38)
    CLAMP-WORM DRIVE, .44WX6.38DIA (.44 X 6.38)
  • 18
    1261123 TUNED PIPE ASSY. (INCL. 17)
    TUNED PIPE ASSY. (INCL. 17)
  • 18
    1261122-029 WELD-TUNED PIPE (BLACK)
    WELD-TUNED PIPE (BLACK)
  • 18
    5245929 COVER-TUNED PIPE, TOP
    COVER-TUNED PIPE, TOP
  • 18
    5245930 COVER-TUNED PIPE, BOTTOM
    COVER-TUNED PIPE, BOTTOM
  • 18
    5830215 MATTE-SOUND, TOP
    MATTE-SOUND, TOP
  • 18
    5830216 MATTE-SOUND, BOTTOM
    MATTE-SOUND, BOTTOM
  • 19
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
