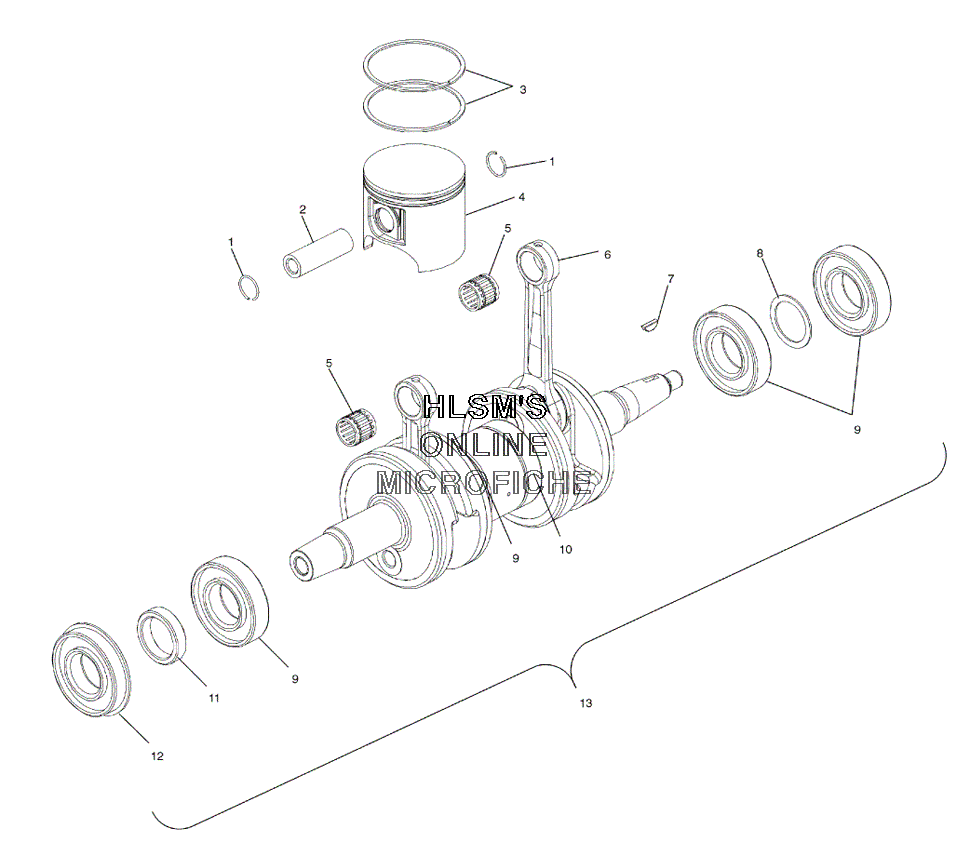

PISTON AND CRANKSHAFT для Polaris 700 PRO X (S03NX7CS) - 2003 года выпуска`
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON, 20MM., (2)CIRCLIP, PISTON, 20MM., (2)
-
32200895 KIT, PISTON RINGS, 81MMKIT, PISTON RINGS, 81MM
-
42202237 KIT - PISTON ASSY. 81MM 700 GRAFL (INCL. 1, 2, 3)KIT - PISTON ASSY. 81MM 700 GRAFL (INCL. 1, 2, 3)
-
53584001 BEARINGBEARING
-
62201953 KIT - CONN ROD 5131087 W/BUR PIN (INCL. ROD, PIN, BEARING, WASHERS)KIT - CONN ROD 5131087 W/BUR PIN (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
103514318 BEARING, BALLBEARING, BALL
-
115131899 SPACERSPACER
-
123514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
132201848 KIT - CRANKSHAFT 2@68X136 BUR (INCL. 8 - 12)KIT - CRANKSHAFT 2@68X136 BUR (INCL. 8 - 12)
