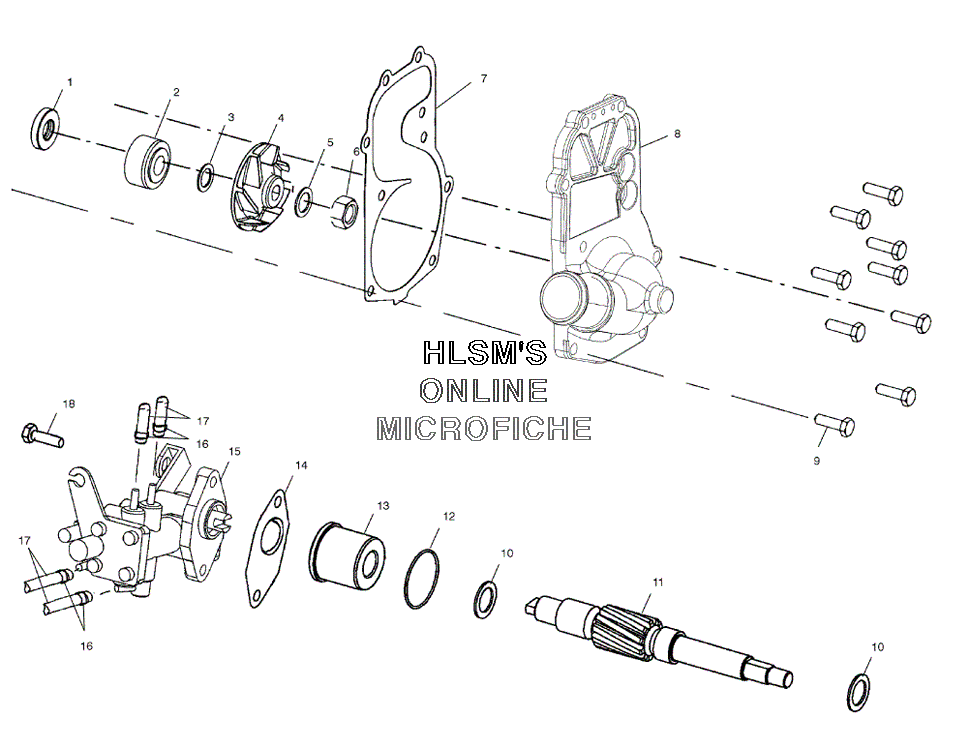

WATER PUMP/OIL PUMP для Polaris 600 XC SP EDGE M-10 F/O (S03NF6ES) - 2003 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S, ARSSEAL, TYPE S, ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLAT, SS.WASHER, FLAT, SS.
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
-
67546804 NUT, HEX, , NYLOKNUT, HEX, , NYLOK
-
75811601 GASKET, WATERPUMP CVR.GASKET, WATERPUMP CVR.
-
85630920 COVER - WATERPUMP, HI FLOWCOVER - WATERPUMP, HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O - RINGO - RING
-
135010391 BRNG, PUMP SHAFT, FLANGEDBRNG, PUMP SHAFT, FLANGED
-
145811789 GASKETGASKET
-
152540097 OIL PUMP ASSY.OIL PUMP ASSY.
-
167080603 CLAMPCLAMP
-
178450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
187517277 SCREWSCREW
